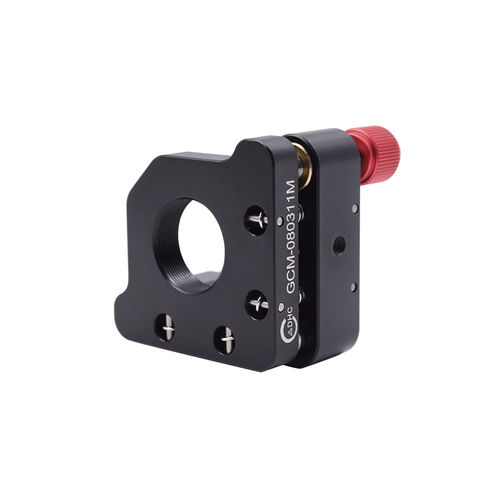

Optical filter/mirror/lens holder GCM-080311M

for mounting

Daheng Optics' GCM-080311M objective lens mount features a standard RMS (4/5"-36) objective lens thread at its center. Through adjustments via two ultra-fine threaded pairs, lenses or mirrors can achieve precise angular adjustment in both pitch and yaw directions, with a single-axis adjustment range of ±4°. The end face of the threaded pair knob is equipped with a hexagon socket, which can be adjusted using a 2mm hexagon socket wrench. This component can be fixed to other mounts via the M6 threaded countersunk hole or M4 threaded hole on the side of the lens mount. Mounts RMS(4/5"-36) Standard Objective Lens Threaded Pairs：M6×0.25 Angular Range: ±4°
