| Embraco manufactures 12 series of compressors and hundreds of models suited to the requirements of different markets, as well as condensing units for different applications. |
|
L, P Ranges
High Efficiency versions
Range: 4 to 16.14 cc
Refrigerants: R134a, R404A, R290, R507, R22
The most efficient high efficiency range w/ propane & isobutane |
|
DC Range - 12V
Compressors for mobile applications / Exceptionally silent /
VDE homologation approved / Ready to work under heavy duty operation conditions / 12-42 V DC / 200-240 V / 50-60Hz
Refrigerant: R134a
|
|
X Range
High reliability & efficiency
New design to work under heavy duty operation conditions
Ranges: 16.00 to 23.00 cc
Refrigerants: R134a, R404A, R290, R407C, R507, R22
|
|
D Range
Very compact design / Low weight, extra silent
Range: 2.4 to 4.03 cc
Refrigerants: R134a, R600a
|
|
- Designed mainly for commercial refrigeration and air conditioning applications
- Broad range of application in L/M/HBP
- Available for R 134a, R 12, R 502, R 22, R 404a, and R 407C refrigerants
- Rugged design
- Available for oil or fan cooling versions, high and low starting torque |
|
The technology of the Variable Capacity Compressor offers:
- Flexible control allows customized solutions through the use of highly advanced electronic unit;
- Choice of operation speed ranges;
- Continuous automatic speed adjustment within selected range;
- Application with R 134a and R 600a;
- Available in 115 and 220 V;
- Available in 50 - 60 Hz frequency versions;
- Speed from 1600 to 4500 RPM;
- Recommended for domestic appliances. |
|
Hallmark offers two different models of semi-hermetic compressor, HA air cooled and HG suction gas cooled which can be supplied as a compressor unit and air cooled condensing unit.

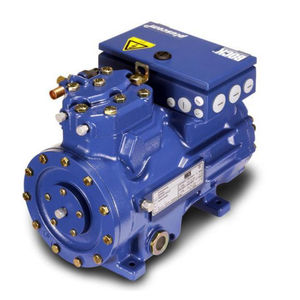

HG (Semi-hermetic Gas Cooled)
The semi-hermetic gas cooled range is renowned for its quiet running, ease of maintenance, efficiency and reliability. Suitable for conventional or chlorine-free HFC refrigerants, the HG range offers state-of-the-art suction gas-cooled compressor technology.
HG models available:
-HG single-stage
-HGZ two stage
-HG8/4 polar
-DHG duplex compressor
-SHG compressor units with receiver
-SHG condenser sets, air cooled
HA (Semi-hermetic air cooled)
The semi-hermetic air cooled range is ideal for deep freeze applications using R22 and R404a.
HA models available:
-HA single-stage
-DHA duplex compressor
-SHA compressor units with receiver
-SHA condenser sets, air cooled
|
|
The latest range from Hallmark is the Pluscom series, which are small-capacity compressors for shops and counter installation with extremely compact dimensions and quiet operation.
The compressors can be supplied with fully variable speed frequency converter technology mounted directly on the compressor (option).
Pluscom range:
-HA 22P
-HG 22P
-HA 34P
-HG 34P
Pluscom main features:
-High refrigeration capacity with minimal energy requirement
-Wide scope of application without additional refrigeration
-Water resistant and long lifetime driving gear
-Reliable and safe oil supply
-Quiet and vibration free
|
|
Overview of HSS Semi-hermetic compressors
Models available
HSS 3100 5 sizes: 3118, 3120, 3122 & 3123
Displacement at 50Hz: 175/213/250/292/336 m3/h
HSS 3200 4 sizes: 3216, 3218, 3220 & 3221
Displacement at 50Hz: 286/343/415/469 m3/h
HSS 4200 4 sizes: 4221, 4222, 4223 & 4224
Displacement at 50Hz: 508/616/722/808 m3/h
Designed for high temperature applications
-Designed for incorporation into factory built chillers
-Designed for compressor packs using HFC refrigerants or R22
-Capable of operating without cooling over a limited range
-Can be inverter controlled
Comprises of the following:
-Semi-hermetic single screw design
-Optimised for R134a, R407c & R22
-Suction strainer
-Stepless capacity control system (2 built in solenoid valves)
-Discharge stop valve
-Internal relief valve
-Integral oil separator (HSS 3100 & HSS 3200)
-Flanged oil separator (HSS 4200)
-Discharge check valve
-Suction flange with tail & joint
-Liquid injection adapter
-Sight glass (x2)
-Oil charge
-2 pole electric motor with sensor protection
-Electronic protection (INT 69TM)
-Economiser connection
|
|
