High Pressure Filters-Worldline 100 up to 21.1 gpm, up to 6525 psi, In-line mounting, HD 049/HD 069
Application
In the high pressure circuits of hydraulic systems.
Performance features
Protection
against wear: By means of filter elements that, in full-flow filtration,
meet even the highest demands regarding cleanliness
classes. Protection against malfunction: Through installation near to the control valves or other
expensive components. The specific determined flow rate
guarantees a closed by-pass valve even at < 930 SUS
(cold start condition).
Filter elements
Flow direction from outside to center. The star-shaped pleating of the filter
material results in:
- large filter surfaces
- low pressure drop
- high dirt-holding capacities
- long service life
|
|
BELL In-line Filters grant a high protection to the most delicate components of an oleodinamic system. Placed in the site under pressure, they keep the particles sucked or produced by the pump up to a size of 10 micron.
These filters are normally applied in addition to the standard filters in suction or release, as a last barrier of protection before the entrance in directional valves, flow regulating valves and all those components which require a high grade of absolute filtering.
The body is made in a treated aluminium alloy to obtain a minimum dimension and weight.
The filtering element, instead, is made in synthered bronze with a conic shape to resist to high pressure without collapsing.
|
|

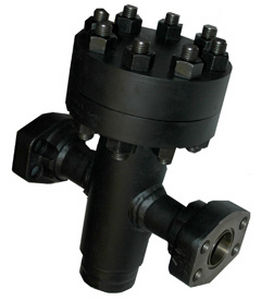

High Pressure Single Strainer - Simplex T Type
The Simplex T Type extends the range of S type filters to higher pressures, suitable for both liquid and gas applications and available with bolted or quick release type covers.
Standard Features
Quick release covers eliminate the need for tools for maintenance.
Designed for pressure ratings up to ANSI class 300lb (900 PSIG).
Flow is from inside to outside the basket to trap and retain debris.
High basket area to pipeline CSA ratio of over 10:1 in most cases.
Can be fitted with coarse perforated baskets (2mm as standard) or fine stainless steel mesh inserts to give particle removal down to 50 microns.
Disposable depth type cartridges are available for filtration to 5~10 micron for liquid and 1~2 micron on gases.
|
|
98 Series Filters - High Pressure (10 micron)
98-1110 Series T-Type Filter:
Designed for high flow applications
Features cleanable element
Available options: electrical, visual, bypass valve, visual pressure differential indicator, bypass relief valve, electrical bypass
|
|

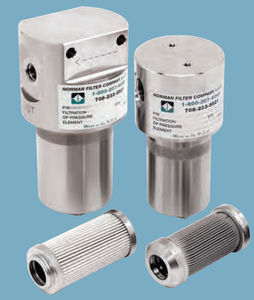

High Pressure Mini Tee-Type 4100 Series Filter
The 4100 series is a compact , lightweight tee-type filter that provides reliable and economical protection for critical testing equipment, valves, gauges and instrumentation. Designed with high dirt holding capacity pleated elements.
Elements
- No media migration due to the use of 304 stainless steel microweave wire mesh.
- Stainless Steel microweave mesh 9 micron ratings from 10 to 300 micron.
- Stainless Steel Sintered .5, 1, 3 and 7 micron absolute.
- Random Metal Fiber (metal fiber felt) available in 3, 5, 10, 25, 40 & 75 micron.
- Microglass ratings 3, 5 and 10 micron absolute
|
|
|
Our High Pressure series filters are designed for pressure line applications where design flexibility is required. Besides the standard T-Type and/or L-Type porting, we offer manifold type filters to provide compact and direct mount installation. This series is rated for flow from 50 to 150 gpm and a working pressure range from 4500 psi to 6000 psi.
|
|
Applications
Filtration lubricating oils and hydraulic fluids in engines and machines
Advantages
OEM quality
Proven technology
|
|
|
ServoSaver filters offer point-of-use filtration for some of the most sensitive hydraulic valves that there are, servo/proportional valves. Complete protection is provided by non-bypass filters equipped with high collapse strength elements installed directly at the valve. The ServoSaver is designed specifically for this use and is not an adaption of an in-line filter intended for bypass filtration.
|
|
Ikron %u201CFluid Filtration%u201D from Casappa %u201CFluid Power Design%u201D
An accurate filtration expands the life of all components and improves the overall efficiency of your hydraulic system.
Suction filters
Return filters
In line filters spin-on type
In line medium and high pressure filters
Accessories
|
|
Pressure Filters SF
STAUFF pressure filters are designed for the most demanding applications. They come in a variety of sizes, configurations and with numerous porting options.
* operating pressure to 420 bar
* flows to 1320 l/min
* BSP, NPT, SAE o-ring ports
or SAE flange (codes 61/62)
* filter head made of spheroidal graphite cast iron,
filter bowl made of cold drawn steel
* wide range of valve options
* various element types and media available
* standard bowls or top-loading bowls available
* visual, electrical and visual-electrical indicators
|
|
|
|
|
|
General description
HOFFMANN pressure filters cleanse coolants such as oils and emulsions of:
- metallic particles
- rubber
- plastics
- glass
The filtering capacity for each filter vessel lies between 150 and 200 l/min.
Soiled coolant is pumped into one, or several simultaneously operating pressure filter vessels. These vessels are equipped with nylon support filters and disposable paper filter bags. The soiled coolant penetrates these filter elements from the inside out, and the particles of impurities are trapped in the filter bag.
The so-called filter cake is formed as filtered impurities build up in the pressure filter vessel filter bag. This filter cake represents a high-performance filtering layer that enhances the filtering effect even more. When the filter cake reaches a defined size the throughput capacity of the filter declines and the filter must then be cleaned. Changeover of the facility to the standby pressure filter vessel is made when the signal for cleaning the soiled filter vessel is issued.
|
|
| ... products without technical information |
| |
|
The ideal Standalone high pressure coolant system that can deliver up to 140 Bar of filtered coolant for all types of machines. The incorporated coolant transfer pump and on-board coolant reservoir, along with the optional, internal heat exchanger, ensures maximum performance and reliability.
|
|
|
The Losma Liquid Filtration Range is made up of various types of filter to cope with all eventualities. Losma's expertise in this area shows in all its products, from the simplest of cloth filters to more complex integrated systems with several filtration stages. This know-how also means that tailor-made solutions and one-off designs can be proposed for special customer requirements. The Liquid Filtration Range comprises seven product lines, DETEX, DEMAG, DECOM, RIVER, SKIM; SPRING and MASTER Series which can all be equipped with refrigeration systems to order.
|
|
Thanks to the fine degree of filtration obtained (up to 5 microns) the potential of machine-tools is enhanced.
With the NEW ECO GRINDING environment-friendly plants, we have succeeded in maintaining all the advantages of a cartridge filtering system, eliminating the disadvantages.
Lubri-refrigerant LASTING a whole year which means savings on oil and for the disposal of spent lubri-refrigerants
|
|
Series 6610 line filters are designed for line mounting in tubing with compression-type fittings. They are ideal for filtering liquids and gases to protect sensitive instruments.
Mott Series 6610 line filters are offered for three tube sizes, in a variety of media grades.
|
|
| ... products without technical information |
| |

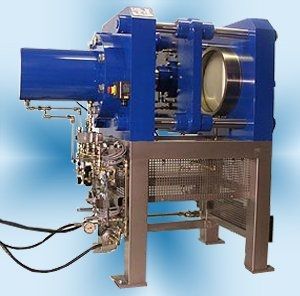

ALMATEC's high-pressure diaphragm pumps have been specially developed for charging filter presses with chemical wastes and special sludge.
With a driving pressure of max. 7 bar, the pumps of series AH build up a delivery pressure of 16 bar on account of the internal pressure boost. These genuine double-action pneumatic diaphragm pumps are available in three sizes with a maximum delivery volume of 4 m³/h (AH 15), 10 m³/h (AH 25) and 20 m³/h (AH 40).
All housing parts in contact with the product are made of PE UHMW. This polymer material is seven times more resistant to abrasion than PP. PE is also more resistant to wear than cast iron, aluminium and even steel.
|
|
|
|
