JDN trolleys are available for all hoists of the PROFI and M series:
- as manual trolleys (LN)
for pushing or pulling the trolleys by hand
- as reel chain trolleys (LH)
for moving the trolleys by unwinding the reel chain
- as motorised trolley (LM)
powered by an air motor
Standard Features:
- easy to install
- with anti-climb and anti-drop devices
- robust and with little maintenance
- able to negotiate curves
When only extremely low headroom is available we recommend the JDN low headroom trolleys or even the ultra-low monorail hoists where the air hoists are horizontally mounted.
|
|
GIS electric chain hoists
Quality products from own manufacturing series. Lifting capacity between 40 and 5000 kg. Standard top equipment with optimum safety devices such as contactor control 42 V, slipping clutch or limit switches for highest and lowest hook positions.
Benefits:
Maintenance
- reliable, also during extreme conditions
- easy to operate
- brake system practically maintenance free
- wear resistance of brake and clutch
Load capacity
- very high duty factor according to FEM ratings
- lifting heights up to 120 m or more
Construction
- well-balanced in every position
Motor
- very high duty factor and percentage operating factor without immediate overheating of the motor
Slipping clutch
- slipping clutch engineered against overload only
- maximum safety thanks to separate limit stops
Control system
- 42 V low voltage control on all models
- electrical limit switch for upper and lower hook positions as standard
|
|
|
|
|
|

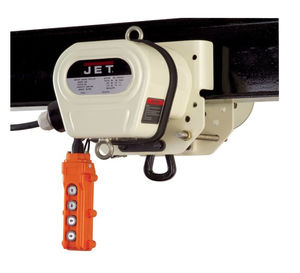

Electric Motor Driven Trolley
- Capacities 1/4 to 3 Tons
- Adjustable to fit wide range of beam flange widths
- Forms and integral hoist and trolley combination
- NEMA-4 push button, cable with steel strain relief-standard
- Single and two-speed models
- Choose a wide range of options and accessories
Steel frame side plates extend beyond the wheels for end stop contacts. Side plates have tapped holes for collector bracket attachment. Optional safety drop stops and bumpers.
- Wheels are forged heat-treated steel with contour tread for use on American Standard I-beam or wide flange beams.
- Traverse motor is 30-minute rated, totally enclosed non-ventilated with class "F" insulation and TAS as standard.
- Traverse gearing is housed in a heavy duty right angle drive reducer with output pinion meshing with machine cut wheel gears.
- Trolley controls are housed in a NEMA 1 enclosed panel mounted on the trolley side for easy access. The controls include a reversing contractor, terminal strip and NEMA 4X pendant station with hoist and trolley push-button controls as standard.
|
|
|
|
|
|
Air Chain Hoist under Monorail Trolley capacity up to 100 ton
For nearly 50 years, Ingersoll Rand has been serving the material handling needs of the following industries worldwide: automotive, appliance, aerospace, electronics, food, furniture, glass packaging, printing, pharmaceutical, sheet metal, textile, and warehousing.
The many years of manufacturing experience, ISO 9001 certification, and a 24 hour service network has created a unique ability to respond to your needs with the highest quality material handling solutions, technology, and services available in the world.
Ingersoll Rand has pioneered the development of pneumatic powered lifting, balancing, and handling equipment making us the world leader in the manufacturing of ergonomic, in process, manual assist, pick and place solutions.
With a solid commitment to research and development we have applied our expertise to introduce new products and technology which can also integrate the latest electronics and controls, such as the InteLIFT system: an electronically controlled, air powered intelligent handling solution.
By using Ingersoll Rand solutions created for your material handling needs, you can expect improved productivity mandated by a global economy. At the same time, you can expect ergonomic solutions which improve operator performance and avoid labor downtime due to health or safety issues in using automation.
|
|
Capacity: from 0.5 to 20 t
N.W./KGS: from 7 to 235
I-Beam Width: from 64-140 to 136-203
|
|
|
|
|
|
Air Motor Driven Trolley
Capacities 1/4 to 3 Ton
Adjustable to fit wide range of beam flange widths
Forms and integral hoist and trolley combination
8-Vane motor provides smooth starts, high control
Variable speed thru pendant throttle control
Choose a wide range of options and accessories

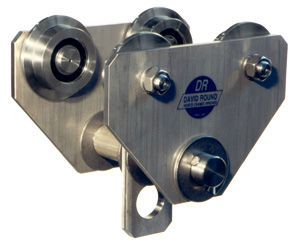

Rigid Mount Trolleys
Capacities: 1/4 to 6 ton
These Rigid Mount Trolleys are designed especially for use with lug suspended hoists. The trolleys attach directly to lug brackets on hoists, thereby forming integral trolley-hoist combinations, offering close headroom dimensions-making the trolley-hoist ideal for hoisting applications where distance from floor to Ibeam is limited.
The trolleys are of all steel construction to provide maximum strength.Wheels have hardened treads, insuring long life, and operate on ball bearings for easy travel.
On hand geared models, the hand chain operated wheel turns a pinion which meshes with wheel gears for ease of operation and accurate spotting. The chain guide keeps the chain aligned with the wheel and helps prevent fouling. The wheel gears and drive pinion have machine cut teeth. Anti-tilt rollers are provided on hand geared trolleys, as well as the 1-ton push type for extended hand chain wheel hoist, to eliminate tilting of trolley on beam when operating with light load or without load.
|
|
If your load is particularly heavy, we will make things easy for you.
Our CT trolleys are renowned for outstanding reliability and low maintenance costs. They have been specifically designed to suit modern control systems with frequency converters.
The latest vector control devices allow for simple and safe operation. Our CT trolleys are of a compact lightweight design and enhance the working environment. The standard model features a two-rope hoist that does away with excessive hook travel.
|
|
GIS electric chain hoists
Quality products from own manufacturing series. Lifting capacity between 40 and 5000 kg. Standard top equipment with optimum safety devices such as contactor control 42 V, slipping clutch or limit switches for highest and lowest hook positions.
Benefits:
Maintenance
- reliable, also during extreme conditions
- easy to operate
- brake system practically maintenance free
- wear resistance of brake and clutch
Load capacity
- very high duty factor according to FEM ratings
- lifting heights up to 120 m or more
Construction
- well-balanced in every position
Motor
- very high duty factor and percentage operating factor without immediate overheating of the motor
Slipping clutch
- slipping clutch engineered against overload only
- maximum safety thanks to separate limit stops
Control system
- 42 V low voltage control on all models
- electrical limit switch for upper and lower hook positions as standard
|
|

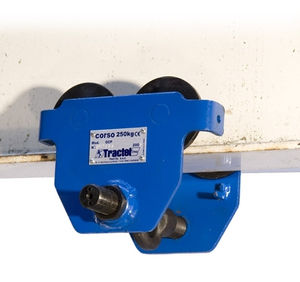

Push and Hand-Geared Trolleys
Capacities 1/4 - 25 tons
- Heavy rolled steel side frames extend beyond the wheels providing superior strength and added protection for trackwheels
- Thick section steel clevis suspended from steel equalizer pin. Alloy steel axles and equalizer pins are heat treated for maximum strength and wear life.
- Trolley wheels are fully machined from alloy cast iron and hardened for high strength and long service life. Units 1/4 through 16 tons employ universal wheel treads for use on flat or tapered beam flanges. 25 ton model operates on American Standard I-beams with tapered flanges. For patented track, consult factory.
- Lifetime lubricated, precision ball bearings standard on units through 3 ton capacity. 4 ton trolleys and greater feature eight, sealed Timken, tapered roller bearings and grease fittings.
- On hand-geared models, a hand chain operated wheel turns a machined steel drive pinion, engaging the two geared wheels.
|
|
|
|
|
|
STAHL CraneSystems's ST chain hoist programme is one of the most striking and wide-ranging on offer in the world. In use in thousands of applications for decades, modernised and optimised over and over again, the STAHL CraneSystems chain hoist is a classic. The ST series is available in 12 S.W.L. ranges from 125 kg to 5,000 kg.
It can be used as a stationary hoist with a suspension hook, with rigid mounting, with push or electric trolley, and is particularly suitable for rugged industrial applications.
The innovative and pioneering chain hoist design offers considerable economic advantages. The extremely short headroom available as an alternative to every type of chain hoist optimises the effective hook height and reduces wear on the chain. STAHL CraneSystems's ST chain hoist programme is also available in explosion-protected design for Zone 1 and Zone 2 and Zone 21 und Zone 22. STAHL CraneSystems was the first hoist manufacturer to implement the ATEX regulations in the whole chain hoist programme.
|
|
|
|
|
|
STAHL CraneSystems's ST chain hoist programme is one of the most striking and wide-ranging on offer in the world. In use in thousands of applications for decades, modernised and optimised over and over again, the STAHL CraneSystems chain hoist is a classic. The ST series is available in 12 S.W.L. ranges from 125 kg to 5,000 kg.
It can be used as a stationary hoist with a suspension hook, with rigid mounting, with push or electric trolley, and is particularly suitable for rugged industrial applications.
The innovative and pioneering chain hoist design offers considerable economic advantages. The extremely short headroom available as an alternative to every type of chain hoist optimises the effective hook height and reduces wear on the chain. STAHL CraneSystems's ST chain hoist programme is also available in explosion-protected design for Zone 1 and Zone 2 and Zone 21 und Zone 22. STAHL CraneSystems was the first hoist manufacturer to implement the ATEX regulations in the whole chain hoist programme.
|
|
