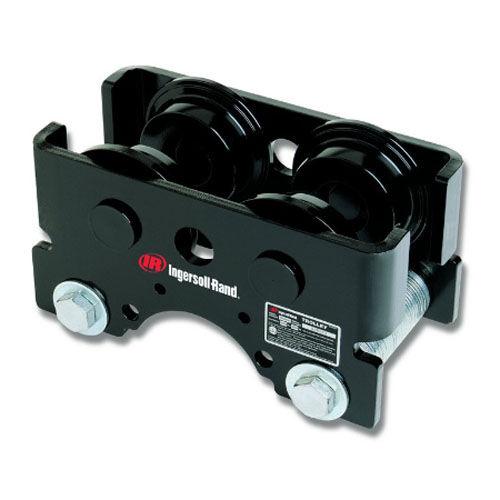

Motorized hoist trolley TIR6600

beam mounted

1/4 - 3 Metric ton Capacity TIR trolleys are supplied as standard equipment for MLK, HLK and Palair hoists when specified. The TIR trolley may also be used as a hook-on trolley with any hoist. • Meets ANSI B30.16 for hoisting requirements - 5:1 safety factor (minimum). • All steel construction. • Universal wheels fit both flat and tapered beam flanges. • Rail sweeps are integral with the side plates. • Cast iron wheels roll easily on permanently greased sealed bearings. • 7 ft pendent control or 8 ft hand chain length. • Tight turning radius. • Standard 3 ton trolley fits 3-1/4 - 6 in. flange width, 6 ton a 4-1/4 - 7-1/4 in. flange width. • Modular trolley frame allows conversions for hook-on, plain rigid, geared and motorized configurations in the field. • Motorized trolley has automatic disc brake to control stopping. • Low air consumption uses only 35 scfm for motorized version.
