With a complete range of Touch Panel PCs, Industrial Panel PCs, and Industrial Flat Panel Monitors, Advantech offers a wide range of HMI products for industrial automation needs. By creating value-added, standard product solutions and by offering customization, Advantech can provide platforms to meet any requirement.
|
|
Features of full graphic-capability operator terminals for controls:
- Many PLCs supported,
- Temperature controllers & inverters directly connected to HMI via Modbus
- Friendly multiple languages supported to the end users
- Many available sizes like 12.1" color, 5.7" color & mono, 4.1" & 2.5"
mono
- Data logging, bar graphs, trends and alarms
- Animation: display/hide, flash, color changed
- Data entry and data display from /to PLC registers directly
- Free Windows based configuration software for all HMIs
- Upto 65535 screens in each project, pop-up screen and associated
screen supported
- Ladder programming (Soft PLC) supported in HMI and Ladder online
monitoring
- Screen security
- Floating point supported
- Ready made registers for Real Time Clock
- Unique Tag database for HMI and PLC registers
- 256 real-time alarms, and 30 or 2000 historical alarms
- Global & power-on tasks, list of predefined and screen tasks-before, while and after
- Ready made lamps, button, data entry, data display, trend, alarm,
bitmaps & meters
- Action for graphical objects from list of predefined tasks
- Ready made system coils for changing RTC data by sec,min, hour, day, month, year
- IP65 design, CE, cUL, UL certificates
|
|
Operating and monitoring with the PMI Pilz Machine Interface and PIT control and signal devices
Diagnostics and visualisation :
Pilz offers the most diverse range of systems to perform diagnostic and visualisation tasks, from the diagnostic device PMImicro diag through to powerful operator terminals with touchscreen, PMIvisu and PMIopen. So it's easy to implement customised, complete solutions that meet your requirement.
Control and signalling :
Selection of the correct control/signal device is a key factor for the safety of man and machine. Rely on a safe solution with Pilz E-STOP pushbuttons, muting lamps and manually operated control devices.
|
|
RAFI produces complete control panels and data entry systems including electronic circuitry and interfaces. We design our systems with special emphasis on reliable data input and convenient operation. A wide range of technological and design options enable RAFI to quickly implement individual solutions. For example, we utilise the following equipment for in-house production:
CAD development tools (3D)
Screen printing machines for the production of overlays
Sheet metal machining equipment for front panels
SMD and conventional assembly of printed circuit boards
Individual assembly and testing facilities
|
|
Whether you require an intricate device incorporating multimedia options, cursor control, and touch screen or perhaps just a single-station keypad, Advanced Input Systems is dedicated to providing end-to-end solutions. Rapidly and cost effectively.
Hybrid keyboards use a combination of two or more switch technologies. Hybrids are particularly useful when a high-speed typing array is combined with a large number of special function keys. These keyboards give our customers yet another way to differentiate their products from the competition and to meet the needs of their unique application.
|
|
The Arista ARP 2600 series touch screen HMI's deliver cost effective control solutions for a wide range of industrial environments. The dual drive configuration allows for fanless operations utilizing a CF Type II, or fan cooled operations utilizing up to a 120GB Industrial HDD.
ARP 2600 SERIES
Each model in the 2600 series is equipped with a 667MHz VIA EDEN processor. The ARP 2600 series units feature dual USB ports an a 10/100 Ethernet port. Each is available with resistive touchscreen.
+ ARP 2606 = 6.4"
+ ARP 2608 = 8.4"
+ ARP 2610 = 10.4"
+ ARP 2612 = 12.1"
+ ARP 2615 = 15"
|
|
Beijer Electronics H-series H-T80c/H-T100t, touchscreen panel with color STN/TFT LCD 7.5”/10.4” display
Display: Color STN LCD/ Color TFT LCD
Presentation form: 7.5”/10.4” (diagonal), 640 x 480 pxl
Keypad: 1 Menu key and 6 user-defined function keys
2 USB Hosts, 1 USB Device, CF-card
The H-series offers valuable HMI functionality at an affordable level. The series include keypad and touch screen interfaces and is available in seven different sizes from 3 to 10.4 inches. Offering three levels of functionality – Standard, Plus and Network – the H-series enables you to select and pay for what level of HMI technology you need.
|
|
|
For additional information please contact sales@nematron.net. An enhanced version of the PowerView 6000/8000 Series brings higher performance and greater hardware expansion capabilities to Operator Interface Terminal applications. The extensive communication support for a wide range of popular PLCs and Servo Controllers will allow simultaneous connection of up to 16 different controllers along, with Peer-to-Peer and Global variables functions. A comprehensive range of hardware interfaces are offered as standard and extend application support for USB, Compact Flash, Hard Disk, Bar Code Scanner, Wireless and many other devices. Free downloadable ViewBuilder 8000 configuration software supports all standard HMI functions, and includes macro, math and logic capability for advanced operations. Included with ViewBuilder is a subset of the popular Symbol Factory 2.0 graphics library, containing over 2,000 graphical objects. ViewBuilder 8000 takes full advantage of the PV8000s high resolution display with a wealth of application development tools. Enhanced graphics capability provides support for BMP, JPG, and both static and dynamic GIF file formats. The advanced object libraries containing bar graphs, trend displays, list & dropdown menus, user configurable shapes and engineering icons facilitate fast mimic and screen development reducing project implementation time. Alarm management, historical and real time event & trend functions bring performance and functionality typical of larger scale SCADA Systems to the PV-8000 Operator Interface Terminal. Ethernet, OPC Server (optional), and Serial are amongst the extensive Communication options.
|
|
Handypanel, AGP3000H range : 3 models, screen 5.7", colour or monochrome. A new generation of portable graphic operator interfaces for your mobile applications.
AGP3000H range:
- Screen 5.7"
- 3 models
- Colour TFT : 65536 colours / Colour STN : 4096 colours / monochrome : 16 shades of grey
- 8 MB FEPROM
- SIO x 1 / Ethernet / USB x 1 / CF card
- Designed for super portability with a lightweight, easy-to-use cable
- Emergency stop switch: to stop the machine when a circuit fault or other emergency occurs
- Three position device
- Dimensions : 224mmW x 174mmH x 87.1mmD
|
|
G3 SERIES: COMMUNICATION GATEWAY WITH HMI 2-IN-1
Red Lion's G3 operator interface panels give you complete HMI functionality for PLCs, motor drives and other communications-capable devices. With Ethernet as standard on all G3 models, you can network-enable any serial devices connected to the panel. In addition to the G3, Red Lion also offers Paradigm operator panels, plus message centers, slave displays and large digit displays in a variety of configurations.
"Legacy devices communicate with their own protocol," said Jesse Benefiel, Product Manager. The G3 HMI is the first to feature an integrated protocol converter that allows it to function as a center point of data gathering, converting disparate protocols while relaying all the data to a remote location. This makes the G3 an ideal tool to collect and move data, or control multiple devices including PLCs, PCs, drives, PID controllers and others, from anywhere in the world," added Benefiel.
SOME OF THE FEATURES AVAILABLE IN STANDARD ON G3'S:
- Web server enabled in few clicks
- Data logging on CF and FTP server/client function
- Multi com ports
- Protocol conversion ability (200 drivers included)
- Email/SMS messaging
- Security/Events/Data logging
- Pass-Through programming
...etc...
SOME OF CUSTOMER'S BENEFITS :
- Remote PLC reprogramming & Remote alarms = Remote Maintenance
- Reduction of down times
- Remote control & monitoring
- Development of raw protocol
...etc...
|
|
Discover the G315: much more than an HMI !
As with all G3 panels, the G315 arrives standard with an integrated protocol converter, allowing the HMI to act as a communication hub between any and all connected devices. Programmed via Red Lion Controls FREE Crimson™ 2.0 software, data exchange is achieved in seconds using the built-in driver list and drag and drop register mapping. Your PLCs can now communicate with any drive, SCADA and serial or Ethernet enabled devices.
“With integrated features such as multiple-protocol support, data logging and built in web and FTP servers, the G315 performs SCADA-like functionality—at a fraction of the cost,” said Jesse Benefiel, product manager, Red Lion HMI products.
Using the G315 integrated data logger, information can be recorded in “IT-Ready” CSV files on a CompactFlash card for further analysis or troubleshooting. In addition, the embedded Web Server provides remote viewing and control capability with no extra software required, just a simple web browser. Users can monitor and control their application or download data logs using HTTP or FTP access.
SOME FEATURES:
- 15-inch TFT Active Matrix 32K Color XGA 1024 X 768 Pixel LC
- 10-button keypad for on-screen menus
- Three front panel LED indicators
- Resistive Analog Touchscreen
- Up to 6 RS-232/422/485 Communications Ports
(2 RS-232 and 2 RS-422/485 on board, 1 RS-232 and 1 RS422/485
on Optional Communications Card)
- 10 Base T/100 Base-TX Ethernet Port Supports Multiple Protocols Simultaneously
- Built-in Web Server and FTP Server/Client
Accessories :
G3CN CANopen Option Card
G3DN DeviceNet Option Card
G3PB PROFIBUS Option Card
G3RS RS232/RS485 Option Card
|
|
HMIs & Displays
The scalable product line of the new HMI systems (Panel PCs, Micro Clients, Touch Panels)offers a wide range of processor capacities and display dimensions from 7.0" up to 19". The 100% industry-capable Panel PCs and displays meet toughest industrial requirements concerning shock, vibration and temperature resistance. However specific your requirements we supply you with semi- and full-customized Panel PCs and displays for your control and visualization applications.
|
|
|
Machines and systems must be safe and, most importantly, easy to operate. To meet these requirements, Lenze offers a graded and uniform range of products for your automation system - from text displays right up to high-resolution touch screens.
|
|
|

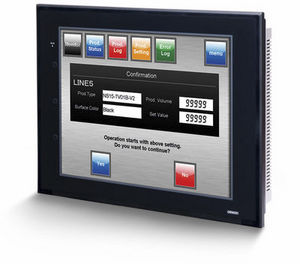

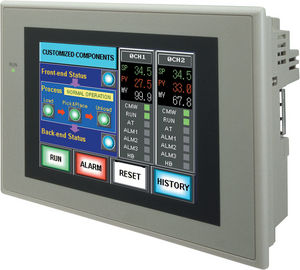

Omron provides high quality industrial rated HMI products. Broad range of screen sizes and functionality that allow the product to meet the needs of OEM's and /or end users.
|
|
The introduction of Micro-Browser Technology for operator panels is a major innovation step in the HMI technology. It brings the Web Look and Feel from the PC / Windows environment world to the small display sizes that are typically used in industrial, designed HMI devices for automation. It opens up new possibilities, shifting paradigms and breaking conventional limits
Saia® Web Panel with Micro-Browser technology are touchscreen operator panels displaying web pages. The Saia® S-Web-Editor is an easy and convenient way of creating dynamic web pages for the Saia® PCD.Web-Server. No knowledge of HTML or Java-programming is required. Pages are edited by positioning and configuring graphical objects, which have been specially designed for Saia® PCD devices.
|
|
Premium HMI, a new standard in HMI's
Premium HMI combines the reliability and ease of use of operator panels with the openness and flexibility of SCADA systems. This means that Premium HMI is able to meet the needs of those who use the operator panels, but who want advanced potential while still being open to all the standards of the PC-based world.
At the same time, it's the ideal product if you're currently using SCADA systems for display and you're for a product that's competitive also in terms of cost.
|
|
Hitachi offers a wide range of Operator Interfaces which allow you to choose the best technical and economical solution for your application. Eleven models are available, text and graphic displays as well as touch panels. They are all programmable with the same software. This means additional cost savings and fewer training requirements.
|
|
|
IDEC's operator interface products offer a perfect solution for your display needs. Bright LCD touch screens deliver crisp images, with powerful configuration tools that allow you to easily create a user-friendly and powerful system, enhancing your "Human Machine Interaction".
|
|
OP-panel
Machines with a Human factor are the answer at Trepko AB.
One of the reasons is our Operating Panel or OP panel which is available on several of our machines. We have put a lot of hard work into creating an interface which is easy to use and which gives added value to our customers. User friendliness saves both time and money.
Here are some good reasons why you should consider using an OP panel:
Low start-up costs.
Since the machines are easier to learn to operate, start-up costs are lower.
Increased availability.
The machine is easy to understand. This results in less downtime since sources of error can be avoided. Continuous operation is insured and the operator only needs to spend a small part of his time on each machine.
Easy to monitor.
The machine can be loaded with blanks and glue while running. It is very satisfying to operate a machine that is so easy to monitor and operate.
Reports.
Valuable information can be downloaded from the Operating Panel - information such as daily reports on how much the machine produced, how many batches were produced, etc.
Malfunction reports.
Faults can be traced quickly and easily. Breakdowns are reported and spare parts get delivered fast thanks to Trepko AB's smoothly running after sales service.
|
|
SattLine® is an advanced distributed control and supervisory (DCS) system based on Microsoft Windows. The hardware comprises two units: a control system and a workstation. The SattLine Workstation can be used for operator interface, maintenance and supervisory functions, as well as for program configuration and the creation of displays.
SCADA SYSTEM
SattGraph 5000 is a modular and open SCADA/HMI system. It is based on the SattGraph technique and runs on Microsoft Windows.
The Compact HMI 800 minimizes the effort involved in handling HMIs for PLCs and other types of controllers, from operations, maintenance and engineering perspectives.
|
|
Allen-Bradley graphic terminals from Rockwell Automation offer rugged electronic interface solutions in a variety of sizes and configurations. These robust devices are fully packaged (hardware, software, and communications) and tested for HMI (human machine interface) operation. Simply download your configured application file, set appropriate communication parameters, and connect the communication cable.
InView message displays from Rockwell Automation allow you to convey information and alarms plant-wide so personnel can move away from machines and attend to multiple tasks at once. You'll be able to communicate to all major industrial networks, making integration easy and allowing your message to be displayed to large groups of employees and /or from a distance. InView is the preferred message display for compatibility to all Rockwell Automation controllers ensuring a seamless integrated architecture.
|
|
|
The E1000 Series is an all new family of high performance, high functionality and flexible panel-mount HMI terminals. This family of terminals offers a comprehensive list of features and functions touniquely bridge the gap between high-end SCADA systems and dedicated HMIs. The E1000 Series is available in a wide range of sizes (6.5” to 15”) and formats (Keypad and Touch screen) to easily suit your application requirement.
|
|
Automation software download
Here we offer you the latest updates of our programming and process display software for programming and visualization of our automation systems.
Here you can download the following software updates free of charge!
Soft-CoDeSys – programming to international standards
easySoft-CoDeSys easySoft-CoDeSys is a programming system, based on CoDeSys 3S for industrial plc compliant with the international Standard IEC 61131-3.
Fully developed technical features, easy handling and the widespread use of this software in the automation components of different manufacturers guarantee successful programming with this software.
|
|
Our HMIs are amongst the brightest, sharpest, and most flexible operator panels in the industry.
Building custom interfaces has never been so easy or rewarding. Utilizing built-in tools like our time saving 3D parts libraries in the GT21C or GT32 will allow you to setup your operator panels quickly and painlessly. From simple LED displays to 12.1" 32,768 color touch screens, Panasonic has your HMI needs covered.
|
|
ONLINE BATCHER 3000
THE INTELLIGENT HUMAN MACHINE INTERFACE
The result of each decision is based on the information available at the time.
With the development of our newest generation of performance orientated control software, we continue to advance with our ''Online Batcher 3000'' System
|
|

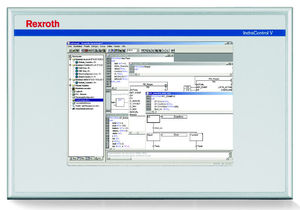

Rexroth IndraControl VSP is the economical solution for PC-based control, operation and monitoring in your individual application. The high-performance PC operator terminals have reliable technology and offer individualized solutions. They are suited for a variety of industries and applications that demand highest PC performance and standard environmental conditions and industrial capability.
* highest level of performance due to latest PC-technology
* higher of investment protection due to standardized hardware and software
* open and flexible for costomer-specific solutions
* high production safety level due to EMV-certified design
* operation and service-friendly construction
* secure serviceability (min. 3 years)
|
|
The SIMATIC Flat Panel 15" PRO, SIMATIC THIN CLIENT 15" PRO, and SIMATIC MP 377 15" PRO present themselves in an IP65-rated enclosure - protected all around against dust and water jets. The ready-to-run devices can easily be attached from the top or the bottom to support arm systems (swivel arms) or pedestals.
The attachment interface supports mounting systems from many manufacturers (incl. the VESA standard for flat screens). The removal of the back wall is very simple, providing easy access to the ports and card slots of the Multi Panel.
Special cables or connectors are not necessary.
The devices not only impress with their ease of servicing, but also with their attractive design, and still low external depth.
|
|
Advanced Input Systems specializes in meeting the needs of underserved customers that are constrained by traditional design solutions or unable to implement hardware differentiation. We routinely produce application-specific devices by integrating standard elements into more complex control interfaces. These deterministic systems combine platforms of standard building blocks from a wide variety of technology providers to meet customer-specific complexity and performance.
Technology Approaches
Customizable, Fundamental Keyboard Platforms Including:
-Flat panel
-Plastic key over elastomer-based laptop
-Backlight full-travel
-Metal kiosk keyboards
-Elastomer-based mobile keyboard
Components and Incorporation of:
-Optical and mechanical encoders
-Displays and touch panels
-Audio devices
-Pointing devices
-Illumination strategies
-User interface strategies
-Sealing solutions
-Graphic overlays
-Structural and cosmetic enclosures
Common Building Blocks:
-Numerous switching techniques
-Industry standard network interfaces
-Common user interface control devices
-Reusable 8051 firmware modules
|
|
Beijer Electronics EXTER T60c/T60m, touchscreen panels with 5.7” display
Display: Graphic 64K color STN/Graphic 16 grayscales
Presentation form: 5.7”, 320 x 240 pxl
USB Host
Front protection class: IP66 (waterproof even when exposed to high pressure washing).
With EXTER™, you get an operator panel that is ready to impress you. Its high-performance Intel Xscale® processor, robust construction and multiple communication ports make it a futureproof choice for your machines and processes. There are fourteen models to choose from - seven with touchscreen display, six with keypad control and one mobile operator panel. The award-winning, slim design and the powerful performance make EXTER™ an operator panel beyond the ordinary.
|
|
Microvision Light (2 axis interpolated controller)
Suitable both for simple machines and for intelligent and programmable equipments, it integrates in a sole unit HMI, PLC and CNC functions with an excellent relation price/performances. Drivers can be connected to the controller either through analog +/- 7,5V signals or digital PWM or Step / Direction. It’s basic equipment of 12 Inputs and 8 Outputs can be expanded using the 2 available CANopen serial ports.
|
|
|
|
