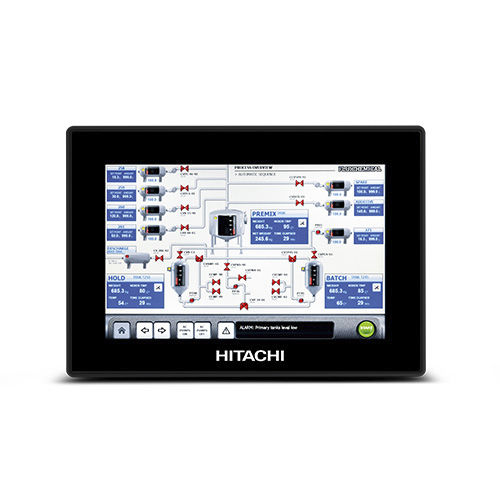

Panel-mount human machine interface EH-TP500 series

with touch screenwith keyboard800 x 600

Hitachi offers a wide range of operator interfaces which allow you to choose the best solution for your application. We provide two dedicated programming software packages: EH-VIEW for Text and Operator Displays and HiMobile for the latest generation Touchpanel EH-TP500 series. HIGHLIGHTS High performance touch screen with innovative mechanical and metal enclosure Coating on all electronic boards Dual-driver blank communication capability PDF reader 5 year warranty Dust and splash proof enclosures to IP 65 Customized for all Hitachi PLCs and inverters, Drivers for Siemens S5 / S7 are also included Multi-language programming Gateway function, remote installation of application and remote assistance Internal memory up to 256 MB Flash, 256 MB DDR Supported Protocols: Hi-Protocol Ethernet, CODESYS Ethernet, Modbus TCP, Modbus RTU, CANopen, Profibus-DP, DeviceNet and more Interfaces: Ethernet, USB, serial ports and MPI integrated Many HMI features: dynamic objects, data acquisition, alarm handling, multi-language applications, e.g. Data display as numerical, text, bargraph, analogue gauges and graphic image formats
