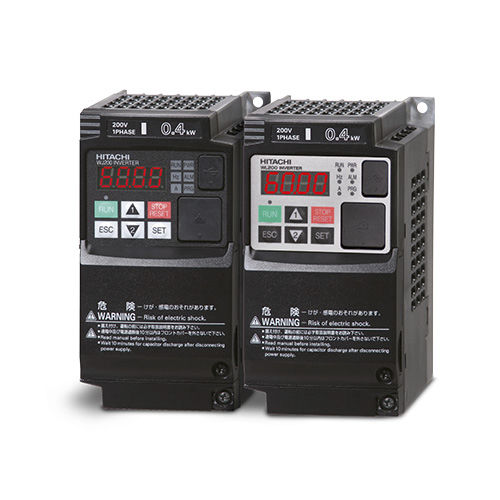

Compact frequency inverter WL200
three-phasesingle-phasedigital display

Compact frequency inverter - WL200 - Hitachi Europe GmbH - three-phase / single-phase / digital display
Compact frequency inverter - WL200 - Hitachi Europe GmbH - three-phase / single-phase / digital display
Compact frequency inverter - WL200 - Hitachi Europe GmbH - three-phase / single-phase / digital display - image - 2
Add to favorites
Compare this product

Characteristics

Type
three-phase, single-phase, digital display, PWM
Applications
for pump, for conveyor, for the textile industry, for material handling equipment, for machines, fan, for hoists, for roller shutters
Protection class
IP20
Other characteristics
compact, variable-frequency, programmable, with integrated PLC, with PID controller, integrated braking resistor
Power

Min.: 200 W
(682.43 BTU/h)

Max.: 18,500 W
(63,124.59 BTU/h)

Intensity

Min.: 1.2 A

Max.: 38 A

Output frequency

Min.: 0 Hz

Max.: 400 Hz

Description

With our WL200 / WJ200 Series we present a generation of compact inverter, ideally suited for a variety of applications such as textile machines, materials handling, rolling shutter gates, pump and fan and much more. Advanced V/f Control Dynamic braking transistor in all models Build in EasySequence PLC-like functionality New and more effective trip avoidance functions RoHS Compliance Side-by-Side installation Global standards CE, UL, c-UL und c-Tick Safe-Stop function
