Powerful, compact and versatile; max. braking force from 20 000 to 100 000 N.
The new Coremo proposal generated by continuous research and development to meet Customers requirements also in the fields of energy, seaport and marine, lifting systems and conveyors, mining and oil.
Failsafe version (spring applied) also available.
|
|
|

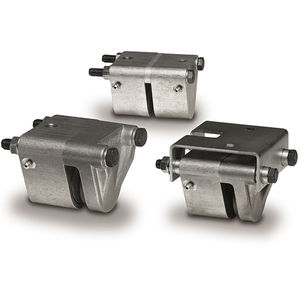

Seven different styles. Effective piston areas ranging from 1 to over 9 square inches. Aluminum, or iron construction. Maximum pressure ratings between 1000-1500 PSI. Options (depending upon the series selected) include floating bracket, EPR seals, retractable piston(s) and sintered metallic friction material.
|
|

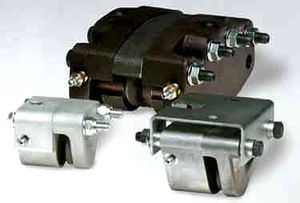

Two different styles with effective piston areas from 2 to 4 square inches. Aluminum construction. Maximum hydraulic pressure ratings between 1000-1500 PSI. Maximum mechanical lever forces of 200-580 lbs. Options (depending upon the series selected) include floating bracket and Buna-N seals.
|
|
SB38
Application:
- Main Hoist, Boom Hoist
Advantages:
- Low maintenance caused by self centering
- Automatic wear compensator
- Symmetric design
- Compact construction
Technical data:
- Adjustable brake torque
- Brake torque 21000-40500 Nm
- Brake disc diameter 710-1250 mm
- Weight 510 kg
|
|
Our disc brakes are designed to operate in the most arduous conditions, typically in the steel industry where the operating environment is extreme, and the container industry where reliable operation all year round is expected.
Twiflex brakes are often specified for the main hoist, acting as service brakes mounted on the input shaft and as emergency brakes mounted on the output shaft or directly on the main drum
|
|
The following calipers give various examples of the "spring applied, hydraulically released" brake range. Often described as "Safety brakes" these units are typically installed and controlled as automatic safety devices on such machines as escalators, elevators, conveyors, mine winders and cranes.
Options include; adjustable torque control, automatic pad wear adjustment, monitoring devices, discs, hubs, hydraulic power supplies and pedestal mounting kits.
|
|
RINGSPANN- Disc Brakes can be used for various functions, i.e.
as a parking brake it prevents the unintended start of a stationary shaft;
as a stopping brake it brings a rotating shaft to a standstill in a short time, even when this is only in connection with a power failure or emergency stop;
as a control brake it maintains a certain tension in the material.
Brake callipers or brake saddles may be arranged in any position on disc brakes of varying diameters. By using several brake callipers on the same disc it is possible to increase the brake torque without the need to enlarge the installation dimensions to any great extend. All brakes are available with an electric wear indicator and with automatic wear adjustment.
|
|
|
YP series electro-hydraulic disc brakes are high performance products acted on high speed shafts of drive mechanism, which have advanced function such as automatic shoe clearance balancing and lining automatic wear compensation. The brakes in service are basically free of maintenance. Meanwhile, various limit switches can be equipped to provide the main machinery with necessary interlocking protection signals. Therefore, if fits very well for mechanism deceleration and stop/braking of various large and special handling machinery with high self-control, hoisting and metallurgical machinery.
|
|
|
Finding innovative and reliable ways to help our customers solve industrial braking problems...at Carlisle Industrial Brake and Friction its been our mission for over 50 years. Through the years we have partnered with most of the leading OEM’s in off-highway to produce brakes and hydraulic actuation systems for applications ranging from agriculture and construction equipment to lift and mining trucks. We offer complete braking systems that extend from the foot pedal through the brake and friction material. Our range of brake products includes service, park, emergency, full circle and hydrostatic motor brakes, as well as hydraulic valves, actuators, brake locks, and friction materials.
|
|
YLZ series wheel brakes are new storm braking devices, directly acted on the wheel to realize storm braking in the function of wheel pressure. They are extensively used for outdoor middle and large cranes, port handling machinery, and construction machinery as storm braking under operational state and as auxiliary storm braking under non-operational state. The brakes are mainly used for passive wheel braking. Together with active wheel on high speed shaft adopting two-step brake, it’s better and more economical to realize full wheel storm braking.
Design features:
●Normal closed design,safe and reliable; disc spring set and hydraulic release.
●With limit swtich the brake can give the interlocking protection.
●Brake lining is made from a non-asbestos hard material,which has high and stable friction performance,not sensitive to water, acid and other environmental agents.
●All fasteners and spindles are made of stainless steel.
|
|
| ... products without technical information |
| |
Spring apply hydraulic release multiple disc brakes, thru-shaft brakes, posi-torque winch brakes, pressure override brakes, and wheel mount brakes. Brakes are available in a variety of SAE mounting configurations.
|
|
Most of our brakes are offered in both wet and dry configurations. Variations on shaft and spline sizes are also a common option. In addition, Ausco offers a number of specialty multi-disc brakes for articulated vehicles, mining shuttle cars, etc.
|
|
|
|
|
|
Off Highway Vehicle Brakes
SAE Hydraulic “Bolt-on” brakes
Spring-applied, hydraulically released multi-disc brakes with industry standard SAE A, B, C, and D input and output flanges enable these brakes to be "bolted on" to a wide variety of applications. When fully installed making them suitable for harsh working environments and are available in wet and dry versions with static torque ranging from 50 to 1600 Nm (500 to 14,000 lbs. in.). These brakes are frequently used as a parking brake on lift vehicles.
Electromagnetic “Bolt-on” brakes
Spring-applied, electrically released multi-disc static holding brakes, which uses the industry standard SAE mount and NEMA “C” face. Originally designed for battery driven electric vehicles but are used in a wide range of access platform lift applications, these brakes offer high torque in a compact design for electric applications.
Customized integrated hydraulic brakes
Spring-applied brake or brake components can be incorporated into equipment, gearbox, wheel hub, or similar applications. Because each brake solution is custom designed, Matrix can provide compact designs that minimize the overall length of the drive package while still providing the necessary torque for the application. Matrix offers complete brake assemblies or components to meet the particular application requirement.
* Spring-applied, pressure released
* Pneumatic or hydraulic operation
* Wet or dry operation
* Robust design for extreme applications
* SAE/ISO or custom mounting arrangements
Typical Applications
* Access platform lifts
* Wheel brakes
* Gear drive brakes
* Winching applications
* Two-Speed drives
* Utility vehicles
|
|
Ausco is the leader in brakes for construction equipment.
Ausco designed a brake that acts as both the parking brake and the mid-mount bearing. The result was a high-value product that eliminated Deere's reliability concerns with caliper brakes and reduced overall cost.
Ausco also leads the market with innovative products on dozers, mini-dumpers, backhoe loaders, telehandlers, trenchers, pavers, graders, etc. In fact, it is hard to drive by a construction site without spotting at least one piece of equipment that features Ausco brakes.
|
|
Ausco invented the spring applied-hydraulically released multi-disc brake in the early 1970s. Today, Ausco remains the leader in spring applied-hydraulically released brakes. Ausco's catalog product offerings include all of the common SAE mounts. Most of our brakes are offered in both wet and dry configurations. Variations on shaft and spline sizes are also a common option. In addition, Ausco offers a number of specialty multi-disc brakes for articulated vehicles, mining shuttle cars, etc.
|
|
|
|
|
|

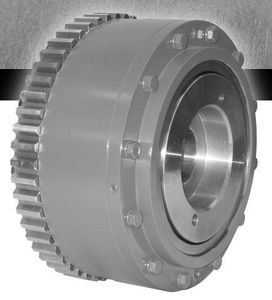

Hydraulically released spring-applied multi-disc brakes
Applications:
There is a variety of possibilities to use hydraulically released spring-applied multi-disc brakes in the stationary and mobile sector, also combined with hydraulic motors. The brakes can be integrated in the oil circuit of the motor.
When starting the hydraulic motors, the brakes release with oil pressures of 15 - 38 bar. Thereafter the full system pressure up to 320 bar can be connected.
The brakes can be used in wet and dry operation. With failure of the oil pump, an emergency release is possible.
Characteristics:
* Torques from 30 to 500000 Nm (higher torques on request)
* Oil pressure from 15 to 50 bar for releasing, thereafter the system pressure up to 320 bar can be connected
* Application in wet or dry operation possible
* Several friction faces
* Less residual torque in open condition
* Smallest dimensions with high torque
* High heat capacity
* Requiring less maintenance
* Simple handling
* Single and double bearing
* Sealing face wear-resistant and corrosion-proof
* Variety of executions to catalogue D 227
|
|
|
|
|
|
Park Brakes
Hydraulic - SAHR (Spring Applied Hydraulic Release)
Brake Series / Application :
DXP195 Articulated dump trucks
FCP RV chassis, School buses, On-highway vehicles
G1 Front-end loaders, Mining vehicles, Other construction vehicles, Industrial equipment
G2 Construction equipment, Mining vehicles, Industrial equipment
G6 Off-highway construction equipment, Mining vehicles, Industrial equipment
HMB Multi-Disk Wet Skid steers
PD1134 Front-end loaders, Construction vehicles, Industrial cranes, Underground mining equipment
PD1591 Front-end loaders, Underground mining vehicles, Industrial vibratory rollers, Industrial cranes, Lift trucks, Dump trucks, Compactors, Reach trucks, Tow tractors
PD1599 Oil well pumping units, Industrial vibratory compactors, Underground mining vehicles
SA-7000 HP Rough terrain cranes, Front-end loaders, Backhoe loaders, Other construction vehicles, Underground mining vehicles, Agricultural machines, On-highway vehicles, Industrial equipment
SA-7000 LP Graders, Wheel loaders, Other construction vehicles, Underground mining vehicles, Agricultural machines, On-highway vehicles
SCL15 Industrial equipment
SCL25 Articulated dump trucks
SCL34 Mining shovels, Winches
SCL50 Mining vehicles, Mobile construction equipment
SCL57 Mobile construction and mining equipment
SCL69 Mobile construction and mining equipment, Agricultural machines, Logging industry vehicles
SCL70 Large surface mining haulage trucks
|
|
| ... products without technical information |
| |
|

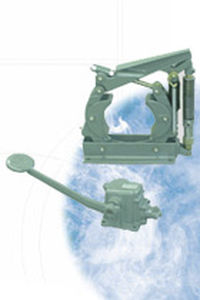

The hydraulic shoe brakes are spring released and hydraulically set for controlled stopping. Applications such as indoor and outdoor bridge cranes are just some of the examples. These proven high performance brake systems are tough, reliable and provide trouble free service. Brake wheel sizes ranging from 6 inches to 18 inches are available. Brakes are available either with standard hydraulic setting, setting with parking feature or with air powered hydraulic operation. The powered systems may be direct or remote controlled. Air remote control, hydraulic remote control, and electric remote control allow the customer the flexibility to satisfy most requirements.
|
|
EBH
Application:
- Slewing, Trolley, Gantry, Conveyor belts
Advantages:
- Easy maintenance
- High performance
- Robust design
- Horizontal arrangement possible
- Compact construction
Technical data:
- Dimensions acc. to DIN 15435
- Adjustable brake torque
- Brake torque 200-4000 Nm
- Brake drum diameter 200-500 mm
- Weight 27-173 Kg
|
|
Electro-Hydraulic Drum Brakes

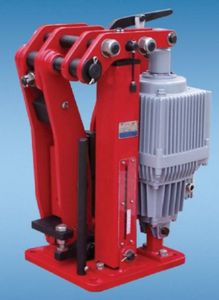

Electro-hydraulic drum brakes can be extensively used for various mechanisms deceleration and stop/braking of various lift, belt transport, port handling, metallurgical and building machinery.
|
|
