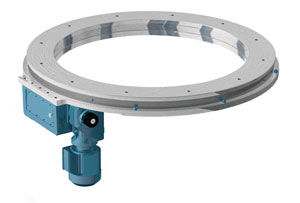

rotary indexing ring
rotary indexing ring
RST-D

Description Ring indexing unit for endlessly turning with a rotation angle up to 90° per cycle. Field of application To be used in clean to slightly dirty environments such as assembly or packaging ...

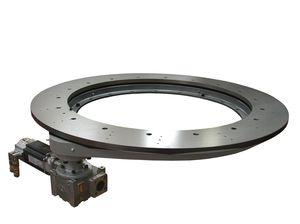

rotary indexing ring / cam
rotary indexing ring
NR, TR series

rotary indexing ring / cam / for heavy loads
rotary indexing ring
FT, HT series

HT series ring tables operated by globe-shaped, roller gear cams are specifically designed for industrial automation market segments demanding huge central hole, multiple stations or programmable positioning, high accuracy ...

rotary indexing ring / belt-drive / for stepper motors
rotary indexing ring

The NC rotary indexing ring can be freely programmed. The equipment can be installed inside the through-hole of the MCPI ring drive. The ring can be employed for assembly ...

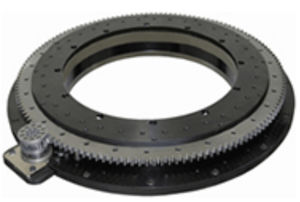

rotary indexing ring / belt-drive / for stepper motors
rotary indexing ring
CRD, PRD series

The Precision Ring Drive (PRD) is a part of the precision rotary motion series which is made up of precision-grade bearing and gearhead, along with the Roller Pinion System (RPS) technology of Nexen. This product works ...

rotary indexing ring / programmable
rotary indexing ring
NR750

... diameter and thickness. Dial ring outside diameter: min. 750 mm Dial ring inside diameter: max. 490 mm Ring thickness: min. 20 mm Overall height of assembly (from base to top ...

See the other products
WEISS GmbH
rotary indexing ring / cam / for machines
rotary indexing ring
Do series

... applications with multiple index stops. BACK TO TOP Features Ring Type Output Features a large diameter, hollow fixed ring output. Wide Product Lineup Available in many sizes and indexing ...

rotary indexing ring / cam / for stepper motors
rotary indexing ring
Do series

Sankyo's Do Series ring indexer features cast iron housings with a large stationary center bore. The center and outer rings can support stationary dials above or below the indexing ...

rotary indexing ring / cam / for stepper motors
rotary indexing ring
TI series

... Italplant toroidal indexers TI are globocylindrical cam mechanisms with similar functioning to the other rotary table of our production. The difference with these is that turn a ring ...

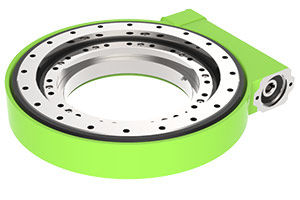

rotary indexing ring
rotary indexing ring
DRW 80

Rugged drive systems are essential for proper performance of solar power plants as these systems provide high efficiency and accuracy to the plant. The system requires minimal maintenance. The device should also be specially designed ...

rotary indexing ring / belt-drive / for stepper motors
rotary indexing ring
RR-14-10

... and run-out. Radially distributed brushless RotoLinear motoring modules provide high positioning stiffness during rotary indexing and when installed on moving XY tables. These rotary tables provide unlimited rotation ...

See the other products
IntelLiDrives, Inc.
rotary indexing ring / cam / for stepper motors
rotary indexing ring
RNG series

The CAMCO® RING DRIVE offers easy-to-integrate automation that fits easily into your operations Minimize machine footprint: Mount your equipment inside the through hole of the CAMCO ring drive Easily ...

rotary indexing ring / belt-drive / for stepper motors
rotary indexing ring
max. 100 kg, 17 - 40 Nm | RSM -T-36 series

... unit (stator or primary part) and rotated magnet ring (rotor or secondary part). The stator is composed of a coil unit that is encapsulated in thermally conductive epoxy. The rotor consists of steel ring ...

How to choose this product

indexing-ring

Indexing rings are rotary indexing tables with a large open center, allowing for design space and equipment. Indexing rings are known for their rigidity and their ability to transport heavy loads.

Applications

These devices are commonly used on printing a decorating machines, on automatic assembly machines and on tooling machines. In some cases they can be used as small conveyors.

Technologies

Indexing rings are driven using a electric motor and gear box system. They have a very low-profile design and a flat surface to hold workpieces.

How to choose

When selecting an indexing ring, be sure to specify the inside and outside diameter for your application. Other specifications to take into consideration are the indexing precision and load capacity.

Advantages

- Heavy loads
- Rigidity
