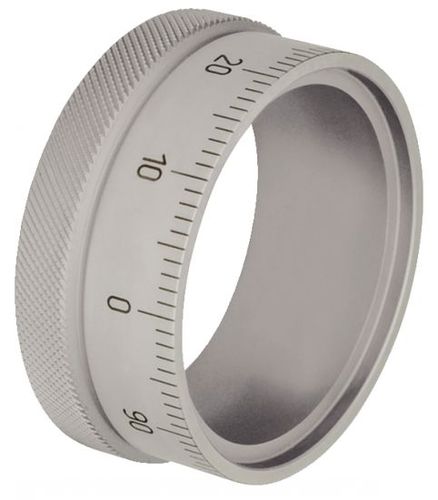

Rotary indexing ring 17-02 series

Product name
SCALE RING STEEL (Model : 17-02)

General description
Steel scale ring with matt chrome finish and ground periphery. Standard graduation: 100 divisions with 10 markers from 0 to 90° (ref. 100-1-1-0-90/10). Available in neutral (no graduation) or with standard graduation.

Use
Used to assemble a complete vernier when combined with one ring 17-02, two bushes 17-04 and three spring blades 17-06.

On request / Special versions

• Non-standard graduations manufactured according to the drawing provided by the customer or manufacturer (custom graduations on request).

Files / Data available
PDF datasheet, vernier graduation example PDF, general ISO tolerances PDF and 3D CAD file available for download.

Available references and main dimensions
Ref; Version; d1 (mm); d2 (mm); d3 (H7) (mm); d4 (mm); l1 (mm); l2 (mm)
17-021-30; Neutral; 30; 27; 24; 33; 16; 23.7
17-021-40; Neutral; 40; 36; 32; 43; 16; 23.7
17-021-60; Neutral; 60; 55; 50; 63; 16; 25.7
17-021-80; Neutral; 80; 75; 68; 83; 16; 25.7
17-022-30; Standard graduation; 30; 27; 24; 33; 16; 23.7
17-022-40; Standard graduation; 40; 36; 32; 43; 16; 23.7
17-022-60; Standard graduation; 60; 55; 50; 63; 16; 25.7
17-022-80; Standard graduation; 80; 75; 68; 83; 16; 25.7

Notes
Complies with GN 264. Stocked references are marked D (availability indicated on the product page).

Characteristics / technical specifications

• Material: Steel, matt chrome finish.
• Periphery: ground.
• Standard graduation: 100 divisions, 10 markers 0–90° (ref. 100-1-1-0-90/10).
• Composition of a complete vernier: 1 x ring 17-02 + 2 x bushes 17-04 + 3 x spring blades 17-06.
• Available versions: neutral (no graduation) or standard graduation; custom graduations on request.
• Conforms to GN 264.
• CAD files and PDF technical documents available for download.
