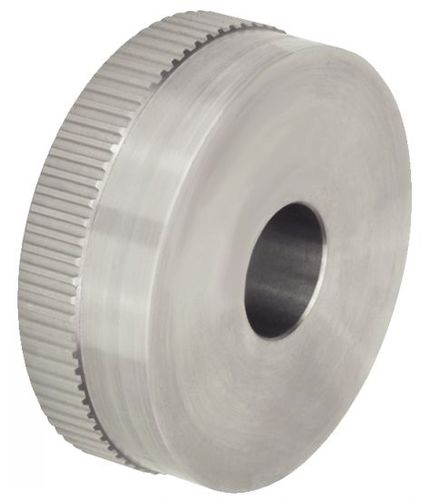

Knurled control knob 17-08 series

Product name
SCALE RING STEEL (Model: 17-08) - Maurin Composants

Short description
Knurled vernier (scale ring) in steel. Available as turned steel (without graduation) or matt chrome-plated steel (with graduation). Supplied with a milled groove. Locking elements include a rubber locking ring and a polyamide friction ring where specified.

Features

• Material: turned steel (without graduation) or matt chrome-plated steel (with graduation)
• Milled groove for assembly
• Rubber locking ring
• Polyamide friction ring (option)
• Standard graduation: 100 divisions, 10 marks from 0° to 90° (ref. 100-1-1-0-90/10)
• Special graduations available on request

Variants / Visual presentation

• Turned steel: without graduation
• Matt chrome-plated steel: with standard graduation
• Versions with or without friction ring depending on reference

Example of order
EXAMPLE OF ORDER: Reference-d2 (H7) 17-081-30-12

Notes
Product corresponds to standard GN 164.

Technical specifications

• Model / Designation: 17-08 (scale ring)
• Available outer diameters (d1): 30, 40, 50, 60 mm
• Bore options (d2, H7): 12, 14, 16, 18, 20 mm
• d3 typical values (mm): 31.7, 41.3, 51.8, 61.4
• d4 tolerance examples: values shown for references (e.g. 12 with tolerances -0.02 / -0.05 mm)
• Versions: without graduation / with standard graduation
• Friction ring: with or without according to reference
• Standard graduation detail: 100 divisions, 10 marks 0°–90° (ref. 100-1-1-0-90/10)
• Special executions: non-standard graduations available on request
