Control knob 17-10 series

Product name

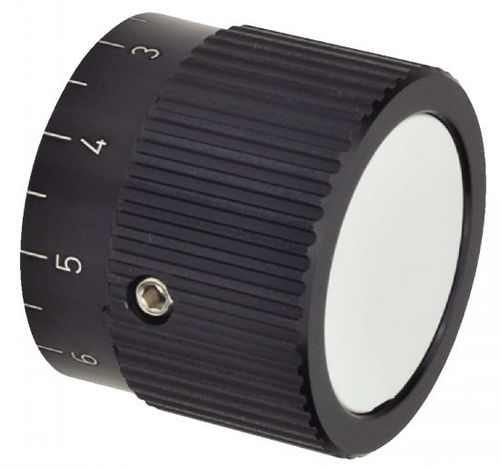

Control knob aluminium (model: 17-10). Anodised black aluminium with light grey technopolymer cap. Standard graduation: clockwise rotation, 10 graduations (0–9) or 1 division.

Information

• Material: aluminium, anodised black
• Cap: light grey technopolymer
• Standard graduation: clockwise rotation, 10 graduations (0–9) or 1 division
• Fixing: set screw or clamp depending on version

Special execution
Graduations outside standard available on request according to specific scheme.

Example of order
EXAMPLE OF ORDER : Référence-d2 (H8) : 17-101-22-5

Variants / Available references

• 17-101-22-5
• 17-101-27-6
• 17-101-34-6
• 17-101-34-8
• 17-101-42-8
• 17-101-42-10
• 17-102-27-6
• 17-102-34-8
• 17-102-42-10
• 17-103-22-5
• 17-103-27-6
• 17-103-34-6
• 17-103-34-8
• 17-103-42-8
• 17-103-42-10
• 17-104-27-6
• 17-104-34-8
• 17-104-42-10

Notes
Corresponds to standard GN 726.1.

Technical features / specifications

• Model: 17-10
• Material: aluminium, anodised black
• Cap: light grey technopolymer
• Graduation: standard (10 graduations 0-9) or 1 division
• Direction: clockwise (standard graduation)
• Versions available: standard graduation / 1 division
• Fixing options: set screw or clamp
• Available shaft diameters (d1): 22 mm, 27 mm, 34 mm, 42 mm
• d2 (H8): 5 mm, 6 mm, 8 mm, 10 mm
• Multiple dimensional variants per reference; consult product reference for exact dimensions
• Standard: GN 726.1
