The ALline labeling systems are automatically-operated in-line systems which can be configured for the labeling of cylindrical, elliptical or rectangular products; moreover, they can suit specific requirements, such as the application of tamper-proof seals or labelling of singularly shaped products.
All ALline linear labellers have equally been designed according to cutting edge designing criteria which, in strict compliance with CE regulations, make every machine suitable for even the harshest of conditions, guarantee great labelling accuracy even at high production speeds and feature a high degree of operator-friendliness, as the start and change-over operations are particularly simple and intuitive.
In more detail, ALline is based on the "built-in" philosophy, which means that all components are "included" in the structure/cabinet, well protected against dirt and accidental bumps. The cobalt blue (or stainless steel) structure is extremely sturdy and, thanks to its eye-catching design, it qualifies the whole packaging line.
|
|
|
|
|
|
- Dimensions: Height: 63.9" (1,623 mm), Length: 120" (3,048 mm), Width: 84.8" (2,154 mm)
- Weight: Approx. 1,000 lbs. (454 kg)
- Electrical: 120 Volts AC 60 Hz 20 Amps., 220 Volts AC 50 Hz optional (CE)
- Air (as needed): 4 cfm at 90 psi to 100 psi required for air-blow and tamp-blow applications
The NEW Label-Aire Inline Series 6000 labeling system is designed to be very easy to configure while also making labeling easier and faster... making you more profitable.
The Inline Series 6000's long list of optional features allows you to easily build a system to meet your specific labeling requirements. Need a simple wrap conveyor system? Or instead, a high-speed front/back system with dual feedscrews and a top trap hold down? With the Inline Series 6000, you can have it your way.
The versatile Inline 6000 is an open frame labeling system that can be outfitted with Label-Aire's full range of Label-Aire New Generation 3100 Series applicators (wipe-on, air-blow, or tamp-blow) and features a delrin chain conveyor in lengths of 6 feet to 12 feet (1,829 mm to 3,658 mm) with a choice of 4.5 inch (114 mm) or 6.0 inch (152 mm) conveyor widths.
|
|
CICRESPI TERMOLOGITRON is a print+apply labelling machine for pallets.
Barcodes such as GS1 128, SSCC and others can be printed.
Labels are applied on the side in transit, or two labels on side and front, side and back, through the movement of linear pistons x, y and rotating. The machine is composed of a load bearing structure in aluminium with thermal transfer printing module, mechanical label unwinder, silicone paper rewinder, handling cylinders, label sucking module, end of materials and label presence sensors.
Optional version can apply labels on 3 sides.
|
|
Cicrespi labelling machine "MULTILABEL" applies simultaneously more self-adhesive labels in a row on pre-formed trays coming from thermoformers, multiple packages or stretched film.
Cicrespi "MULTILABEL" dispenses the selected number of labels and applies them through motored belt while keeping them in suction.
Cicrespi "MULTILABEL" comes in two versions: with thermal transfer printing group, or applicator only.
It is possible to program the number of labels, positioning, centring and pitches for multiple rows; create and store through terminal; dynamic teaching of different formats.
CICRESPI labelling machine "MULTILABEL PRINTER" can also print variable data through thermal transfer printing module, and then apply simultaneously more self-adhesive labels in a row on pre-formed trays coming from thermoformers. Application can be classically on the top, or as shown in the video attached also from the bottom to put labels on packages of sandwiches.
|
|
CICRESPI Aerlampo and Aerprime.
Motion and control labellers entirely pneumatic for inflammable and explosion-risk enviroments.
Three models with variable speeds from 0 to 30 m/min. Motor working with compressed air.
On request rotary letter-press printing unit - Aerlampoprint.
Paper passage mm 80 - 120 - 150 - 200.
CICRESPI manufactures totally pneumatic labelling lines for ATEX class 2 (eex-d explosion proof) environments.
Fully wrapping application, with research of exact application point.
For cylindrical or conic products.
|
|
Labelling systems
Labelling systems are complete solutions for automatic labelling of food, chemicals, cosmetics, pharmaceuticals, bevarages and any other kind of product, with different kind of standard or customized solutions.
System 2 full
A solution especially devised to apply the optical tag on pharmaceutical shaped cases. It is marked by realiabil-ity and high speed: alarm and control devices ensure that labels are perfectly applied, while non labelled/non printed products are automatically ejected; available in the "non stop" version, with two labellers programmed for automatic changeover. System 2 FULL is designed to fit in tracking systems.
|
|
|
|
|
|
Whether you need a thermal-transfer printer for low-volume labeling or a non-contact, high-speed printer-applicator that fits on your production line, Weber has the solution to your labeling requirements.
Label Printer-Applicators
These sturdy, self-contained units combine a high-density thermal/thermal-transfer label printer with an automatic label applicator to simultaneously print and apply pressure-sensitive labels to the tops, bottoms or sides of products right along the conveyor line. Units also are available to satisfy the requirements of RFID encoding, printing and application.
Label Applicators
Weber also offers a complete line of automatic label applicators, which rapidly apply preprinted pressure-sensitive labels to all types of products and cartons. We also provide systems that encode and apply RFID smart labels.
Label Printers
Weber's broad line of label printing solutions utilizes the foremost printing technologies to simplify on-site, industrial labeling. Our selection of thermal-transfer and direct-thermal systems offers label printing solutions for virtually any application, including RFID encode and print needs.
|
|
|
|
|
|
Enterprise
Harland Enterprise labelling systems are available with up to 6 labelling stations as standard. Cam, continuous rotation or motion control of the bottle/container/pack platform allows for a multiplicity of label placements with high accuracy.
Speeds of up to 1000bpm are achievable, with optional bespoke product handling/orientation features ensuring fully automatic consistent & reliable labelling. Flexibility in the incorporation of conventional 'Comet' or advanced 'Pulsar' labelling heads allows for the effective high speed application of ultra-thin film labels.
Features
- Basic Machine Up to 6 labelling stations. Complete with conveyor, turret, star wheels & scroll feeding unit
- Bottle Platforms 1200mm P.C.D format with 16, 24, 32& 40 platforms
- Infeed Units Single scroll, infeed/outfeed starwheels and centre 'plough' - with overload protection
- Electronic 'Spotting' arrangement available for raised/recessed registration features and product orientation, base/side features
- Labelling Units A range of labelling heads are available to suit the application
- Finishing Units Brushes and/or rollers - position determined by bespoke camming arrangement
- Overprint Unit Hot foil printer, deboss discreet coder, thermal, laser and inkjet
- Ancillary Equipment Label/product security systems, PLC/Servo control, product counters, infeed/outfeed monitoring controls
- Auto change for continuous running (max. 3 label dressings)
- Fully interlocked guarding
- Special electrical options available
|
|
Hot-Melt Rotary Labelling machine
The automatic labelling machines are suitable to apply labels by hot-melt glue.
They can apply only wrap-around paper or OPP pre-cut labels on cylindrical or shaped bottles, in PET and glass.
|
|
|
The Murrplastik labelling system for single wires, control gear, clamps, cables, control and signal units and conduits is one of the most universal on the market. We have developed our labels for many components by well known manufacturers. In doing so, we fulfil all requirements for a modern, compatible labeling system. Alongside simple manual input, existing data can also be drawn from various CAD/CAE systems into the unit's own software.
|
|

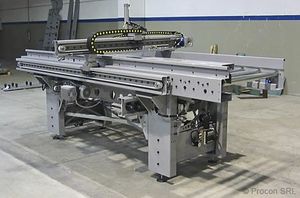

The labelling machine is made of one roller conveyor with an 2-axis sheet centering unit and an overhead applicator. The silent traction of the rollers is by means of a traction-belt. The overhead applicator takes a label from the printer unit and applies it on the product in any position defined by the control.
It is possible to deliver only an overhead applicator without roller conveyor.
|
|
Combi FBL
Flat Box Labeler
The Combi FBL saves money and space by eliminating custom printed cases. With the Combi FBL, blank cases can be used for different products and can be labeled with variable information as they are needed.
|
|
If you need accurate, high speed weigh price labelling with longer running times, look no further than the WPL 8160. It’s specifically designed to handle small to medium size retail packs where, typically, high packing speeds of 160 packs/min are required.
Speed alone, however, is not enough because the weighing of every pack is vital to consistently efficient processing and production and this is where the 8160 excels.
To ensure that every pack is pitched correctly across the weigh table, driven side belts provide positive control and correct orientation of incoming packs. These, along with side guides that are manually adjusted to set the pack width at the input of the machine, ensure product runs true and correctly spaced over the weigh table.
The machine can regulate its own speed according to product input.
|
|
|
|
|
|
The Model 5200 Corner-Wrap Label Printer-Applicator with optional RFID encoding
Weber's Model 5200 Corner-Wrap label printer-applicator combines high-quality label printing with a specially designed label applicator that affixes a single label around the corner of a carton as it travels via conveyor line.
In addition to offering a selection of high-quality label print engines that addresses various print speeds and resolutions, the Corner-Wrap system is available with optional RFID print-encode engines from Zebra Technologies that will satisfy the emerging requirements of today’s supply chain.
Standard thermal/thermal-transfer print engines produce text, bar codes and graphic images at 203- or 300-dpi. The RFID models combine those capabilities with the encoding and verification of RFID inlays to meet the specifications of EPC Gen 1 and 2.
Engineered, manufactured and available only from Weber, the unit prints (or prints and encodes) labels in a next-out mode, automatically removes them from their liner, and retains them by vacuum on a swing arm-mounted tamp pad. As a carton approaches, the tamp pad applies the label to its front panel, then swings around the corner and wipes the remaining portion of the label on its adjacent side.
The Corner-Wrap system handles labels up to 4 inches wide and 12 inches in length, and will print and apply labels to a maximum of 15 cartons per minute delivered at least 24 inches apart at a top conveyor speed of 60 feet per minute.
|
|
|
The Little David LS-500 is the low cost labeling standard. This automatic apply-only label system is both dependable and accurate. The LS-500 labeling system easily integrates into most case/product handling systems and is best suited for situations requiring the application of preprinted labels onto a uniform run of cases/products.
|
|
GH
GH is a modern labeling device for flexible, variable-weight pricing and labeling. A rational solution for labeling larger quantities of merchandise, it can be used with different load receptors of different sizes and weighing ranges and is available in the form of a desktop or free-standing unit with stand or installation frame.
|
|
The group of weighing and automatic labelling at Gemini high speed functions under a computing system able to treat the weighings with speeds going to 150 products per minute.
For detailed information, visit www.preciamolen.com
|
|
|
|
|
|
The group of weighing manual labelling I 500 makes it possible to carry out the labelling of the fresh produce in the small boats under films.
Of a great facility of use thanks to its touchscreen, I 500 gives access easily the operations of weighing labelling (use, programming).
I 500 was designed for an integration in the corporate network (operation multipost, exchange of information by network, Ethernet TCP/IP or key USB, connection to the databases of the company.
Its great memory size is the guarantee of a traceability total (number of operation and single DSD, management of the batches, data of traceability skeletal per family of products.
For a faster seizure of the data, the terminal I 500 can be equipped with a keyboard of the type PC and a reader of bar code.
The group I 500 is composed:
Of a terminal of weighing I 500:
- an accessory measures
- 2 ports series
- 1 parallel port
- 1 port USB
Of a platform R1 DLS
Of a printer P950 or P970
Of a key USB 64 Mo
Of CD creation of labels
In option:
- second printer
- second and third ways of measurement
- Ethernet port
|
|
SENSITIVE THL
The Sensitive THL is a completely automatic labelling machine, designed to apply vignettes to the top of cartons and trays.
The machine, with its reduced length, is designed for easy application in-line with packaging machines.
The SENSITIVE THL can reach a max. output of 60 pcs/min.
MAIN CHARACTERISTICS
- Labelling head complete with a distribution unit and a label applicator, driven by a stepping motor
- Transport parts automatically synchronized to the requested speed
- Easy size change-over
|
|
|
|
|
|
Logomatic 515 B 90
An intelligent labelling system for barcode technology and product identification in industrial operation. It excels through its sturdy machine construction and modular design. The integrated print engine can be used for thermo-direct and thermo-transfer printing and allows real-time labelling with individual data per packaged good or serial labelling in continuous operation for high-speed packaging lines.
Logomatic 901 M
An intelligent labelling system for barcode technology and product identification in industrial operation. Its compact modular design and sturdy machine construction are impressive. The integrated print engine (printing width of 104 mm) can be used for thermo-direct and thermo-transfer printing and allows serial labelling with little change in the data for products whose shape remains the same.
Logomatic 901 T
An intelligent labelling system for barcode technology and product identification in industrial operation. It excels through its sturdy machine construction and modular design. The implementation of the integrated thermo-transfer print engine (a printing width of up to 104 mm) allows real-time labelling with individual data per packaged good.
Logomatic 804 M
High-performance rotary applicator with six hollow section vacuum disks. The labels are blown on in a non-contact procedure during continuous operation. Real-time labelling: Each label can be printed with a different data content at labelling speeds of up 180 cycles/min
|
|
ES 7001
1 Printer from above
Weighing range 3 / 6 / 8 kg
Scale increment 1 / 2 / 5 g
The new ES 7000 provides fully automatic price labelling of the highest standard. Utilizing dynamic weighing technology, the system achieves a labelling output up to 120 packs per minute with maximum precision*.
The ES 7000 Series
ES 7001 | ES 7002 | ES 7003 | ES 7004 | ES 7005 | ES 7010 | ES 7011 | ES 7012 | ES 7013 | ES 7014 | ES 7022 | ES 7023 | ES 7100 | ES 7411
|
|
ES 9002
2 Printer from above
The new ES 9002 provides fully automatic price labelling of the highest standard. Utilizing dynamic weighing technology, the system achieves a labelling output of 150 packs per minute with maximum precision.
The ES 9000 Series
ES 9001 | ES 9002 | ES 9003 | ES 9004 | ES 9005 | ES 9010 | ES 9011 | ES 9012 | ES 9013 | ES 9014 | ES 9022 | ES 9023 | ES 9800
|
|
PREMIER
- Premium quality in-line labeling system
- Provides reliable 24/7 performance in the harshest environments
- Applies paper or clear film labels to a wide variety of oval, rectangular and cylindrical containers at speeds up to 400 ppm
- Non-proprietary Allen Bradley PLC control and color touch screen HMI (human machine interface)
- Up to 4 servo or stepper-driven applicators provide high speed labeling
- Encoder-based line speed compensation automatically synchronizes the labeler to the system's product handling
- Product changeovers are fast, accurate and repeatable with precision 4-axis head mounts
- All electronic components feature quick disconnect cabling
- Options may include zero-downtime crossover controls, vision system, bar code verification, hot stamp imprinter, low label, end-of-web, broken web detection, etc.
|
|
Pharmaceutical Systems Feature
- Sanitary "Raised Bed" Conveyor
- Available with Non-proprietary PLC Controls
- Vision System Interfaces for Lot and Date codes
- Thermal Transfer, Laser and Hot Stamp imprinters
- Barcode Verifications
- Product Eject with Eject Verification options
- Complete validation documentation services
- Available with Servo label drive systems
- Stainless Steel Construction
- Low and High speed systems
- "No Tool" product change over
- Compact space efficient designs
|
|
Q31 Compact
- Low cost
- Compact
- Microprocessor controlled
- Low profile
- Economical design
- Pneumatic options for side, top, leading panel, adjacent side or corner wrap applications
|
|
Features:
- Heavy-duty steel framework.
- L15H label applicator.
- Variable speed components.
- Photoelectric product sensor.
- Easy access controls.
Specifications:
- Dimensions: 42"W x 72"L x 56"H
- Speed: up to 1200" per minute.
- Label roll capacity: 12" OD
- Web Width: up to 4 1/2"
- Electric: 120VAC +/-10%
- Shipping weight: approx. 1075lbs.
|
|
Q33 RFID Ready
- High performance RFID-ready printer applicator
- Labels various products, shipping cases and pallets up to 100 ppm
- All quick disconnect electronics and pneumatics
- Uniquely suited for the most demanding applications
- Apply-only module can be configured to apply preprinted labels using a standard tamp or wipe on
- Pneumatic options for side, top, leading panel, adjacent side or corner wrap applications
|
|
Q60 WIPE-ON APPLICATOR
- Capable of dispensing speeds up to 1200" per minute; optional 2200" per minute with +/-1/32" applied accuracy
- Remote electronics
- Stepper driven label feed
- May be used as a stand-alone unit or integrated into Quadrel's rotary systems, pharmaceutical systems and the popular Versaline labeling system
|
|
Features:
- Heavy duty clutch brake.
- Variable speed.
- Photoelectric label sensing.
- Optional start and stop delay.
Specifications:
- Dimensions: 19.5"W x 21" D x 22.5"H.
- Speed: Up to 1200" Per Min.
- Web width: up to 6.5"
- Label roll capacity: up to 12"OD
- Electric: 120 VAC= +/-10%.
|
|
9TCustom Front/Back
- Rotary labeling designed by Quadrel Labeling Systems
- Capable of speeds up to 225 ppm
- Speeds up to 500 ppm are available with larger diameter carousels
- Overhead electronics
- Encoder-based line speed compensation automatically synchronizes the applicator to the system's product handling
-High performance and reliability
|
|
|
|
