Semi-automatic labelling machine

for bottlescanfor jars

Summary

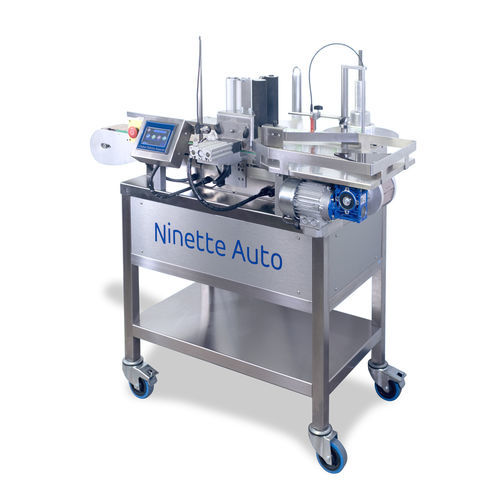

The Ninette Auto Mini is a semi-automatic labelling machine designed for small cylindrical products (jars, cans, flasks or bottles). Its swivel and interchangeable labeller allows it to label containers with a minimum diameter of 20 mm. It is ultra-compact, easy to use and suitable for small production runs. The machine is controlled via an intuitive touch screen equipped with a product counter and can apply up to two labels per container (label + back label).

Applications / Suitable sectors

• Natural products (essential oils)
• Food (food supplements)
• Cosmetics (nail polish and other small products)
• CBD
• Chemical industry
• E-liquids
• Food processing industry
• Parapharmacy

Advantages

• Designed for small cylindrical containers (from Ø 20 mm)
• Ultra-compact footprint for limited workshop space
• Simple operation via touchscreen, suitable for small series and quick product changeover

Key features

• Semi-automatic operation with manual product feeding
• Minimum container diameter: 20 mm
• Can apply up to two labels per container (label + back label)
• Labelling speed: up to 15 products/minute (approx. 900 bottles/hour)
• Machine control: intuitive touch screen with product counter
• Structure: stainless steel and aluminium
• Conveyor with rectangular reception table
• Swivel and interchangeable labeller for versatility with different formats
• Ultra-compact footprint: 1166 x 750 x 1220 mm

Characteristics / technical specifications

• Model type: semi-automatic labeller for small cylindrical products
• Minimum diameter handled: 20 mm
• Maximum labels per container: 2 (label + back label)
• Labelling speed: up to 15 products/min (≈900 bottles/hour)
• Control interface: intuitive touch screen with product counter
• Construction materials: stainless steel and aluminium
• Footprint / dimensions (L x W x H): 1166 x 750 x 1220 mm
• Reception table: rectangular, conveyor-fed
• Typical container formats: jars, cans, flasks, small bottles
