automatic labeler / for self-adhesive labels / high-speed / 2-label
Ninon By Pass



  • Operational mode:


  • Type:

    for self-adhesive labels

  • Applications:

    for the food industry, for the beverage industry, for the cosmetics industry

  • Other characteristics:

    for bottles, side, linear array, high-speed, 2-line, motorized, 2-label, for chemicals

  • Throughput:

    120 p/min

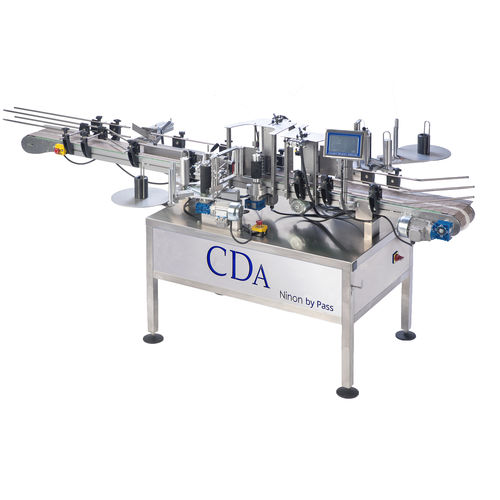

Automatic linear labelling machine for the adhesive labelling of cylindrical products
CDA’s Ninon By Pass is a linear automatic adhesive labelling machine that combines the labelling quality of three-point technology with a speed of up to 120 products/minute. No labelling interruption during a reel change thanks to its dual labelling system.
CDA’s Ninon By Pass allows the application of one to three labels on all cylindrical products (beer bottles, cans, jars, tins, etc.) and can be easily integrated into an existing packaging line. This automatic linear labeler with fast throughput is impressive because of its intuitive functioning, its control via touch screen, its ease of adjustment and the possibility of memorizing 50 product labels.
This linear adhesive labelling machine is suitable for all sectors of activity: food industry (juice, sauce, spices, oil, etc.), brewery (beer bottles 25 cl, 33 cl, long neck, etc.), cosmetics (liquid soap, shower gel, perfume, shampoo, etc.), chemistry (detergent, solvent, household products, etc.) paint and varnish (pots, drums, etc.).
The Ninon By Pass can be perfectly linked with CDA automatic filling machines: K-Net Auto (800 L/hour), K-Line S (3000 L/hour).

- Fast production rate through the dual labelling system
- No interruption when changing a reel on either of the labelling stations
- Intuitive operation and easy to adjust
- Stores 50 product labelling positions

Labelling rate: Up to 120 products/minute
Machine control: Via user-friendly touchscreen
Labelling: Up to 2 labels
Structure: Stainless steel and Aluminium
