The lead-acid battery remains the most common type. It is inexpensive, uses proven technology and can be nearly entirely recycled.
These batteries are used where space is not an issue, for example, for vehicle starting, pulling loads, photovoltaics and backup power sources.
Lead-acid batteries have relatively low energy density, but are subject to little self-discharge or memory effect and offer high output. However, they are not capable of rapid charge-discharge cycles and should not be drained completely. The electrodes, or plates, are immersed in a weak sulfuric acid solution.
Open, wet-cell models are durable and inexpensive. However, water must be added to the cells regularly through openings at the top. These same orifices vent generated hydrogen. Such batteries are dry upon acquisition.
Sealed, valve-regulated lead-acid (VRLA) models use a gel electrolyte or absorbed gas mat (AGM) system. There is no water loss, since generated gas is reconverted into water, though there is also a safety valve to vent excess gas. They have a shorter lifespan than open batteries and are more heat-sensitive.
Choice of lead-acid battery will depend primarily on its technology, its nominal voltage and storage capacity in ampere-hours (Ah).
- Inexpensive
- Low self-discharge
- No memory effect
- Bulky
- Generates gas
- Open models lose water
 |
  |
The Panasonic VRLA battery Trickle Long-Life series was developed by studying and analyzing the factors...
 |
 |
Valve regulated lead-acid battery (VRLA) for solar applications EverExceed Industrial Co. Ltd
EverExceed Modular Max Range VRLA 2V 150Ah~3000Ah Features - 100% initial battery capacity before delivery. - VRLA recombinant technology...
 |
 |
Lead-acid battery 2.5 - 25 Ah SOLEMS
Sealed thin-plate Lead acid batteries CYCLON type - Lifetime...
 |
 |
The EnergyCell RE valve regulated lead acid battery is designed for high power density and renewable energy...
 |
 |
Stationary lead battery 6 - 12 V, max. 65 Ah | NP series Yuasa Battery
NP SERIES Valve Regulated Lead-Acid Batteries Reliability is your security Yuasa NP, NPC and NPH Batteries Utilising the latest advance design Oxygen Recombination...
 |
 |
Lead-acid battery CT - CTL series JOVYATLAS
CT and CTL series batteries are maintenance-free lead batteries of a mesh mat design (AGM-technology). According to EUROBAT, the batteries...
 |
 |
Lead-acid battery 33 - 2 037 Ah | Vb series EnerSys
Lead Acid Varta The unique rod design ensures that the Varta Vb cell is corrosion resistant and has cycling capabilities approaching those of...
 |
 |
Lead-acid battery 50 - 3 000 Ah, 2 - 12 V | OPzS series Alpha Technologies GmbH
Stationary Flooded Tubular Lead Acid Battery The AlphaCell OPzS Stationary Lead Acid Batteries are designed to provide backup power for deep cycling applications in telecommunication, utility, communication and transportation industries. OPzS...
 |
 |
Valve regulated lead-acid battery (VRLA) 25 - 2 000 Ah, 2 - 12 V | SLA series FIAMM
SLA Applications and Key Benefits - 2V, 4V, 6V and 12V AGM top terminal blocs - 25Ah to 2000Ah nominal capacity Ideal for: • Telecom wireless and wireline applications • Industry and process controls • Emergency lighting systems • IT network operations and data centers • Electric utility / switchgear...
 |
 |
Valve regulated lead-acid battery (VRLA) 345 - 2 180 Ah | msEndur II series C&D Technologies
msEndur II The True Long-Life Battery™ The msEndur II is the latest advancement in battery technology with enhanced features for TEL applications. By combining the service life reliability of a flooded...
 |
 |
Valve regulated lead-acid battery (VRLA) Camden Electronics
6V and 12V VRLA Batteries BEL Absorbent Glass Matt (AGM) batteries using separator construction Acid paste contained in AGM giving non-spillable,...
 |
 |
Valve regulated lead-calcium battery 24 V, 1.2 Ah | NBBH 2401 J. Schneider Elektrotechnik
battery module product features - mounting position optional (not standing on the head) - mechanically strong ABS-container - certified by VdS and Underwriters Laboratories - Valve-regulated design with nearly 100% gas recombination during float charging...
 |
 |
Stationary lead battery GroE HOPPECKE
The GroE single cell batteries are vented stationary batteries with liquid electrolyte (diluted sulphuric acid). Based on the structure of the plates as lamella corpus the battery has an extreme high reaction surface. This characteristic is corresponding to the very low internal resistance and an excellent high current behaviour. HOPPECKE GroE batteries...
 |
 |
HGXL Series: 2V Stationary Batteries Designed Service Life :15 years in Float Service (25℃) • Safety No electrolyte leakage will occur from terminals or case of any HGXL Batteries ensuring safe and efficient operation. • Maintenance-free There is no need to replenish with water thanks...
 |
 |
Lead battery for cyclic applications 2 - 12 V | PG Long Life Power-Sonic
* Absorbent Glass Mat (AGM) technology for superior performance. * Thick plate design and efficient gas recombination that yield a design life expectancy of 10 years in standby mode. * Superb high-rate discharge characteristics...
 |
 |
Valve regulated lead-acid stationary battery (VRLA) 2 - 12 V, 30 - 3 000 Ah | UXL series YUASA
Valve Regulated Lead-Acid Stationary Batteries UXL SERIES Most reliable with longer life Sirice 1984, the UXL Series battery...
 |
 |
Lead-acid battery 6 V, 8 Ah | PCSM8-6 ZEUS Battery Products
ZEUS PCSM8-6 6V 8Ah Monobloc SLA Battery has been cross-referenced to be compatible and replace Enersys Hawker Cyclon 0859-0012 sealed lead acid battery. This 3 cell battery is rated at 6V 8.0Ah. The ZEUS PCSM8-6 Monobloc SLA Battery offers a long service life, rugged construction, extreme temperature performance, fast recharge, high...
 |
 |
High performance lead battery Hyb Battery
HYB produces cell and battery pack with out-sourced charger and...
 |
 |
Valve regulated lead-acid stationary battery (VRLA) 100 - 3 250 Ah, 2 V | OPzV-Cells BAE
Stationary Batteries Power Generation...
 |
 |
Lead-acid battery Fine Dragon Technology
Offer the maintenance free lead-acid batteries to meet your deivices and vehicles, customized requirement...
 |
  |
Lead–acid battery charger 20 A, 12 V | 2945 Mascot
3-step charge control with timer High efficiency (> 83...
 |
 |

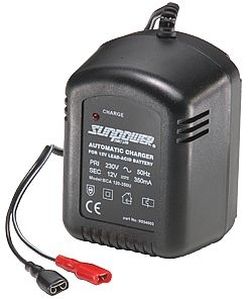

Lead–acid battery charger 12 V, 1.3 - 3.5 Ah | BCA120-350 Sunpower UK
BCA120-350 - 4.2VA 12V 350mA Constant Voltage SLA Battery Charger Suitable for charging 1.3-3.5Ah sealed lead-acid batteries....
 |
 |
VRLA battery module for DC UPS 12 V, 7 Ah | UZK12.071 PULS Power
Battery Module Battery module for DC-UPS Maintanance...
 |
 |
Lead–acid battery charger 13.8 - 14.5 V, 3.5 - 4 A | SNP-L series Skynet Electronic
Lead Acid Battery Charger Description: * Universal...
 |
 |
Lead–acid battery charger 5 - 29 V, 60 W, RoHS | ALE2902M ELC
ALE2902M / 60Watts 5 to 29V 2,5A to 24V 3,5A to 12V 4A to 5V and lead acid battery charger 12...
 |
 |

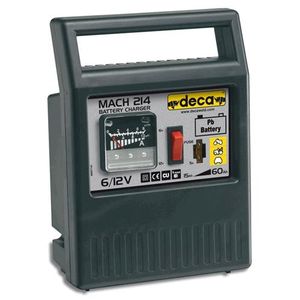

Lead–acid battery charger 4 A, 6 - 12 V | MACH 214 Deca
* For Pb wet batteries charging * Battery voltage...
 |
 |

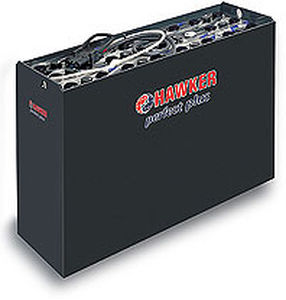

Lead motive power battery 46 - 1 550 Ah | perfect plus series ENERSYS - HAWKER
Hawker perfect plus motive power batteries provide a high level of power and reliability for all industrial truck operations, from simple applications with a low capacity loading up to heavy duty multi-shift work. Hawker perfect plus provides higher efficiency in...
