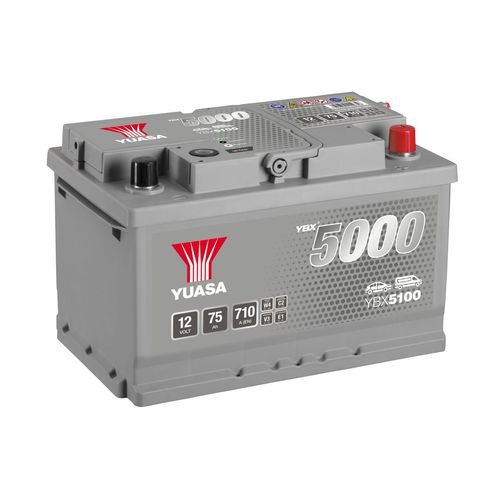

Lead-acid battery YBX5100

12 Vfor electric vehiclesfor automotive applications

Overview
The Yuasa YBX®5000 conventional battery range is the primary choice for standard-start vehicles, delivering high starting power and extended service life. Engineered to meet the demands of modern vehicles, these 12 V lead-acid SMF batteries integrate specialised internal components, unique design features and industry technologies to improve reliability, performance and corrosion resistance.

Key features

• Up to 50,000 engine starts
• Designed for vehicles with standard starting power requirements
• Maximum plate count for superior starting power
• Anti-rollover cover for added safety
• Suitable for cold climates
• First-choice solution for enhanced power and performance
• Meets original equipment (OE) quality, performance and specifications
• Maintenance-free (SMF)
• Supplied charged and ready to install
• Enhanced safety features including integrated flame arrestor and carry handles
• Also used as a 12 V battery in selected electric and hybrid vehicles
• Compliant with Right2Choose equivalent quality certificate regulations

Additional information
Conventional YBX®5000 batteries must not be used as direct replacements for AGM or EFB batteries in vehicles equipped with Start-Stop or regenerative braking systems. Use an appropriate battery selection tool to identify the correct battery technology for your vehicle.

Technical specifications

• Range: YBX 5000 Silver High Performance SMF Batteries
• Nominal voltage: 12 V
• Performance designation: W4-C2-V3-E1
• Capacity (20 h): 75 Ah
• CCA (Cold Cranking Amps): 710 A (EN)
• Length: 278 mm
• Width: 175 mm
• Height: 175 mm
• Terminal type: T1
• Layout: 0
• Container type: LB3 DIN
• Fixing: B13/B14
• Handles: Yes
• End venting: Yes
• Cover type: SMF
• Flame arrestor: Yes
• Technology: Ca/Ca
• Separator type: PE
• Recommended charge rate (A): 5
• VDA rollover test: Yes

Product characteristics / technical details

• Product reference (short number): YBX5100
• Series: YBX®5000 (conventional premium configuration)
• Rated capacity (20 h): 75 Ah
• Starting current (CCA): 710 A (EN)
• Nominal voltage: 12 V
• Internal technology: Calcium/Calcium (Ca/Ca)
• Container: LB3 DIN
• Fixing: B13/B14
• Terminal: T1
• Dimensions (L x W x H): 278 mm x 175 mm x 175 mm
• Layout: 0
• Separator: PE
• Cover: SMF (sealed maintenance free) with integrated flame arrestor and splash guard
• Integrated carry handles: Yes
• Recommended charge: 5 A
• Delivered charged and ready to use
• Intended use: vehicles with standard to high starting power demands; suitable for cold climates
