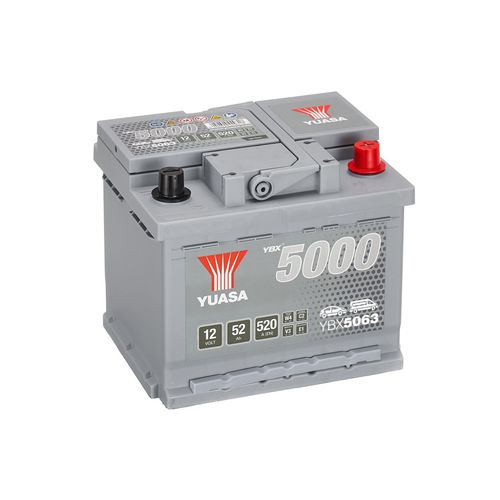

Lead-acid battery YBX5063

12 Vfor automotive applicationsmaintenance-free

Overview
As the primary conventional battery choice for standard-start vehicles, the Yuasa YBX®5000 delivers the highest starting power and long service life. Built to meet the demands of today’s modern vehicles, its specialised internal components, unique design features and industry-leading technologies reduce common causes of battery failure, providing reliability, superior performance and excellent corrosion resistance.

Key features

• Up to 50,000 engine starts
• Designed for vehicles with standard starting power requirements
• Maximum plate area for superior starting performance
• Anti-rollover cover for enhanced safety
• Suitable for cold climates
• Preferred choice for high power and performance
• Quality, performance and specifications equivalent to Original Equipment (OE)
• Completely maintenance-free
• Supplied charged and ready to install
• Designed with enhanced safety features including integrated flame arrestor and carrying handles
• Also used as a 12 V battery in selected electric and hybrid vehicles
• Compliant with the Group Exemption (Right2Choose)

Installation and usage notes
Conventional batteries from the YBX®5000 range must not be installed as replacements for AGM or EFB batteries in vehicles equipped with Start-Stop or regenerative braking systems. Always select the appropriate battery technology according to the vehicle manufacturer’s recommendations.

Manufacturer information
GS Yuasa (Yuasa) draws on over 100 years of battery experience and supplies components to numerous global vehicle manufacturers. The YBX®5000 range is manufactured to meet strict quality and OE-equivalent specifications.

Technical specifications

• Range: YBX 5000 Silver High Performance SMF Batteries
• Nominal voltage: 12 V
• Performance code: W4-C2-V3-E1
• Capacity (20 h): 52 Ah
• Cold Cranking Amps (CCA): 520 A
• Dimensions (L x W x H): 207 mm x 175 mm x 175 mm
• Layout: 0
• Case type: LB1 DIN
• Mounting: B13/B14
• Terminal type: T1
• Handles: Yes
• End venting: Yes
• Cover type: SMF
• Flame arrestor: Yes
• Technology: Ca/Ca
• Separator type: PE
• Recommended charge rate (A): 4
• VDA rollover test: Yes

Downloads

• Product datasheet
• Flooded battery Safety Data Sheet (SDS) for automotive and motorcycle batteries
• Yuasa vehicle battery range brochure
