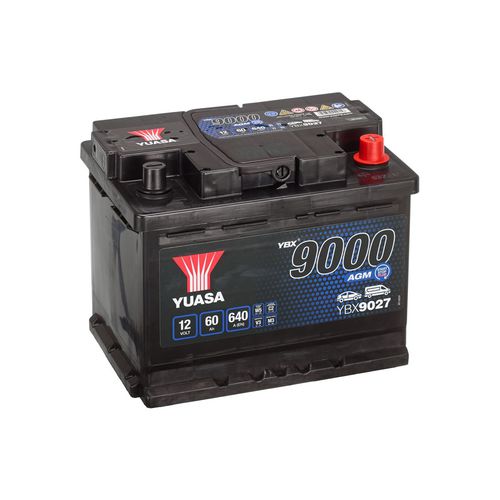

Lead-acid battery YBX9027

12 Vfor electric vehiclesfor automotive applications

Overview
Next-generation 12 V Yuasa YBX®9000 lead‑acid batteries are engineered for vehicles equipped with emissions‑reduction systems such as Start‑Stop and regenerative braking, delivering fuel savings and lower emissions. They are also used as the 12 V battery in certain electric and hybrid vehicles.

These AGM (Absorbent Glass Mat) batteries feature microporous glass‑mat separators and advanced materials to provide superior cycle performance, high charge acceptance for rapid recharge while the engine is running, and additional power capacity to operate onboard electrical systems when the engine is off.

Key features

• Up to 360,000 engine starts
• Designed and developed for vehicles with advanced Start‑Stop, regenerative braking and energy recovery systems
• Reduced fuel consumption and lower emissions
• Leak‑proof construction with no free acid (safety)
• Quality, performance and specifications aligned with original equipment (OE)
• Completely maintenance‑free
• Supplied charged and ready to install
• Built with advanced safety features
• Next‑generation battery technology developed with leading vehicle manufacturers
• Optimized for partial state of charge (PSoC) performance required by advanced vehicles
• Designed for lower self‑discharge rate for extended shelf life
• Compliant with “Right2Choose” equivalent quality parts regulation

Installation & usage notes
If an AGM battery is fitted to a vehicle as standard, it must always be replaced with an AGM battery of equivalent performance and specifications. AGM batteries can be fitted as an upgrade option on many vehicles originally equipped with conventional or EFB batteries. Use appropriate tools and databases to identify the compatible replacement battery for the vehicle.

Manufacturer & experience
With over 100 years of battery experience, GS Yuasa supplies components to many leading vehicle manufacturers (examples cited by the manufacturer include: Aston Martin, BMW, Daihatsu, Daimler, Ford, Fiat, General Motors, Honda, Hyundai, Infiniti, Isuzu, Jaguar Land Rover, Lexus, Mazda, Mercedes‑Benz, Mitsubishi, Nissan, PSA Peugeot Citroën, Renault, Stellantis, Subaru, Suzuki, TATA and Toyota).

Technical specifications

• Range: YBX 9000 AGM Start Stop Plus Batteries
• Nominal voltage: 12 V
• Capacity (20 h): 60 Ah
• CCA (EN): 640 A
• Length: 243 mm
• Width: 175 mm
• Height: 190 mm
• Terminal type: T1
• Layout: 0
• Hold down: B13
• End vent: Yes
• Case type: L2 DIN AGM
• Handles: Yes
• Cover type: VRLA
• Flame arrestor: Yes
• Technology: Ca/Ca VRLA
• Separator type: AGM
• Recommended charge rate (A): 4.2
• Performance marking: W5_C2_V3_M3
• VDA rollover test: Yes
