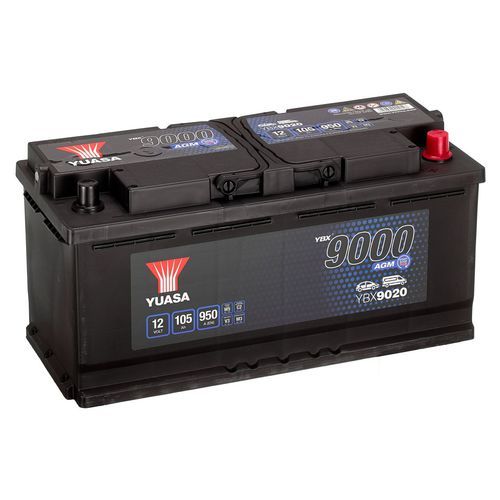

Lead-acid battery YBX9020

12 Vfor electric vehiclesfor automotive applications

Description
Yuasa YBX®9000 12 V lead-acid batteries of the next generation are engineered for vehicles equipped with emissions-reduction systems such as Start‑Stop, regenerative braking and kinetic energy recovery. They are also suitable as the 12 V auxiliary battery in selected hybrid and electric vehicles.

Main advantages

• Up to 360,000 engine starts
• Designed for vehicles with advanced Start‑Stop, regenerative braking and energy recovery systems
• Reduced fuel consumption and lower emissions when combined with suitable vehicle systems
• Leak-proof construction with no free acid for maximum safety
• OE-equivalent quality and specifications
• Maintenance-free; supplied charged and ready to install
• Integrated advanced safety features
• Optimised for partial state-of-charge (PSOC) operation
• High charge acceptance for rapid recharge while the engine is running
• Low self-discharge for extended storage life
• Developed in collaboration with leading vehicle manufacturers

Usage notes
If an AGM battery is fitted to a vehicle, it must be replaced with an AGM battery having equivalent performance and specifications. AGM batteries can be offered as an upgrade option where the vehicle was originally equipped with a conventional or EFB battery.

Technical specifications

• Range: YBX 9000 AGM Start Stop Plus Batteries
• Nominal voltage: 12 V
• Capacity (20 h): 105 Ah
• CCA (Cold Cranking Amps): 950 A (EN)
• Length: 394 mm
• Width: 175 mm
• Height: 190 mm
• Terminal type: T1
• Layout (polarity): 0
• Hold-down system: B13
• End vent: Yes
• Case type: L6 DIN AGM
• Handles: Yes
• Cover type: VRLA
• Flame arrestor: Yes
• Technology: Ca/Ca VRLA
• Separator type: AGM
• Recommended charge rate (A): 7.35 A
• Performance indices: W5_C2_V3_M3
• VDA rollover test: Yes
