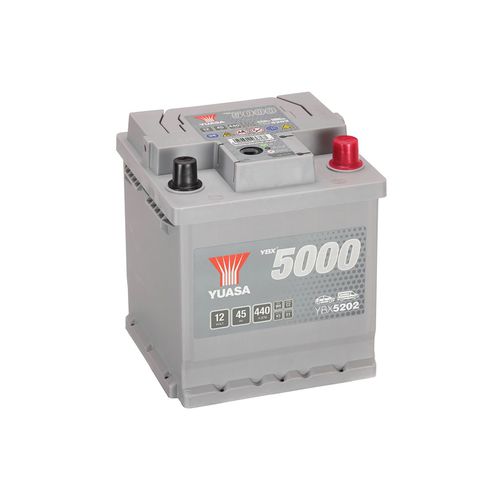

Lead-acid battery YBX5202

12 Vfor electric vehiclesfor automotive applications

Overview
The Yuasa YBX5000 conventional battery for standard‑start vehicles delivers high cold‑start performance and extended service life. Designed with specialised internal components, unique design features and leading technologies to reduce common failure modes, it offers reliable operation and strong corrosion resistance. Supplied charged and maintenance‑free.

Key features

• Up to 50,000 engine starts
• Suitable for vehicles with standard starting power requirements
• Maximum plate count for enhanced starting power
• Anti‑rollover cover for added safety
• Good low‑temperature starting performance
• OE‑equivalent quality, performance and specifications
• Maintenance‑free (SMF), supplied charged and ready to fit
• Enhanced safety features including integrated flame arrestor and transport handles
• Also used as a 12 V battery in selected electric and hybrid vehicles
• Compliant with Right2Choose group exemption

Specifications
Range: YBX 5000 Silver High Performance SMF Batteries
Nominal voltage: 12 V
Performance code: W4-C2-V3-E1
Capacity (20 h): 45 Ah
CCA: 440 A (EN)
Length: 175 mm
Width: 175 mm
Height: 190 mm
Terminal type: T1
Layout: 0
Case type: L0 DIN
Hold down: B13
Handles: Yes
End vent: Yes
Cover type: SMF
Flame arrestor: Yes
Technology: Ca/Ca
Separator type: PE
Recommended charge rate: 3 A
VDA roll‑over test: Yes

Technical details / product data

• Short product model (part number): YBX5202
• Displayed SKU reference: YBX5202-045
• Range: YBX 5000 Silver High Performance SMF Batteries
• Nominal voltage: 12 V
• Capacity (20 h): 45 Ah
• Cold cranking amps (CCA): 440 A (EN)
• Dimensions (L × W × H): 175 mm × 175 mm × 190 mm
• Terminal type: T1
• Case type: L0 DIN
• Hold down: B13
• Electrode technology: Ca/Ca
• Separator: PE
• Safety features: flame arrestor, anti‑rollover cover, integrated firewall
• Integrated transport handles
• Recommended charge rate: 3 A
• VDA roll‑over test: yes

Compatibility / Notes
YBX5000 conventional batteries should not be used as direct replacements for AGM or EFB batteries in vehicles equipped with Start‑Stop or regenerative braking systems. For such vehicles, use the battery type recommended by the vehicle manufacturer. Use the Yuasa battery selector to identify the correct battery for each vehicle.
