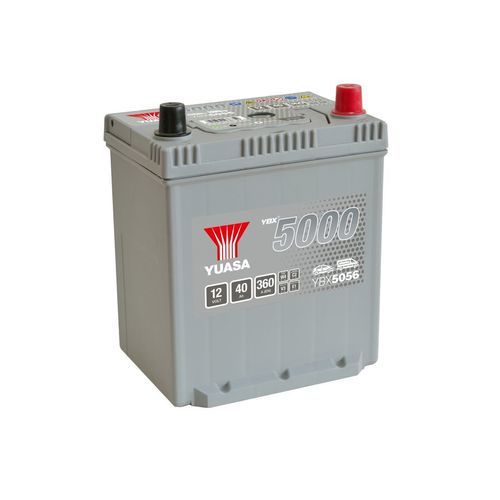

Lead-acid battery YBX5056

12 Vfor electric vehiclesfor automotive applications

Product description
As the first‑choice conventional battery for standard‑start vehicles, Yuasa YBX5000 batteries deliver the highest starting power and the longest available service life. As with all Yuasa 12 V conventional lead‑acid batteries, they are manufactured to meet the demands of modern vehicles.

Specialised internal components, unique design features and industry‑leading technologies help counteract the root causes of battery failure, delivering superior reliability, performance and exceptional corrosion resistance.

Key points

• Up to 50,000 engine starts
• For vehicles with standard starting power requirements
• Maximum plate count for superior starting power
• Anti‑rollover cover for increased safety
• Ideal for cold climates
• First‑choice solution for superior power and performance
• Quality, performance and original equipment (OE) specifications
• Completely maintenance‑free
• Supplied charged and ready to install
• Designed with enhanced safety features including an integrated flame arrestor and carrying handles
• Also used as a 12 V battery in selected electric and hybrid vehicles
• Complies with the Right2Choose category exemption

Notes
Conventional batteries such as the YBX5000 range must not be fitted as replacements for AGM or EFB batteries in vehicles equipped with emissions‑reduction systems like Start‑Stop or regenerative braking. Use the Yuasa battery lookup tool to identify the correct battery options for your vehicle.

Manufacturer
With over 100 years of experience in batteries, GS Yuasa is an original equipment supplier to many global vehicle manufacturers (Aston Martin, BMW, Daimler, Ford, Honda, Hyundai, Jaguar Land Rover, Lexus, Mazda, Mercedes‑Benz, Mitsubishi, Nissan, PSA/Peugeot Citroën, Renault, Stellantis, Subaru, Suzuki, TATA, Toyota, etc.).

Technical specifications

• Range: YBX 5000 Silver High Performance SMF Batteries
• Nominal voltage: 12 V
• Performance marking: W4-C2-V3-E1
• Capacity (20 h): 40 Ah
• CCA (Cold Cranking Amps): 360 A
• Length: 187 mm
• Width: 137 mm
• Height: 223 mm
• Terminal type: T1/T3
• Layout: 0
• Container type: B19 JIS
• Mounting: B1
• Handles: Yes
• End vent: Yes
• Cover type: Flat SMF
• Flame arrestor: Yes
• Technology: Ca/Ca
• Separator type: PE
• Recommended charge rate (A): 3 A
• VDA rollover test: Yes
