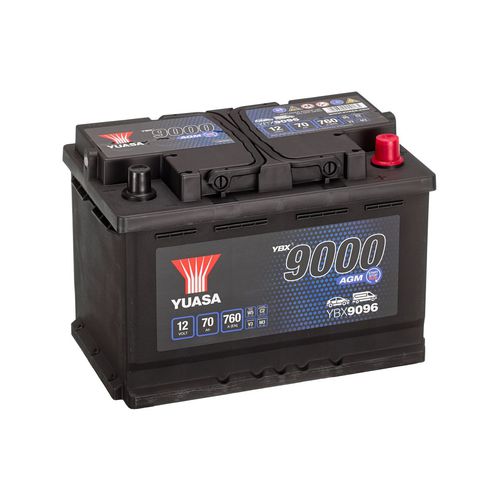

Lead-acid battery YBX9096

12 Vfor electric vehiclesfor automotive applications

Overview
The 12 V Yuasa YBX9000 next-generation lead-acid batteries are engineered for vehicles equipped with emissions-reduction systems such as Start-Stop and regenerative braking. These AGM (Absorbent Glass Mat) batteries deliver improved cycle life, high charge acceptance and additional power for onboard accessories when the engine is off. They are also suitable as a 12 V battery in certain electric and hybrid vehicles.

Key features

• Up to 360,000 engine starts (application dependent)
• Designed for Start-Stop, regenerative braking and energy recovery systems
• Contributes to reduced fuel consumption and lower emissions
• Leakproof construction with no free acid (VRLA/AGM)
• OE quality and specification compliance
• Maintenance-free design
• Supplied charged and ready to install
• Advanced safety features
• Optimised for partial state-of-charge performance
• Low self-discharge for extended shelf life
• Technology developed in collaboration with OEM vehicle manufacturers

Applications
Intended for passenger cars and light commercial vehicles with Start-Stop and energy recovery systems; also suitable as a 12 V battery in some electric and hybrid vehicles.

Installation and usage notes

• If a vehicle is factory-equipped with an AGM battery, it should be replaced with an AGM battery with the same performance and specifications.
• AGM batteries can serve as an upgrade option to replace conventional or EFB batteries on many vehicles; use a compatibility/selection tool to validate the correct option.
• Designed for high charge acceptance while the engine is running to enable rapid recharge during operation.

Technical characteristics / specifications

• Range: YBX 9000 AGM Start Stop Plus Batteries
• Nominal voltage: 12 V
• Capacity (20 h): 70 Ah
• CCA (Cold Cranking Amps): 760 A (EN)
• Length: 278 mm
• Width: 175 mm
• Height: 190 mm
• Terminal type: T1
• Layout: 0
• Hold down / fixing: B13
• End venting: Yes
• Case type: L3 DIN AGM
• Handles: Yes
• Cover type: VRLA
• Flame arrestor: Yes
• Technology: Ca/Ca VRLA
• Separator type: AGM
• Recommended charge rate (A): 4.9 A
• Performance marking: W5_C2_V3_M3
• VDA rollover test: Yes
