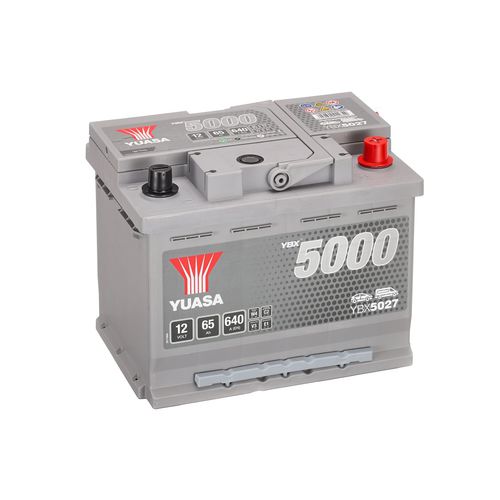

Lead-acid battery YBX5027

12 Vfor electric vehiclesfor automotive applications

Description
The YBX®5000 is a conventional 12V lead‑acid starter battery designed for vehicles with standard ignition systems. Specified internal components, dedicated design features and proven manufacturing technologies provide high cranking power, extended service life and improved corrosion resistance for conventional automotive use.

Main features

• Up to 50,000 engine starts
• Suitable for vehicles with high power demand
• Oversized plates for superior starting performance
• Anti‑rollover cover for enhanced safety
• Suitable for cold climates
• OE quality, performance and specifications
• Sealed maintenance‑free design (SMF)
• Supplied charged and ready to install
• Enhanced safety features including integrated flame arrestor and carrying handles
• Also used as a 12V battery in selected electric and hybrid vehicles
• Complies with category exemption (Right2Choose)

Warnings
Conventional batteries such as the YBX®5000 must not be used as replacements for AGM or EFB batteries in vehicles equipped with Start‑Stop or regenerative braking systems. Use an appropriate battery finder to select the correct battery for the vehicle.

Technical specifications

• Range: YBX 5000 Silver High Performance SMF Batteries
• Rated voltage: 12 V
• Performance code: W4-C2-V3-E1
• Capacity (20 h): 65 Ah
• CCA: 640 A
• Length: 243 mm
• Width: 175 mm
• Height: 190 mm
• Terminal type: T1
• Layout: 0
• Case type: L2 DIN
• Fixing: B13/B14
• Handles: Yes
• End venting: Yes
• Cover type: SMF
• Flame arrestor: Yes
• Technology: Ca/Ca
• Separator type: PE
• Recommended charge rate (A): 5
• VDA rollover test: Yes
