Lead-acid battery YBX9115

12 Vfor electric vehiclesfor automotive applications

Overview

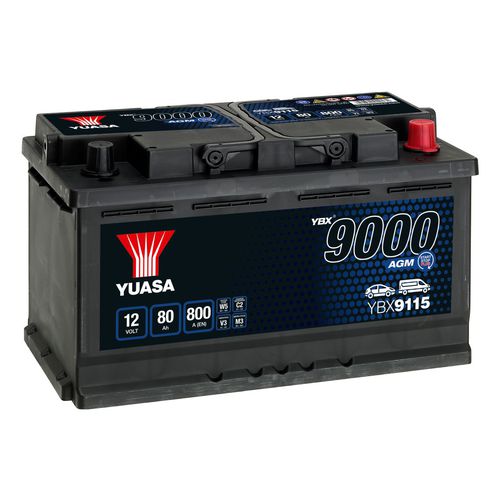

The Yuasa YBX®9000 Start/Stop Plus 12 V AGM battery is engineered for vehicles equipped with Start‑Stop systems, regenerative braking and energy recovery. It delivers enhanced cycle life, high charge acceptance for rapid replenishment while the engine runs, and additional power for electrical loads when the engine is off. Supplied charged and ready for installation.

Key benefits

• Up to 360,000 engine starts
• Optimized for Start‑Stop, regenerative braking and energy recovery systems
• High charge acceptance for fast recharge during driving
• Spill‑proof VRLA construction with no free acid
• Maintenance‑free; delivered charged and ready to use
• Low self‑discharge for extended storage life
• Developed with OEMs and compliant with OE specifications

Recommended applications
Replacement recommended with an AGM battery of equivalent specification when the original equipment is AGM. Can be used as an upgrade on many vehicles replacing conventional or EFB batteries, subject to compatibility. Check battery location, battery registration/BCM programming requirements and manufacturer instructions to ensure correct Start‑Stop system operation.

Technical specifications

• Model: YBX®9000
• SKU / Short reference: YBX9115
• Range: YBX 9000 AGM Start Stop Plus Batteries
• Nominal voltage: 12 V
• Capacity (20 h): 80 Ah
• CCA (Cold Cranking Amps): 800 A
• Length: 317 mm
• Width: 175 mm
• Height: 190 mm
• Terminal type: T1
• Layout: 0
• Hold down: B13
• End venting: Yes
• Case type: L4 DIN AGM
• Handles: Yes
• Cover type: VRLA
• Flame arrestor: Yes
• Technology: Ca/Ca VRLA
• Separator type: AGM
• Recommended charge rate: 5.6 A
• Performance marking: W5_C2_V3_M3
• VDA rollover test: Yes
