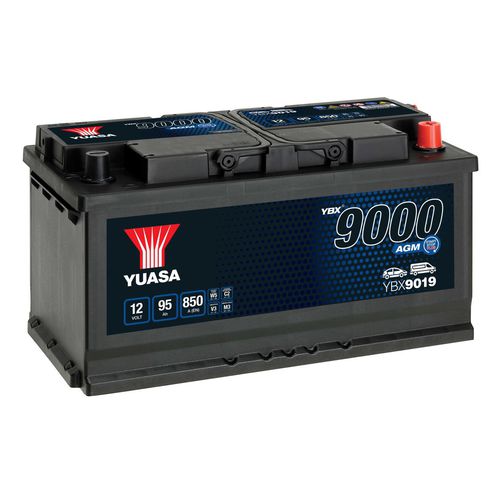

Lead-acid battery YBX9019

12 Vfor electric vehiclesfor automotive applications

Description
Yuasa YBX®9000 series 12 V lead-acid batteries of the next generation are engineered for vehicles equipped with emission-reduction systems such as Start-Stop, regenerative braking and energy recovery. They support fuel savings and lower emissions and can be used as the 12 V battery in selected electric and hybrid vehicles.

Key features / Advantages

• Up to 360,000 engine starts (series figure)
• Designed for Start-Stop, regenerative braking and energy recovery systems
• Improved charge acceptance for rapid recharge while the engine is running
• Extra power reserve to supply electrical accessories when the engine is off
• Spill-proof VRLA construction; no free acid
• OE-quality specifications
• Maintenance-free; supplied charged and ready to install
• Optimised for partial state of charge (SOC) operation
• Low self-discharge for extended storage life

Technical specifications

• Series: YBX®9000 AGM Start-Stop Plus
• Model / short ref: YBX9019
• Nominal voltage: 12 V
• Capacity (20 h): 95 Ah
• CCA (EN): 850 A
• Dimensions (L x W x H): 353 x 175 x 190 mm
• Terminal type: T1
• Layout: 0
• Hold-down: B13
• End vent: Yes
• Case type: L5 DIN AGM
• Handles: Yes
• Cover type: VRLA
• Flame arrestor: Yes
• Technology: Ca/Ca VRLA (AGM)
• Separator type: AGM (glass-mat)
• Recommended charge rate (A): 6.65
• Performance marking: W5_C2_V3_M3
• VDA rollover test: Yes
