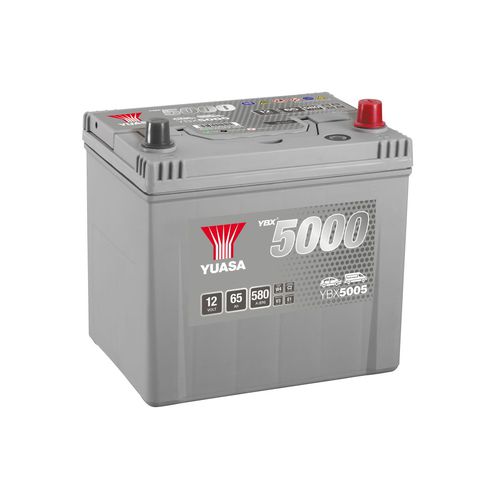

Lead-acid battery YBX5005

12 Vfor electric vehiclesfor automotive applications

Overview
The YBX5005 (YBX®5000 range) is a conventional starter battery designed for standard-start vehicles, delivering high cold-start performance and long service life. Engineered with specialized internal components, dedicated design features and industry technologies to enhance reliability, corrosion resistance and overall performance.

Key points

• Up to 50,000 engine starts.
• Designed for vehicles with standard starting power demands.
• Maximum plate count for superior starting performance.
• Rollover-resistant cover for increased safety.
• Suitable for cold climates.
• Supplied charged and ready to install; maintenance-free.
• Integrated carry handles for easier handling.
• Built-in safety devices: flame arrestor, end venting.
• Not intended as a replacement for AGM or EFB batteries in vehicles equipped with Start-Stop or regenerative braking systems; check vehicle compatibility.

Additional information
Manufactured by a recognized OEM supplier to meet original equipment quality and specifications. Installation instructions, warnings and detailed fitting information are available in the product technical instruction sheet (professional access recommended).

Characteristics / technical specifications

• Model: YBX5005
• Brand: Yuasa
• Range: YBX 5000 Silver High Performance SMF
• Nominal voltage: 12 V
• Capacity (20 h): 65 Ah
• CCA (Cold Cranking Amps): 580 A (EN)
• Performance codes: W4-C2-V3-E1
• Dimensions (L x W x H): 231 mm x 173 mm x 225 mm
• Case type: D23 JIS
• Layout: 0
• Terminal type: T1
• Cover type: Flat SMF
• Flame arrestor: Yes
• End venting: Yes
• Handles: Yes
• Technology: Ca/Ca (Calcium/Calcium)
• Separator type: PE
• Recommended charge rate: 5 A
• VDA rollover test: Passed
• Usage note: Also fitted as a 12 V battery in some electric and hybrid vehicles—verify specific compatibility
• SKU / short reference: YBX5005 (full shop SKU: YBX5005-065)
