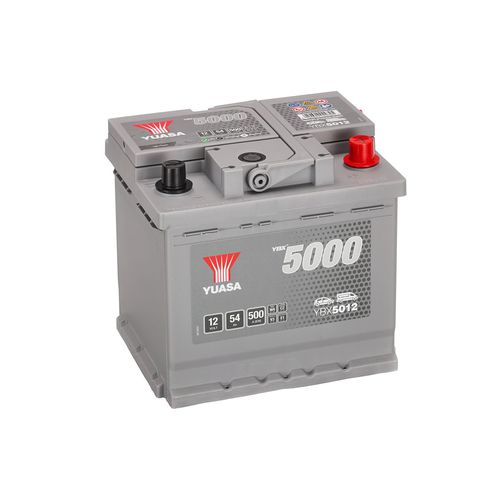

Lead-acid battery YBX5012

12 Vfor electric vehiclesfor automotive applications

Overview
As the primary conventional battery choice for standard-ignition vehicles, the YBX®5000 range delivers high cold-start power and extended service life. Specialized internal components, dedicated design features and industry-leading technologies improve reliability, performance and corrosion resistance for demanding modern vehicle applications.

Key features

• Up to 50,000 engine starts
• Designed for vehicles with standard starting power requirements
• Maximum plate count for superior starting performance
• Anti-rollover cover for enhanced safety
• Suitable for cold climates
• Preferred solution for high starting power and consistent performance
• Quality and specifications aligned with original equipment (OE)
• Completely maintenance-free
• Supplied charged and ready to install
• Designed with enhanced safety features including integrated flame arrestor and carrying handles
• Can be used as a 12 V battery in selected electric and hybrid vehicles
• Compliant with the Right2Choose equivalent parts regulation

Warnings
Conventional batteries from the YBX®5000 range must not be used as direct replacements for AGM or EFB batteries in vehicles equipped with Start‑Stop systems or regenerative braking. Use an appropriate battery-finder tool to identify the correct option for vehicles with these systems.

Manufacturer and compatibility
GS Yuasa, with over 100 years of expertise, supplies components to many global OEMs including: Aston Martin, BMW, Daihatsu, Daimler, Ford, Fiat, General Motors, Honda, Hyundai, Infiniti, Isuzu, Jaguar Land Rover, Lexus, Mazda, Mercedes-Benz, Mitsubishi, Nissan, PSA Peugeot Citroën, Renault, Stellantis, Subaru, Suzuki, TATA and Toyota.

Specification table (excerpt)
Range: YBX 5000 Silver High Performance SMF Batteries
Nominal voltage: 12 V
Performance rating: W4-C2-V3-E1
Capacity (20 h): 54 Ah
CCA: 500 A
Length: 207 mm
Width: 175 mm
Terminal type: T1
Height: 190 mm
Layout: 0
Case type: L1 DIN
Hold-down: B13
Handles: Yes
End venting: Yes
Cover type: SMF
Flame arrestor: Yes
Technology: Ca/Ca
Separator type: PE
Recommended charge rate (A): 4
VDA rollover test: Yes

Technical characteristics / specifications

• Range: YBX 5000 Silver High Performance SMF Batteries
• Nominal voltage: 12 V
• Capacity (20 h): 54 Ah
• CCA (EN): 500 A
• Dimensions (L x W x H): 207 mm x 175 mm x 190 mm
• Terminal type: T1
• Case type: L1 DIN
• Hold-down: B13
• Layout: 0
• Handles: Yes
• End venting: Yes
• Cover type: SMF
• Flame arrestor: Yes
• Technology: Ca/Ca
• Separator type: PE
• Recommended charge rate: 4 A
• VDA rollover test: Yes
