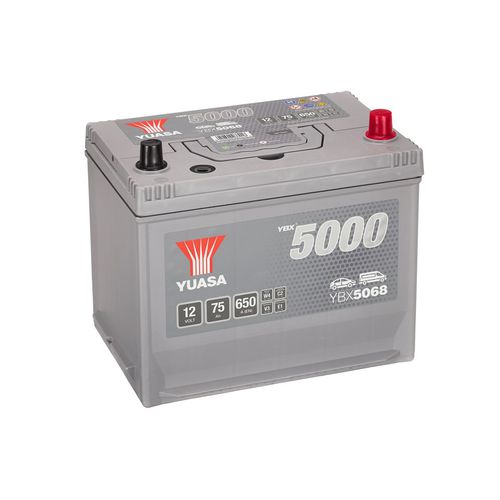

Lead-acid battery YBX5068

12 Vfor electric vehiclesfor automotive applications

Overview
As the conventional choice for standard-start vehicles, Yuasa YBX5000 batteries deliver high starting power and long service life. Like all Yuasa 12 V conventional lead-acid batteries, they are manufactured to meet the demands of modern vehicles.

Specialised internal components, unique design features and leading industry technologies help counter common causes of battery failure, providing reliable performance and excellent corrosion resistance.

Main features

• Up to 50,000 engine starts
• Designed for vehicles with standard starting power requirements
• Maximum plate count for superior starting performance
• Flame-arrestor/anti-rollover cover for increased safety
• Suitable for cold climates
• OE-level quality, performance and specifications
• Completely maintenance-free
• Supplied charged and ready to use
• Designed with enhanced safety features including integrated flame barrier and carrying handles
• Also used as 12 V batteries in some electric and hybrid vehicles
• Compliant with the Right2Choose equivalent-parts certification

Notes for use
Conventional batteries from the YBX5000 range must not be installed as replacements for AGM or EFB batteries in vehicles equipped with Start-Stop or regenerative braking systems. Use the appropriate battery search tool to identify the correct battery option for your vehicle.

Drawing on more than 100 years of experience in the battery sector, GS Yuasa supplies components to many international vehicle manufacturers.

Technical features / specifications

• Range: YBX 5000 Silver High Performance SMF Batteries
• Model / SKU: YBX5068
• Nominal voltage: 12 V
• Performance marking: W4-C2-V3-E1
• Capacity (20 h): 75 Ah
• CCA (Cold Cranking Amps): 650 A
• Length: 269 mm
• Width: 174 mm
• Height: 225 mm
• Terminal type: T1
• Layout: 0
• Case type: D26 + BH JIS
• Hold down: B9
• Handles: Yes
• End venting: Yes
• Cover type: Flat SMF
• Flame arrestor: Yes
• Technology: Ca/Ca
• Separator type: PE
• Recommended charge rate: 5 A
• VDA rollover test: Yes
