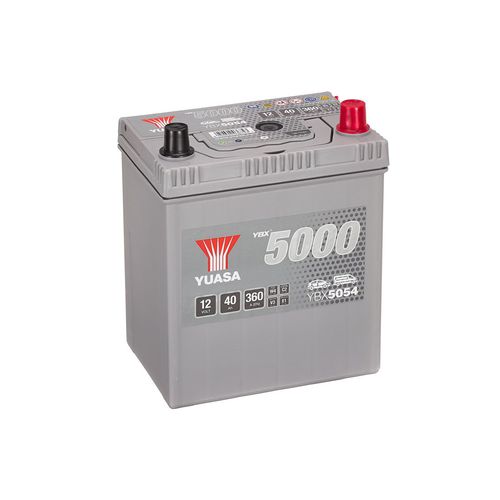

Lead-acid battery YBX5054

12 Vfor electric vehiclesfor automotive applications

Description
As the primary conventional battery choice for standard-start vehicles, the Yuasa YBX5000 series delivers class-leading starting power and long service life. Built to meet the demands of modern vehicles, these 12 V lead-acid batteries combine specialised internal components, unique design features and industry-leading technologies to reduce common failure causes and provide reliable performance with strong corrosion resistance.

Key features

• Up to 50,000 engine starts
• For vehicles with standard starting power requirements
• Maximum plate area for superior starting power
• Anti-rollover lid for enhanced safety
• Suitable for cold climates
• Preferred solution for high power and performance
• Original equipment (OE) quality, performance and specifications
• Maintenance-free
• Supplied charged and ready to install
• Enhanced safety features including integrated flame arrestor and carry handles
• Also used as a 12 V battery in selected electric and hybrid vehicles
• Compliant with the Right2Choose equivalent parts exemption

Usage notes
Conventional batteries such as the YBX5000 range must not be fitted as replacements for AGM or EFB batteries in vehicles equipped with Start-Stop, regenerative braking or other emissions-reduction systems. Use the Yuasa battery selector tool to determine the correct battery option for your vehicle.

About the manufacturer
With over 100 years of battery experience, GS Yuasa is an OEM supplier to leading global vehicle manufacturers including Aston Martin, BMW, Daihatsu, Daimler, Ford, Fiat, General Motors, Honda, Hyundai, Infiniti, Isuzu, Jaguar Land Rover, Lexus, Mazda, Mercedes‑Benz, Mitsubishi, Nissan, PSA/Peugeot Citroën, Renault, Stellantis, Subaru, Suzuki, TATA and Toyota.

Characteristics / technical specifications

• Range: YBX 5000 Silver High Performance SMF Batteries
• Nominal voltage: 12 V
• Performance indices: W4-C2-V3-E1
• Capacity (20 h): 40 Ah
• CCA (Cold Cranking Amps): 360 A (EN)
• Model: YBX5054
• Dimensions (L x W x H): 187 mm x 127 mm x 227 mm
• Layout: 0
• Container type: B19 JIS
• Mounting system: N
• Terminal type: T1 / T3
• Handles: Yes
• End vent: Yes
• Cover type: Flat SMF
• Flame arrestor: Yes
• Technology: Ca/Ca
• Separator type: PE
• Recommended charge rate (A): 3 A
• VDA rollover test: Yes
