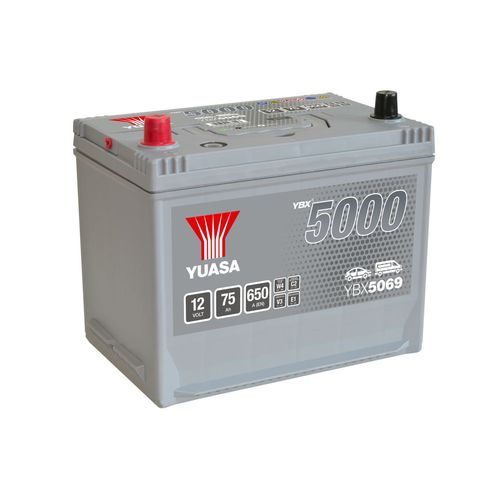

Lead-acid battery YBX5069

12 Vfor electric vehiclesfor automotive applications

Summary
As the first-choice conventional battery for standard-start vehicles, Yuasa YBX5000 batteries deliver high starting power and long service life. Designed to meet the demands of modern vehicles, they incorporate specialised internal components, design features and industry technologies to improve reliability, performance and corrosion resistance.

Main features

• Up to 50,000 engine starts
• Suitable for vehicles with standard starting power requirements
• Maximised plate count for superior starting power
• Anti-rollover cover for increased safety
• Reliable cold-weather performance
• Recommended choice for enhanced power and performance
• Quality and specifications meeting original equipment (OE) standards
• Completely maintenance-free
• Supplied charged and ready to install
• Designed with enhanced safety features, including integrated flame arrestor and carry handles
• Can be used as a 12 V battery in some electric and hybrid vehicle applications (vehicle dependent)

Important notes
Conventional batteries from the YBX5000 range must not be used as replacements for AGM or EFB batteries in vehicles equipped with Start-Stop systems or regenerative braking. Use a vehicle-specific lookup tool or manufacturer documentation to select the correct battery for a given application.

Technical specifications

• Range: YBX 5000 Silver High Performance SMF Batteries
• Model: YBX5069
• Nominal voltage: 12 V
• Performance indices: W4-C2-V3-E1
• Capacity (20 h): 75 Ah
• CCA (cold cranking current): 650 A
• Length: 269 mm
• Width: 174 mm
• Height: 225 mm
• Terminal type: T1
• Layout: 1
• Case type: D26 + BH JIS
• Hold-down system: B9
• Handles: Yes
• End vent: Yes
• Cover type: Flat SMF
• Flame arrestor: Yes
• Technology: Ca/Ca
• Separator type: PE
• Recommended charge rate: 5 A
• VDA rollover test: Yes
