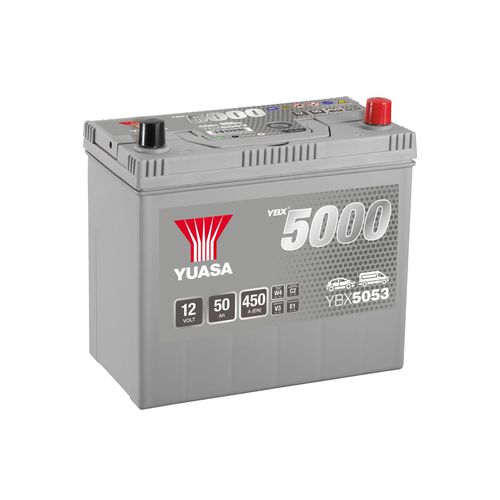

Lead-acid battery YBX5053

12 Vfor electric vehiclesfor automotive applications

Overview
As the primary conventional battery choice for standard-start vehicles, the Yuasa YBX5000 range delivers highest starting power and extended service life. Specialized internal components, unique design features and industry-leading technologies enhance reliability, performance and corrosion resistance. These batteries are supplied charged and ready to fit and are fully maintenance-free.

Key features

• Up to 50,000 engine starts
• Designed for vehicles with standard starting power requirements
• Maximum plate count for superior starting performance
• Anti-rollover cover for enhanced safety
• Suitable for cold climates
• Preferred choice for higher starting power and performance
• Quality, performance and original equipment (OE) specification
• Completely maintenance-free
• Supplied charged and ready to use
• Designed with enhanced safety features including integrated flame arrestor and carrying handles
• Can be used as a 12 V battery in certain electric and hybrid vehicles (where applicable)
• Complies with the Right2Choose equivalent parts regulation

Installation notes
Conventional YBX5000 batteries must not be fitted as direct replacements for AGM or EFB batteries in vehicles equipped with Start-Stop systems or regenerative braking. Use the appropriate battery lookup tool to identify the correct battery option for a given vehicle.

Specification table
Range: YBX 5000 Silver High Performance SMF Batteries
Nominal voltage: 12 V
Performance indices: W4-C2-V3-E1
Capacity (20 h): 50 Ah
CCA: 450 A
Length: 238 mm
Width: 129 mm
Terminal type: T1/T3
Height: 225 mm
Layout: 0
Case type: B24 JIS
Retention system: N
Handles: Yes
End venting: Yes
Cover type: Flat SMF
Flame arrestor: Yes
Technology: Ca/Ca
Separator type: PE
Recommended charge rate (A): 4
VDA rollover test: Yes

Technical features / specifications

• Range: YBX 5000 Silver High Performance SMF Batteries
• Nominal voltage: 12 V
• Performance marking: W4-C2-V3-E1
• Capacity (20 h): 50 Ah
• CCA (Cold Cranking Amps): 450 A (EN)
• Dimensions: Length 238 mm, Width 129 mm, Height 225 mm
• Layout: 0
• Case type: B24 JIS
• Retention system: N
• Handles: Yes
• End venting: Yes
• Cover type: Flat SMF
• Flame arrestor: Yes
• Terminal technology: Ca/Ca
• Separator type: PE
• Recommended charge rate: 4 A
• VDA rollover test: Yes
