The laboratory hotplates and stirrers from SI Analytics demonstrate the kind of creative design that results when practical laboratory experience is paired with the most advanced materials know-how.
Our variety of 4 laboratory hotplates enables speedy heating up (SLK 1, SLK 2), with a temperature control if required (SLK 2-T, SLK 6).
The laboratory stirrer (SLR) is the optimum solution for a careful to intense mixing of liquids. It can also be used for speedy heating up or controlled temperature adaptation.
Both product families have the benefits of the glass ceramic heating surface which as proven in millions of households. Chemical resistance, a high sur face quality, and a resistance to temperature shocks of more than 700 °C provide the user with maximum benefits compared to conventional heating surface materials. The poreless smooth surface enables even most stubborn dirt to be easily removed. The high infrared permeability ensures that the heating energy is transferred quickly and with a low loss rate, i.e. it heats liquids faster than other heating surface materials, and thus saves energy.
|
|
|
|
|
|
Stuart CB/SB162 Hotplate stirrers
Choice of robust aluminium or chemically resistant ceramic tops
Advanced safety features:
- Flashing "Hot" warning light
- Spillproof design
- Independent safety circuit to protect against overheating
Microprocessor control for accurate temperature setting
Stylish and economical general purpose stirrer hotplates designed with safety as well as performance in mind. The cast aluminium body is shaped for stability and helps deflect spills away from the controls and the user. The "Hot" warning light will flash whenever the plate temperature is above 50°C even when the hotplate is turned off and connected to the mains. Independent safety circuit prevents overheating in the event of control failure and internal electronic components are protected against corrosion. Powerful magnets and motor give stirring speed up to 1500rpm and volumes up to 15 litres.
Model CB162 has a glass ceramic top which has excellent chemical and temperature resistance. The surface is easy to clean and the thermal properties allow very high plate temperatures while ensuring the edges stay cooler, reducing the chance of accidental burns. The white surface ensures good visibility of colour changes.
Model SB162 has a robust aluminium/silicon alloy top plate for good heat transmission. A 700W element gives rapid heating and ensures even temperature distribution across the whole of the plate.
Fitting for retort rod and supplied with 2 x 25mm PTFE coated stir bars.
|
|
Extremely flat electronic multipoint magnetic stirrer without moving parts.
For the flexible use in the laboratory.
HMC Cyclone 6
- Electronic multipoint magnetic stirrer with 6 stirring points
- Extremely flat without moving parts
- Microprocessor-controlled
- Elegant design with stainless-steel housing
- 6 synchronically working stirring points, for example 6 x 1 litre Erlenmeyer flasks
- Ideal device for mass screenings
- Speed range 100-1000 rpm
- Hermetically sealed
- Simple operation
- Indestructible
|
|
| ... products without technical information |
| |
|
|
|
|
The laboratory hotplates and stirrers from SI Analytics demonstrate the kind of creative design that results when practical laboratory experience is paired with the most advanced materials know-how.
Our variety of 4 laboratory hotplates enables speedy heating up (SLK 1, SLK 2), with a temperature control if required (SLK 2-T, SLK 6).
The laboratory stirrer (SLR) is the optimum solution for a careful to intense mixing of liquids. It can also be used for speedy heating up or controlled temperature adaptation.
Both product families have the benefits of the glass ceramic heating surface which as proven in millions of households. Chemical resistance, a high sur face quality, and a resistance to temperature shocks of more than 700 °C provide the user with maximum benefits compared to conventional heating surface materials. The poreless smooth surface enables even most stubborn dirt to be easily removed. The high infrared permeability ensures that the heating energy is transferred quickly and with a low loss rate, i.e. it heats liquids faster than other heating surface materials, and thus saves energy.
|
|
|
|
|
|
Stuart CB/SB162 Hotplate stirrers
Choice of robust aluminium or chemically resistant ceramic tops
Advanced safety features:
- Flashing "Hot" warning light
- Spillproof design
- Independent safety circuit to protect against overheating
Microprocessor control for accurate temperature setting
Stylish and economical general purpose stirrer hotplates designed with safety as well as performance in mind. The cast aluminium body is shaped for stability and helps deflect spills away from the controls and the user. The "Hot" warning light will flash whenever the plate temperature is above 50°C even when the hotplate is turned off and connected to the mains. Independent safety circuit prevents overheating in the event of control failure and internal electronic components are protected against corrosion. Powerful magnets and motor give stirring speed up to 1500rpm and volumes up to 15 litres.
Model CB162 has a glass ceramic top which has excellent chemical and temperature resistance. The surface is easy to clean and the thermal properties allow very high plate temperatures while ensuring the edges stay cooler, reducing the chance of accidental burns. The white surface ensures good visibility of colour changes.
Model SB162 has a robust aluminium/silicon alloy top plate for good heat transmission. A 700W element gives rapid heating and ensures even temperature distribution across the whole of the plate.
Fitting for retort rod and supplied with 2 x 25mm PTFE coated stir bars.
|
|
Extremely flat electronic multipoint magnetic stirrer without moving parts.
For the flexible use in the laboratory.
HMC Cyclone 6
- Electronic multipoint magnetic stirrer with 6 stirring points
- Extremely flat without moving parts
- Microprocessor-controlled
- Elegant design with stainless-steel housing
- 6 synchronically working stirring points, for example 6 x 1 litre Erlenmeyer flasks
- Ideal device for mass screenings
- Speed range 100-1000 rpm
- Hermetically sealed
- Simple operation
- Indestructible
|
|
| ... products without technical information |
| |
Overhead mounted agitator drive:
The overhead drive prevents the escape of any hazardous gases during agitation.
|
|
|
Using a bottom mounted agitator drive, the agitator is hermetically sealed, thus preventing any contamination of the product.
|
|
Magnetic mixing is a way of complete sealed , undisclosed, bear corrosion, Static dead sealing through welding isolative sleeve replace dynamic mechanical sealing, which can completely solve the leaking problem of mechanical sealing. The equipment is mainly applicated for Pharmaceutical, Food machinery heating , resolving the material.
Application range: mixing devices various stainless steel reaction tanks and liquid-compounding tanks.
Working conditions: the places need high-standard sealing such as inflammable explosible, easy to leak
Features:
1. Static dead sealing through welding isolative sleeve replace dynamic mechanical sealing, which can completely solve the leaking problem of mechanical sealing.
2. Simple structure, east to dismantle, easy to clean, no dead space.
3. a mixing unit is installed on the bottom ,which can mix under few matter ,with unique mixing oars, and can be suitable to mix various mediums
|
|
Application range: mixing devices various stainless steel reaction tanks and liquid-compounding tanks.
Working conditions: the places need high-standard sealing such as inflammable explosible, easy to leak
Features:
1. Static dead sealing through welding isolative sleeve replace dynamic mechanical sealing, which can completely solve the leaking problem of mechanical sealing.
2. Simple structure, east to dismantle, easy to clean, no dead space.
3. a mixing unit is installed on the bottom ,which can mix under few matter ,with unique mixing oars, and can be suitable to mix various mediums.
|
|
|
|
|
|

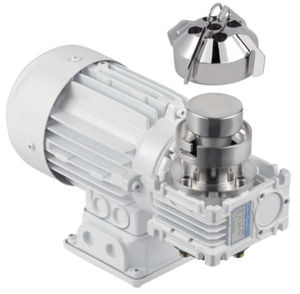

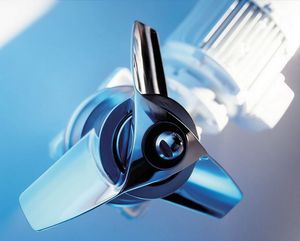

AGIMAG - Magnetically driven agitation - for ultimate leak tightness
Designed to be cleaned and sterilized (in place or in autoclave) and build with FDA components, the AGIMAG® agitators from MIXEL are optimized for all the pharmaceutical, cosmetics and food processing.
INDUSTRIES CONCERNED
Pharmaceuticals, food processing,
light chemicals, cosmetics
APPLICATIONS
* storage
* mixing low viscosity products
* fermentation
PERFORMANCE
From 10 litres to 10,000 litres (enquire for higher
capacities)
High pressure (up to 16 bar)
Up to 150°C
FDA approved MATERIALS
316 L stainless steel polished to Ra < 0.2µm electrolytic
polishing
Bearing blocks made from silicon carbide with no free
silica (other configurations please enquire)
POWER
0.18 to 2.2kW
Transmission by magnetic coupling
MAJOR INNOVATIONS
- tachometer built into agitation head (cleanness,
control, safety by instant stopping of drive)
- clutch device for the magnetic coupling
(maintenance operations made easier)
- compliant with EHEDG cleanability criteria.
|
|
