The Delta Line presented in this catalogue includes electrospindles for high speed milling operations that represent one of the best products available on the world market.
OMLAT has developed this line of electrospindles following the needs of tool machine manufacturers and paying particular attention to the reliability of the products.
Thanks to the study of the working cycles of different machines for aluminium, plastic, wood, composite materials and graphite working OMLAT has been able to design and build proper electrospindles for this kind of operations.
The rotation speed, the power and the torque, the tool attachment, the clamping system and the bearings are all factors that have been carefully considered with the aim to guarantee high performances and reliability of the electrospindles.
|
|
The high speed spindles and electrospindles designed and manufactured by OMLAT are an example of innovation and technical precision from 50 years. This is a consolidated tradition and the basis to establish a relationship of trust with lots of partner companies whose success is a great satisfaction for OMLAT.
The technology of the electrospindle has recently spread over a lot of fields where high speed cutting operations are necessary to spare time, to reduce the costs and to guarantee perfect results and reliability (Wood working, plastic, aluminium, glass, graphite and composite materials). Omlat with its "know-how" is able to follow this continuous technical evolution and to offer spindles and electrospindles for all working operations requiring power, speed, stiffness and application.
OMLAT spindles and electrospindles are a sample of tecnology and precision, a good solution for high quality results.
|
|
For many years OMLAT Spa has been successfully manufacturing liquid cooled electrospindles for wood-working.

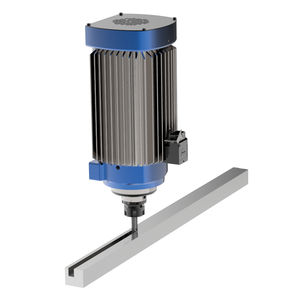

Today Omlat, thanks to new technologies, has developed a new series of electrospindles called DELTA AIR.
DELTA AIR is cooled by an electro-fan fitted on the electrospindle granting low maintenance costs.
The peculiarity however is its design which allows to change the shaft kit (nose, shaft complete with front & back bearings) in only 3 minutes.
This process can be done by an operator without Omlat engineer intervention.
DELTA AIR main characteristics:
-Tool attachment (HSK or ISO)
-Electrospindle nose (LN – long nose or SN – short nose)
-Speed (18000rpm or 24000rpm)
-Poles (2 or 4)
-Voltage (220V or 380V)
-Power (5kW, 7,5kW or 12kW).
|
|
|
3 size of Power (7.5kW - 12kW - 15kW) in only electrospindle that can be to speed 24000rpm or to speed 30000rpm
|
|
The Omlat has planned and realized a line of electrospindles it specifies for workmanships of the light leagues for the industry aeronautical and aerospace American.
The peculiar characteristic of these electrospindles is a little while ago to unite characteristics of power disbursed to the high speed of rotation up to unthinkable.
We list a practical example:
- speed of rotation n 24.000/1
- power (S1/100%) kW 80
- attack utensil HSK A63
Another example realized particularly interesting:
- speed of rotation n 18.000/1
- power (S1/100%) kW 101
- attack utensil HSK A100
attached photo of one of the quoted electrospindles
Such electrospindles allow to work particular decidedly drawn by the full one in times meeting places in comparison to the past, with improvement also of the worked surfaces.
|
|
Omlat has planned and realized a line of electrospindles for granite and marbles/working.
- Lenght: L=557 mm
- Max Speed: n 10.000 min-1
- Max Power (S1/100%): 15 kW
- Max Torque (S1/100%): 24 Nm
- Lubrication of the Bearings: Grease
- Tool Clamping: BT 40 with pneumatic clamping
|
|
They are used for special machining on vertical and horizontal spindle grinding machines (i.e. dovetails, slideways, diets etc..). Surface grinding machines (next to the main spindle), milling-planing machines or transfer machines are often equipped with these electroheads.
Great powers are then used on surface grinders (face grinding with segmental wheels).
|
|

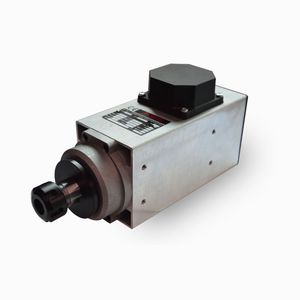

HF-Motor Spindle Type 4025
Features:
Clamping-Ø: 33 mm
Speed range: 5,000 - 60,000 rpm
Power: max. 1,000 W
Torque: max. 4.8 Ncm
Bearing system: 2 x ceramic, 1 x steel, lifetime lubrication
Tool change: via clamping knob
Clamping range: 0.3 - 4.0 mm (1/8")
Cooling system: via fan
|
|
The ECR 11 spindles range have automatic tool changer for routing and engraving machines for glass, stone, marble and granite working.
STATOR: windings featuring double encapsulation
INSULATION CLASS: F or superior
BEARINGS: front: couple of pre loaded bearings with precision
angular contact
rear: couple of pre loaded bearings with precision
angular contact
ROTOR: squirrel-cage rotor.
HOUSING: high resistance extruded aluminium.
BEARING HOUSING: rear and front bearing housing made of cast iron.
MOTOR COOLING: water cooling.
SPEED: 2.800÷15.000 rpm. (12.000 rpm. On request)
POWER: 3 Hp /2,2 kW (4,5 Hp/3,3 kW)
IP CLASS: IP 55
SLEEVE: rotary union for water passage (VEM patent)
TOOL ATTACHMENT: MAS BT 30 OR ISO 30 cone
TOOL CHANGE: pneumatic
UPON REQUEST:Varnishing, different power and polarity.
|
|

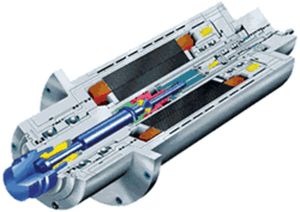

Modern spindle units for effective milling results
Many milling machines - both old and new - have a relatively low maximum speed does have advantages in roughing operations, but are a big drawback to achieving effective feed rates.
Low speed also greatly limits the advantages of modern CNC applications. The results: much longer machining times and loss of valuable production capacities.
We offer a concincing solution for this situation: Pokolm-Voha high-speed spindle systems for the most profitable machining results.
|
|
The electrospindle VITRUM (asynchronous three-phase) is realized with integral shaft for the water passage and it is ideal for bevelling and polighing of glass slabs.
TECHNICAL FEATURES:
STATOR: windings featuring double encapsulation
ISOLATION CLASS: F or superior.
BEARINGS: Front: angular contact ball bearings
Rear: deep groove ball bearings
ROTOR: squirrel-cage rotor
HOUSING: high resistance extruded aluminium
BEARING HOUSINGS: front and rear made of cast iron
COOLING: self-cooling with fan
SPEED: 1.400 - 3.500 rpm.
POWER: 1,5-2,5 Hp./ 1,1-1,8 kW.
IP CLASS: IP55.
UPON REQUEST: Varnishing, different power and polarities.
|
|

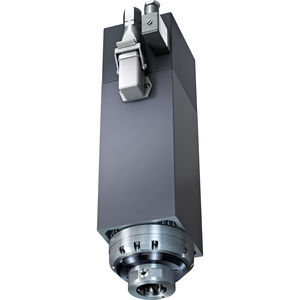

The ECR 16 spindles range have automatic tool changer for routing and engraving machines for glass, stone, marble and granite working.
STATOR: windings featuring double encapsulation
INSULATION CLASS: F or superior
BEARINGS: front: couple of pre loaded bearings with precision angular contact
rear: couple of pre loaded bearings with precision angular contact
ROTOR: squirrel-cage rotor.
HOUSING: high resistance extruded aluminium.
BEARING HOUSING: rear and front bearing housing in cast iron.
MOTOR COOLING: self air cooling.
SPEED: 2.800÷10.000 rpm. (12.000 rpm. upon request)
POWER: 12,5 Hp /9,2 kW. (4 poles- 100 Hz.).
IP CLASS: IP 55
SLEEVE: rotary union for water passage (VEM patent)
TOOL ATTACHMENT: MAS BT 40 cone
TOOL CHANGE: pneumatic
OPTIONALS BY REQUEST:Varnish, different power and polarity requirements, orientation resolver, orientation sensors and centring piston, incremental toothed-wheel encoder, IV axis, ISO 40 cone and maintenance kits.
|
|
Motor spindle Type 4015 DC
Features:
Clamping-Ø: 25.4 mm
Speed range: 5,000 - 80,000 rpm
Max. power: 300 W
Torque: max. 4 Ncm
Bearing system: 3 x ceramic, lifetime lubrication
Tool change: mechanically
Clamping range: 0.5 - 4.0 mm (1/8")
Cooling system: via clamping bracket
Sealing: with sealing air
|
|
MFW Spindles Dm 120mm
- HSK-E25, HSK-E32, HSK-E40
- Speed up to 70'000 U/min
- Power up to 15kW
- Torque up to 5.9Nm
|
|
|
IMT PC Board are specially designed for the circuit board process. We offer patented IMT PC Board solutions for a fast and easy integration to the customer’s machining system.
|
|
IMT CLASSIC 33
Compact high precision series
Performance range: 80 – 300 Watt
Speed range: 5.000 – 60.000 rpm
Tool clamping system: Manual
Common applications:
Light milling and engraving, polishing, grinding, cut off
and drilling.
|
|

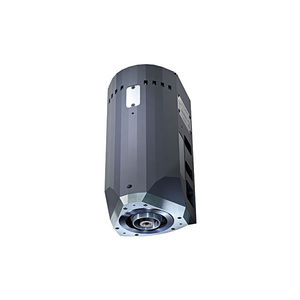

ES915 - ISO30 ES915 - ISO30 - Short Nose - Electric-fun H6161H0284A
Electrospindle ES915 Short Nose, electric-fun cooled, power 3,8kw, 220V, bearings Ceramic-Ceramic, suitable for workings of wood, plastic and light alloy
|
|
Electrospindle heads
One of the aspects that permitted to FPT to excel in the International markets during these years is that to be able to understand and transform into real jewels all designed accessories that fitted out its range of production.
This very innovative concept has characterised FPT products since 1994, making the difference in terms of exploitatation of the machines, of machining quality and low cost management, and saving tools, clamping systems and time.
Another example of FPT innovation is represented by the 5 continuous axis twist head with power gear driven spindle, named TTWM.
|
|
IMT offers the correct spindle solutions for a variety of customer requirements.
Our specialties are ”turn key ready” concepts, adapted specifically to your individual requirements. You’ll find out more about our proven modular concepts in this brochure.
By taking advantage of our technology, you will profit from many of our additional product features as well as discovering the appropriate IMT spindle to meet your needs. Especially useful are our spindles with an exchangeable spindle shaft module. This feature allows you to easily exchange individual elements on your own, saving time and money.
We will gladly advise you in the planing stages of your project to find an optimal solution to meet both your economical and production needs.
|
|
Perfect dressing with IMT spindle systems
IMT dressing spindles are available with and without touch sense function for a com- pletely monitored dressing cycle. For ID grinding or form grinding, IMT has the right dressing concept for you.
|
|

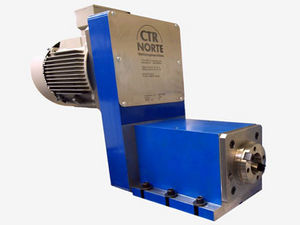

milling spindle
with three-phase motor or synchronous motor drive
No refrigeration needed
Attachment of the spindle unit with housing, flange Pinole
Rugged construction with hardened and ground spindle
Tool fixture SK40, HSK63
Speed range up to 6,000 rpm
Drive power to 27kW
Spindle bearing inner diameter 70mm
Labyrinth seal with sealing air connection
Automatic tool change with hydraulic actuation possible
Internal coolant supply or minimum quantity lubrication possible
|
|

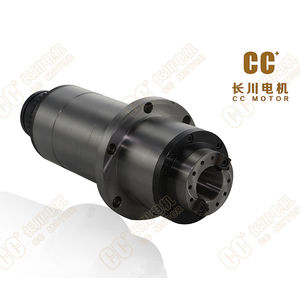

SD 60124
Mounting diameter (mm) : 120
Operating speed (rpm) : 500 - 20000
Motor type: synchronous
Max. power (kw) : 12.6
Collet capacity (mm): 16
Tool interface: automatic, HSK E40
|
|
|
Automatic, interchangeable motor spindle for retrofitting to all CNC machining centres. Highest feeds, best surfaces and ideal for 3-D milling of hardened steel or aluminium. RPM from 11.000 to 60.000. Now you can use your small tools with the correct cutting speeds.
|
|
