The Distributed Starter is an integrated, pre-engineered, enclosed compact motor starter and I/O on DeviceNet. Distributed Starters contribute to wire and installation savings by allowing one run of power wiring to be daisy chained.
As a world leader in industrial control systems, Rockwell Automation offers a complete line of Allen-Bradley Smart Motor Controllers (SMC) designed to meet the motor management needs of many applications.
Solid State Contactors are designed for fast and demanding switching of loads such as heaters, solenoids, transformers and motors. Solid State Contactors are ideal replacement for electro-mechanical devices or mercury contactors. They can switch single, dual and three phase heaters up to 50 A.
|
|
The Lenze LCU starter drive controllers are the safe and versatile solution for roller conveyors, rotary tables, push skid conveying systems as well as in conveyor technology. The LCU starter can be used as a reversing starter as well as for dual-motor operation. Integrated safety technology provides safe shut off (according to EN 954-1 and IEC 61508). You benefit by saving additional modules and therefore costs.
|
|
The VLT Decentral Motor Starter DMS 300 is part of the Danfoss decentral motor control concept with a common mechanical design. Variable speed applications using the decentral frequency converter (FCD 300) can be used together with fixed speed applications using a starter or soft starter.
The decentral motor switch DMS 300 can be mounted on or near by the motor on the application or on a wall. The DMS 300 comes with a smooth cleaning friendly IP66 enclosure with a robust painted surface.
|
|
MDS Digital Soft Starter
With new Iskra MDS soft starter, specifically designed to fit into the same footprint of a conventional
Star/Delta starter, user has the ability to easily replace traditional motor star/delta starter with Digital Soft Starter.
Features:
Adjustable start time 0.5s to 12s
Adjustable stop time 0s to 12s
Run relay
Fault relay
Adjustable motor rating
Integral by pass
Elimination of inrush currents
Smooth stepless acceleration
Improved reliability.
|
|
The Lenze LCU starter drive controllers are the safe and versatile solution for roller conveyors, rotary tables, push skid conveying systems as well as in conveyor technology. The LCU starter can be used as a reversing starter as well as for dual-motor operation. Integrated safety technology provides safe shut off (according to EN 954-1 and IEC 61508). You benefit by saving additional modules and therefore costs.
|
|
|
|
|
|
Electrical Motor Starters
AER Borne Environmental Electrical Motor Starters are designed to provide economical and effective, electrical motor protection. The standard, basic motor starter consists of an industrial grade, UL & CSA approved magnetic motor starter designed for harsh, industrial environments and is built to provide optimum motor protection and reliable, long service life. The heavy duty motor starter is provided with adjustable overload relay/heaters and 120 volt coil. Starter package includes a 120 volt control circuit transformer with fused primary and secondary, momentary push to start button, stop button, external reset button and pilot light housed in a NEMA 12 enclosure. Standard motor starter packages are available for 230 and 460 volt, 60 hertz applications.
Options:
- Installed and factory wired to collection system
- Manual motor starters
- Other input power configurations
- Alternate control circuit voltages
- Alternate enclosures (such as NEMA 4 or 4X)
- Numerous other options and configurations available
|
|
Application examples
- The internal current limitation restricts the inrush current peaks when starting up motors of circular saws, band saws, agitators, mixers, grinders and crushers
- Longer service life and less wear on fan and pump drives
- Controlled start and stop of mechanical handling drives prevent damage to goods and premature wear on plant that is often spread over a large area
- For use as three-phase voltage regulator of heating and lighting installations, as well as for inrush current limitation on transformers
Mains connection
230 - 460 V ±10 %, 50/60 Hz
Control voltage
14 - 230 VAC / DC
Rating range
16 - 900 A
7.5 - 500 kW (in line connection)
11 - 900 kW (in delta connection)
Product characteristics
- Application selector switch with 10 standard applications
- Programmable relay and analog outputs
- Internal motor-protective function (I2t monitoring)
- Motor protection (thermistor input)
- Functional expansion through communication modules.
|
|
C-2000™ Starter
GE's C-2000 IEC Line Starters offers a wide array of contactors, overload relays, enclosures, control transformers and pilot devices to match your application. C-2000 components are loaded with features that make them easier to install, allow more flexible configurations, lower inventory requirements, and make better use of panel space. These components conform to international standards (UL, CSA, IEC-947, and CE) and have dual (U.S./European) markings to ensure global acceptance.
Features and Benefits:
Available in open or enclosed forms (NEMA 1, 12/3R or 4)
Broad line offers wide array of contactors to meet most application needs from 5-500 hp at 460 volts.
Overload relays available in class 10, 20, and 30 with four set 40 function.
Manual reset only overload to meet automotive requirements
Finger and back of hands protected for greater safety
|
|
|
GE's advanced ASTAT Plus solid state soft starter is one of industry's most featured digital soft starters.
|
|
|
|
|
|

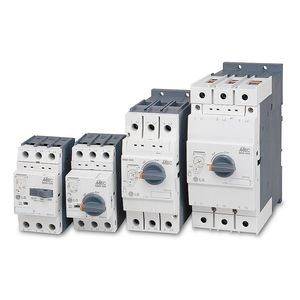

LS Meta-MEC Manual Motor Starters deliver more efficiency through various functions and compact design.
1. General
Meta-MEC MMSs are suitable for switching and rotecting three-phase induction motors of up to 45kW at 400VAC and for loads with rated currents of up to 100A.
2. Types
MMS32S, MMS32H, MMS63S, MMS63H, MMS100S, MMS100H
3. Ratings
- It covers all ratings up to 100A.
4. Function
- Protection of group installation
- Protection of circuits
- Motor protection & Starter protection
- Wide range of ambient temperature compensation
- Phase failure protection
5. Feature
- Width: 45mm for 32A, 55mm for 63A and 70mm for 100A
- Three position operator: ON-OFF-TRIP
- Complete range of common accessories
- Handle lock in the OFF position
- Class 10, 20 overload trip characteristics
- Trip test available
- Finger safe terminal
- DIN rail & Screw mounting
6. Standard
- The components fulfill the international standard IEC 60947.
- In U.S, the devices can be used as Manual Motor Starter in Group Installations according UL508.
The approval for UL508 Type E Combination Starter is under preparation.
|
|
|
|
|
|

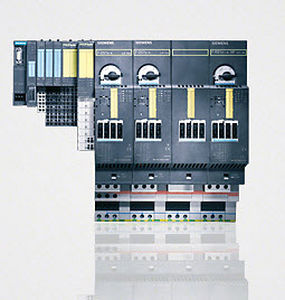

Siemens - Safety Modules PROFIsafe
If it's a safety-oriented controller you need, you can't go wrong with the ET 200S Safety Motor Starter Solution PROFIsafe. Both standard and safe communication take place via a single bus system – PROFIBUS or PROFINET with PROFIsafe profile.
One bus system for both standard and safety signals instead of cumbersome wiring – this is just one of the many advantages which our ET 200S Safety Motor Starter Solution PROFIsafe features with regard to considerably reducing overhead during commissioning.
Furthermore, all sensors and actuators can be freely programmed within the distributed safety concept, whatever their I/O station.
Should you wish to switch off actuators selectively, the Motor Starters Failsafe come into play. If just a group switch off is required, then both standard and high-feature motor starters can be used.
Advantages at a glance
* Fail-safe communication via PROFIBUS/PROFINET with PROFIsafe profile
* Plant availability at levels never seen before – with maximum economic viability
* Up to Category 4 according to EN 954-1 – or up to SIL3 according to IEC 61508
* In addition, effective diagnostic functions and hot swapping help to reduce expensive downtimes
|
|
|
CONTACTRON high power solid state contactors are the newest generation of Phoenix Contact electronic load relays (ELRs). The line includes single- and three-phase relays with the lead innovation of CONTACTRON 4-in-1, which replaces reversing contactors.
|
|
|
|
|
|
Welcome to Spohn + Burkhardt
Our Products
Our production program includes a diverse range of controllers, control stations, resistors, starters, in addition to a broad spectrum of controls for all types of transport machinery, construction and shipping cranes.
Our comprehensive series production is customisable in many different ways according to specific needs.
Our Company
The firm was founded in 1920 by Karl Spohn and David Burkhardt and remains in family ownership.
Our highly motivated team strives to achieve maximum customer satisfaction starting with the first contact through to after-sales service.
Our recipe for success has remained consistent over the years – and effective:
flexibility in product development and reliability in production.
Quality standards
A high quality standard – and therefore the complete satisfaction of our clients is one of our most important aims.
This is confirmed by various certifications, e.g. DIN EN ISO 9001-2000, CCC as well as by national and international standards, IEC 947, EN 60947, CSA and UL
|
|
CR455/CR355 Controller
GE's full complement of definite purpose controls (25A-40A) includes two-speed controllers for a variety of industrial electric equipment. These include air conditioning, heating, refrigeration, food processing, agricultural plus numerous other applications. The new feature rich controllers have been reduced 20% in size but retains 100% of the performance you have come to expect from GE. All definite purpose components by GE meet ARI780, UL, CSA and CE standards.
CR454/CR354 Starter
GE's full complement of definite purpose starters (25A-60A) are utilized in a variety of industrial electric equipment. These include air conditioning, heating, refrigeration, food processing, agricultural plus numerous other applications. The new feature rich starters have been reduced 20% in size but retains 100% of the performance you have come to expect from GE. All definite purpose components by GE meet ARI780, UL, CSA and CE standards.
|
|
Controller-starter up to 15 kW
Description
With a capacity of up to 32A/15 kW, TeSys U consists of :
One 45 mm power base (1): 2 ratings, reversing or non-reversing, circuit-breaker function and built-in interference suppression
One clip-on control unit, from a choice of 3: Standard CU : protection against overloads and short-circuits/Expandable CU: + alarm and fault differentiation/ Multifunction CU (2) : realtime control of motor load, local or remote diagnostics and parameter setting
One clip-on automation control module, from a choice of 3 :(3): Modbus, CANopen, AS-Interface et Profibus DP, Ethernet, DeviceNet, Fipio, Interbus S via Advantys STB le module or a simple parallel link
Two optional 45 mm power functions: limiter-isolator(4) and changeover relay (5)
|
|
ASTAT%u2122 Solid State Reduced Voltage
GE offers 3 lines of ASTAT solid state reduced voltage starters. The ASTAT SD is a line of compact, high performance three phase starters, available to 25hp @ 460v. The SD is a full functional soft starter with complete starting/stopping control and fault diagnostics. The ASTAT IBP Plus is a line of bypass solid state starters featuring a fully rated bypass contactor. These starters are rated up to 300HP @ 460v. The design is completely wired allowing quick, simple installation into either new or exisxting installations as a replacement for traditional starters. Bypass contactors are a must for enclosed installations where free air movement is not possible. The ASTAT CD Plus is the most full featured starter in the ASTAT lineup. Parameters include soft start voltage ramp, kick-start, current limiting, an energy saving feature, thermistor input, soft stop, pump control, DC injection breaking, communications, jog/slow speed and tachometer feedback.
|
|
|
|
|
|
The ASTAT XT soft starter delivers reliable performance and smooth acceleration for a range of standard AC motors, from 8A-1400A and from 230V-690V. By controlling motor acceleration and deceleration, it reduces mechanical wear and tear on motors better than across-the-line starting methods. This is particularly true in such applications as pumps, fans, compressors and conveyors.
A simple interface for fast set-up and operation
Its backlit LCD screen, which delivers full descriptions of parameters, makes the ASTAT XT easy to use. In two rows of 16 characters each, it displays the function selected and the value of the setting and/or monitor. Selecting and changing parameters is simply done with the arrow keys. Via any one of four selectable user languages (English, German, Italian, Spanish), it delivers:
• Data Readouts – e.g. Line Voltage, Motor Current, etc.
• Fault Diagnostics – e.g. Overload, Overvoltage, Undercurrent
• Statistical Data – e.g. Elapsed Run Time, Fault Recording, Trip Event, etc.
• Parameter Settings – e.g. Acceleration Time, Starting Voltage, Motor FLA
|
|
Piezo LEGS® - Demo kit
To get started and familiarize yourself with the Piezo LEGS® technology we offer several options of demo kits. This is the best way to test and verify the performance of the motors.
|
|
