SPECIFICATIONS

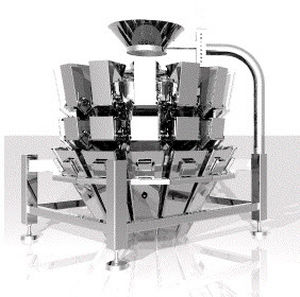

Model : Primo 14 Head 1.3L
Weighing range : 5g - 7 lbs
Weight accuracy : 0.3 - 1g
Speed : up to 120 bags per minute
Structure : Stainless steel
Display : Color touch screen
FEATURES
Stainless steel construction
Total digital control logic
Microprocessor operated
Store recipes in memory
Tool-less dis-assembly for quick washdown
Interfaces with any type of packaging machine
|
|
SPECIFICATIONS
Model : Primo 14 Head 2.5L
Weighing range : 5g - 7 lbs
Weight accuracy : 0.3 - 1g
Speed : up to 120 bags per minute
Structure : Stainless steel
Display : Color touch screen
FEATURES
Stainless steel construction
Total digital control logic
Microprocessor operated
Store recipes in memory
Tool-less dis-assembly for quick washdown
Interfaces with any type of packaging machine
|
|
SPECIFICATIONS
Model : Primo 10 Head 2.5L
Weighing range : 5g - 7 lbs
Weight accuracy : 0.3 - 1g
Speed : up to 75 bags per minute
Structure : Stainless steel
Display : Color touch screen
FEATURES
Stainless steel construction
Total digital control logic
Microprocessor operated
Store recipes in memory
Tool-less dis-assembly for quick washdown
Interfaces with any type of packaging machine
|
|
SPECIFICATIONS
Model : CS-14 SB
Weighing range : 5g - 7 lbs
Weight accuracy : 0.3 - 1g
Speed : up to 120 bags per minute
Structure : Stainless steel
Display : Color touch screen
FEATURES
Stainless steel construction
Total digital control logic
Microprocessor operated
Store recipes in memory
Tool-less dis-assembly for quick washdown
Interfaces with any type of packaging machine
|
|
|
The SPC multihead weighers are made with Stiavelli usual care and quality and exploit the wide experience grown in over 20 years of production of weighing and packaging plants for different food industries.
|
|
|
The NEW Series-C² is a combination Multihead weigher designe to weigh, at high speed and with extreme precision, various types of products. The working principle is based on the distribution of the product onto weigh buckets and on the identification of the best discharged combination, which is reached through an algorithm of combinatorial calculation, in order to obtain the best possible speed/precision relation. The Multihead weigher is subject to a mechanical customization based on the specific characteristics of product.
|
|
DOSATORE MULTITESTE
Our company collaborates with producers of Pesatrici Multiteste can therefore integrate our lines based on the requirements and demands for the customers.
|
|
|
The BCM is the ideal solution for its line of production, if making responsible for the weight and doser of the most varied types of products, as: snacks, candies, biscuits, dry masses, fruits, bullets, and etc. The innovative system of weight with digital processor of signals "DSP" guarantees greater productivity and precision in its process. Constructed in robust, dumps-cart set in motion for engines the step and different sizes and forms of the linear vibratory gutters and rotating structure, becomes it versatile for the majority of the products.
|
|
- 10 head weigher,
- vibro feeding system,
- easy disassembly feed buckets,
- stepper motor drive mechanism,
- output up to 70 cycles per minute,
- accuracy below 1 gram,
- weighing range: 20g - 1000g,
- stainless steel construction.
|
|
|
|
|
|
The LW 01 incorporates all the advantages of a field proven MULTIPOND combination weigher, with a mobile lift system. It can be used at various positions of a packaging line, as required.
The motor driven elevation adjustment with programmable positions, allows for the LW 01 to be easily adapted to varying transfer heights. When moved to the lower end position, all product leading parts are comfortably accessible, making cleaning very easy. The entire system is mounted on caster wheels and can be wheeled to a cleaning area as needed.
Standard features of the LW 01 Series
- Compact, dust and water-repellent design, for use in wash down environments
- Feeding tray drives integrated into machine body, therefore well protected against environmental influences
- Dehumidifier in weigher housing drains condensation moisture
- Frequency adjusted drives ensure ideal product conveying characteristics
- Temperature compensated strain gauge weigh cells, with integrated calibration weight for automated calibration, ensure high precision and controlled availability
- Automated, programmable zeroing sequence allows to account for product residuals in the weigh buckets
- Compact, modular control system including:
– 32-bit-technologie
– self diagnostic system
– extensive help text
- Various, self optimizing trending routines
- Programs can be saved locally and/or on memory cards
- Statistical reports according to European Weights & Measures legislation
- Operator interface – 12" TFT colour display with touch screen
|
|
|
Ishida has an extensive range of multihead weighers suited to many food and non-food applications. From entry-level to high-specification models, all Ishida's multihead weighers combine high-speed operation with unparalleled accuracy and reliability. They are pivotal to the improvement of efficiency and consistency on the production line. Our multihead weighers can be installed as part of an integrated weighing and packing line or interfaced with existing packing equipment.
|
|
|
|
|
|
12/14-S5 Series
Characteristics
Weigh pan volume: 2.55 litre
Portion weight: 1 g - 12 kg
Portion volume: max. 10 litre (10000 ccm)
Speed: up to 300 weighings/min.
Measuring range of weigh cell: up to 480 g / 2400 g
Increment: 1 g / 2 g
powerful + flexible
With speeds up to 300 weighings/min. depending on product and target weight, the MULTIPOND 12/14-S5 series of combination weighers are designed for the most diverse applications.
They have proved their efficiency both in high-speed as well as in mixing applications.
The prefeed, weighing and memory hoppers work with the twin flap opening system, which guarantees a complete discharge even of sticky products. The stainless steel hoppers have a volume of 2.55 litres.
By means of a specially designed pivoting unit each of the weigh hoppers feed product into two memory hoppers mounted underneath, where the weighed partial quantities are stored before being taken into combination. Mixing of up to 6 components of various products is possible.
|
|
|
|
|
|
01 Series
characteristics:
- Weigh pan volume: 1 litre
- Portion weight: 0.5 g - 1600 g
- Portion volume: max. 3.2 litre (3200 ccm)
- Speed: up to 450 weighings/min.
- Measuring range of weigh cell: 320 g
- Increment: 0.5 g
powerful + flexible
With up to 450 weighings/min depending on product and portion weight MULTIPOND combination weighers of the 01 series are suitable for a wide range of applications.
Preweigh and weigh hoppers have a volume of 1 l. The special plastic hoppers, an identification mark of MULTIPOND weighing technology, allow a particularly hygienic and gentle function of the weigher.
The twin flap opening system guarantees a complete discharge even of difficult, sticky product.
robust + accurate
The strain gauge weigh cells are automatically calibrated during operation at predetermined intervals by using internal precise calibration weights, thereby guaranteeing the highest accuracy and availability.
Drifting due to variation of temperature or humidity are thus eliminated.
|
|
01-BC Series, for gentle handling of delicate and fragile products
Characteristics
Weigh pan volume: 1 litre
Portion weight: up to 1200 g
Portion volume: max. 3 litre (3000 ccm)
Speed: up to 80 weighings/min.
Measuring range of weigh cell: 320 g
Increment: 0.5 g
new + unique
The MP 1401-F-BC is an absolute world´s first. It has been specially designed for delicate and fragile products and those of which the coating comes off easily. Conventional Multihead weighers are not able to handle these products with the required care.
By eliminating prefeed buckets and avoiding the use of chutes and outlet funnel the number of product dumps and the impact has been reduced to a minimum.
|
|
34 Series
Characteristics
Weigh pan volume: 6.5 litre
Portion weight: up to 12 kg
Portion volume: max. 26 litre (26000 ccm)
Speed: up to 140 weighings/min.
Measuring range of weigh cell: up to 2400 g
Increment: 2 g
powerful + flexible
The MULTIPOND 34 series of combination weighers are designed for weighing products of larger piece size and volume. The series includes weighers with 10, 14, 16 and 20 weigh heads.
The stainless steel prefeed and weigh hoppers have a volume of 6.5 litres and work with the known twin flap opening system.
|
|
|

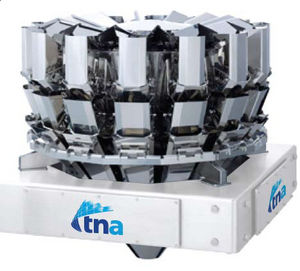

The TNA-514-SNX 14-head multi-head weigher handles a wide selection of food products with extreme accuracy, and at speeds up to 180 packs per minute.
|
|

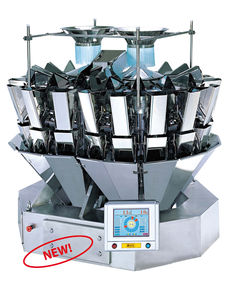

Dataweigh Sigma F1-Plus
With more than 75 years of experience in the field of weighing Yamato is one of the world's leading manufacturers of weighing equipment. Yamato now offers a totally upgraded range of multi-head weighers with the most advanced technology; Dataweigh Sigma F1-Plus series.
Sigma F1-Plus handles products as diverse as snack, confectionery, fresh salad, etc. with unparalleled accuracy and efficiency.
Sigma F1-Plus provides accurate and controlled multi products mixing with multiple components on a single scale.
|
|
|
|
|
|
ScanCombinator 5418
The latest development in multihead weighing is the very fast ScanCombinator 5418. This new machine has 18 heads, and is capable of very high speed due to the many possible combinations. The ScanCombinator 5418 is also ideal for customers that need to make split or mix portions. The machine can be divided for use with two or three products, which enables split portions of three different products. The machine can also be divided for use with two packing lines.
Benefits:
- Specially designed to deal with wet and sticky food products
- Consistent, maximum-capacity flow of products for weighing due to Automatic Feeder Adjustment (AFA) technology
- Every detail fine-tuned to boost reliability
- All-time low maintenance costs – self-adjustment technology keeps service calls to a minimum
The heart of the packing line
The ScanCombinator 5418™ communicates and integrates with all well-known types of packing machines. It can be incorporated as the heart of a total packing line because it handles infeed, weighing and packing into almost any kind of tray, bag, can, box, etc.
- High-quality touch screen giving a true Man Machine Interface (MMI)
- Hermetically sealed load cells with 3-year warranty
- Weighing speed up to 120 portions a minute giving a substantial capacity
- No use of air on the machine – the pneumatic system prevents problems with wear and tear, hygiene and corrosion
|
|
Scope of use
Batching of loose and granulated articles like: coffee, rise, sweets, buttons, dumplings, etc. Ready to integration with all types of pneumatic packaging machines. Can work like free-standing weigher for batching into premade bags.
Operation principle
Combination weigher calculates out numerous combinations to meet closest to target product portion from various heads.
The computer adds up the weight data received from each weigh bucket, calculates out numerous combinations meet the set deviation from target weight, and then selects the one closest to the target weight.
possibilities of different batchers configuration. Touching ponds 10,4 c – independent establishing of amplitude line conveyors, PC batching, possibility of seqence drop.
|
|
Our range of optional machinery for weighing and dosing products to be fed into packaging machines.
ILAPAK's series of high quality multi-head weighers are tailored to each customer?s products, to consistently and precisely weigh across a very wide range of weights and speeds.
The 10 head range of Weightronic is ideally suited for simple, low/medium output applications for both wet or dry products.
|
|
