Beijer Electronics EXTER T60c/T60m, touchscreen panels with 5.7” display
Display: Graphic 64K color STN/Graphic 16 grayscales
Presentation form: 5.7”, 320 x 240 pxl
USB Host
Front protection class: IP66 (waterproof even when exposed to high pressure washing).
With EXTER™, you get an operator panel that is ready to impress you. Its high-performance Intel Xscale® processor, robust construction and multiple communication ports make it a futureproof choice for your machines and processes. There are fourteen models to choose from - seven with touchscreen display, six with keypad control and one mobile operator panel. The award-winning, slim design and the powerful performance make EXTER™ an operator panel beyond the ordinary.
|
|
Microvision Light (2 axis interpolated controller)
Suitable both for simple machines and for intelligent and programmable equipments, it integrates in a sole unit HMI, PLC and CNC functions with an excellent relation price/performances. Drivers can be connected to the controller either through analog +/- 7,5V signals or digital PWM or Step / Direction. It’s basic equipment of 12 Inputs and 8 Outputs can be expanded using the 2 available CANopen serial ports.
|
|
In view of increasing requirements with regard to production conditions, the spectrum of the so-called man-machine interface grows further and its functions are increasing continuously. HMI devices as well as a compatible, consistent HMI software, i. e. a visualisation software, are basic components of the production lines and production sequences of today.
HMI devices and software by Lenze ensure that you can operate your machines and systems in a safe and simple manner, control processes, and adjust your data accurately.
|
|
Mobile operator panels are used everywhere where machine operation and monitoring require the maximum amount of flexibility. B&R has created a leading-edge product line which integrates control as well as operation and monitoring.
|
|
|
|
|
|
PC Based HMI
Omron's DyaloX industrial PC is setting new standards in industrial reliability. We've achieved this exceptional reliability by using only the highest industrial grade components and by eliminating every potential source of failure - such as moving parts like hard disks and cooling fans.
HMI & Control
The Omron Sysmac One series is a combination of a NS series HMI (ranging from 5.7-12.1"), a choice of two powerful CJ1 series PLC's, an optional Ethernet interface and a standard second network interface (e.g. DeviceNet or Profibus). There is an option to place an extension board at the back of the SYSMAC ONE-series. This offers extra functionality such as a second Ethernet interface or I/O extension.
Advanced HMI
The NS-series is our advanced HMI series that covers a large range from 5.7" Monochrome STN to 12.1" TFT. Easily programmed with a single piece of software it offers advanced features, many communication possibilities including Ethernet, very good synergy with our PLC's and devices, an extremely flat design and a backlight life of up to 75,000 hours. >>
Basic HMI
The NT series is ideal for applications where basic touch screens are required. It is available in monochrome screens of up to 5.7 inch. It comes standard in a rugged IP65 housing. The aim of these HMIs is smaller machines with less advanced features and lower costs. >>
|
|
In view of increasing requirements with regard to production conditions, the spectrum of the so-called man-machine interface grows further and its functions are increasing continuously. HMI devices as well as a compatible, consistent HMI software, i. e. a visualisation software, are basic components of the production lines and production sequences of today.
HMI devices and software by Lenze ensure that you can operate your machines and systems in a safe and simple manner, control processes, and adjust your data accurately.
|
|
|

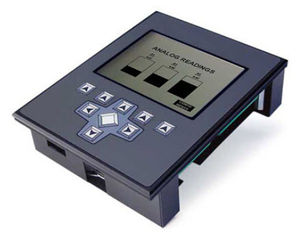

The compact OP7200 eDisplay is an intelligent operator interface ideal for data acquisition and stand-alone systems such as factory floor controls.
|
|
OPERATOR INTERFACES
Available in portable version or embedded in the front panel. Connection to the electric panel onboard the machine by means of isolated CAN port. The touch-screen display provides an intuitive user interface which makes it easier to manage the gravimetric system.
SNAP TERMINAL
5.7" touch-screen LC b/w display.
SLY TERMINAL
10.4" touch-screen TFT colour display
WIT TERMINAL
15" touch-screen TFT display
|
|
Operator Interfaces
Identifying industrial computer solutions and the right operator interface is essential for solving your Industrial computing challenges. GE Fanuc offers a family of computer solutions and hundreds of diverse visual solutions to fit your specific needs. We provide our customers with the best-fitting product, whether a touch screen panel, a message center or an Integrated Computer suite designed precisely for Operators and Process Engineers. Take a look at our exciting, cutting-edge technologies that can help you operate more efficiently and cost effectively.
|
|
|
With a complete range of Touch Panel PCs, Industrial Panel PCs, and Industrial Flat Panel Monitors, Advantech offers a wide range of HMI products for industrial automation needs. By creating value-added, standard product solutions and by offering customization, Advantech can provide platforms to meet any requirement.
|
|
|
|
|
|
Features of full graphic-capability operator terminals for controls:
- Many PLCs supported,
- Temperature controllers & inverters directly connected to HMI via Modbus
- Friendly multiple languages supported to the end users
- Many available sizes like 12.1" color, 5.7" color & mono, 4.1" & 2.5"
mono
- Data logging, bar graphs, trends and alarms
- Animation: display/hide, flash, color changed
- Data entry and data display from /to PLC registers directly
- Free Windows based configuration software for all HMIs
- Upto 65535 screens in each project, pop-up screen and associated
screen supported
- Ladder programming (Soft PLC) supported in HMI and Ladder online
monitoring
- Screen security
- Floating point supported
- Ready made registers for Real Time Clock
- Unique Tag database for HMI and PLC registers
- 256 real-time alarms, and 30 or 2000 historical alarms
- Global & power-on tasks, list of predefined and screen tasks-before, while and after
- Ready made lamps, button, data entry, data display, trend, alarm,
bitmaps & meters
- Action for graphical objects from list of predefined tasks
- Ready made system coils for changing RTC data by sec,min, hour, day, month, year
- IP65 design, CE, cUL, UL certificates
|
|
HMIs & Displays
The scalable product line of the new HMI systems (Panel PCs, Micro Clients, Touch Panels)offers a wide range of processor capacities and display dimensions from 7.0" up to 19". The 100% industry-capable Panel PCs and displays meet toughest industrial requirements concerning shock, vibration and temperature resistance. However specific your requirements we supply you with semi- and full-customized Panel PCs and displays for your control and visualization applications.
|
|
|
|
|
|
HMI solutions for every application
Mitsubishi Electric has pushed forward the development of its visualisation programme, realigning the products in this sector with a new concept called Vision 1000. This concept is built around three series of products: the GOT1000, E1000 and IPC1000 series. All three series share flexibility, openess and seamless compatibility with all Mitsubishi Electric automation systems.
GOT1000 Series
The GOT1000 series is the ultimate in control unit quality and performance. The impressive array of functions and simple touchscreen operation give users everything they want and need.
E1000 Series
The new control units are also packed with advanced Mitsubishi technology standards, such as comprehensive communications support, which includes networking, Internet and SMS mobile network text messaging capabilities - along with features like multi-language user interfaces and dual driver support.
IPC1000
Personal computers are a part of everyday life as Industrial PCs are a part of Automation and process control. Mitsubishi’s new IPC1000 Series including Eco panels and flexible Business panels, bring together the very best of open PC technology with a long understanding of the rigors of the industrial environment.
|
|
RAFI produces complete control panels and data entry systems including electronic circuitry and interfaces. We design our systems with special emphasis on reliable data input and convenient operation. A wide range of technological and design options enable RAFI to quickly implement individual solutions. For example, we utilise the following equipment for in-house production:
CAD development tools (3D)
Screen printing machines for the production of overlays
Sheet metal machining equipment for front panels
SMD and conventional assembly of printed circuit boards
Individual assembly and testing facilities
|
|
Whether you require an intricate device incorporating multimedia options, cursor control, and touch screen or perhaps just a single-station keypad, Advanced Input Systems is dedicated to providing end-to-end solutions. Rapidly and cost effectively.
Hybrid keyboards use a combination of two or more switch technologies. Hybrids are particularly useful when a high-speed typing array is combined with a large number of special function keys. These keyboards give our customers yet another way to differentiate their products from the competition and to meet the needs of their unique application.
|
|
Beijer Electronics H-series H-T80c/H-T100t, touchscreen panel with color STN/TFT LCD 7.5”/10.4” display
Display: Color STN LCD/ Color TFT LCD
Presentation form: 7.5”/10.4” (diagonal), 640 x 480 pxl
Keypad: 1 Menu key and 6 user-defined function keys
2 USB Hosts, 1 USB Device, CF-card
The H-series offers valuable HMI functionality at an affordable level. The series include keypad and touch screen interfaces and is available in seven different sizes from 3 to 10.4 inches. Offering three levels of functionality – Standard, Plus and Network – the H-series enables you to select and pay for what level of HMI technology you need.
|
|
IndraControl V - The Front-End for Operation, Monitoring and Diagnostics.
Are you looking for an operator terminal or industrial PC with robust, reliable technology and flexibility? Would you like to have a choice in the location of your operator controls? The Rexroth IndraControl V series always provides the right solution that is tailored to your specific automation application.
|
|
|
|
|
|
|
For additional information please contact sales@nematron.net. An enhanced version of the PowerView 6000/8000 Series brings higher performance and greater hardware expansion capabilities to Operator Interface Terminal applications. The extensive communication support for a wide range of popular PLCs and Servo Controllers will allow simultaneous connection of up to 16 different controllers along, with Peer-to-Peer and Global variables functions. A comprehensive range of hardware interfaces are offered as standard and extend application support for USB, Compact Flash, Hard Disk, Bar Code Scanner, Wireless and many other devices. Free downloadable ViewBuilder 8000 configuration software supports all standard HMI functions, and includes macro, math and logic capability for advanced operations. Included with ViewBuilder is a subset of the popular Symbol Factory 2.0 graphics library, containing over 2,000 graphical objects. ViewBuilder 8000 takes full advantage of the PV8000s high resolution display with a wealth of application development tools. Enhanced graphics capability provides support for BMP, JPG, and both static and dynamic GIF file formats. The advanced object libraries containing bar graphs, trend displays, list & dropdown menus, user configurable shapes and engineering icons facilitate fast mimic and screen development reducing project implementation time. Alarm management, historical and real time event & trend functions bring performance and functionality typical of larger scale SCADA Systems to the PV-8000 Operator Interface Terminal. Ethernet, OPC Server (optional), and Serial are amongst the extensive Communication options.
|
|
Operating and monitoring with the PMI Pilz Machine Interface and PIT control and signal devices
Diagnostics and visualisation :
Pilz offers the most diverse range of systems to perform diagnostic and visualisation tasks, from the diagnostic device PMImicro diag through to powerful operator terminals with touchscreen, PMIvisu and PMIopen. So it's easy to implement customised, complete solutions that meet your requirement.
Control and signalling :
Selection of the correct control/signal device is a key factor for the safety of man and machine. Rely on a safe solution with Pilz E-STOP pushbuttons, muting lamps and manually operated control devices.
|
|
Handypanel, AGP3000H range : 3 models, screen 5.7", colour or monochrome. A new generation of portable graphic operator interfaces for your mobile applications.
AGP3000H range:
- Screen 5.7"
- 3 models
- Colour TFT : 65536 colours / Colour STN : 4096 colours / monochrome : 16 shades of grey
- 8 MB FEPROM
- SIO x 1 / Ethernet / USB x 1 / CF card
- Designed for super portability with a lightweight, easy-to-use cable
- Emergency stop switch: to stop the machine when a circuit fault or other emergency occurs
- Three position device
- Dimensions : 224mmW x 174mmH x 87.1mmD
|
|
|
|
|
|
Discover the G315: much more than an HMI !
As with all G3 panels, the G315 arrives standard with an integrated protocol converter, allowing the HMI to act as a communication hub between any and all connected devices. Programmed via Red Lion Controls FREE Crimson™ 2.0 software, data exchange is achieved in seconds using the built-in driver list and drag and drop register mapping. Your PLCs can now communicate with any drive, SCADA and serial or Ethernet enabled devices.
“With integrated features such as multiple-protocol support, data logging and built in web and FTP servers, the G315 performs SCADA-like functionality—at a fraction of the cost,” said Jesse Benefiel, product manager, Red Lion HMI products.
Using the G315 integrated data logger, information can be recorded in “IT-Ready” CSV files on a CompactFlash card for further analysis or troubleshooting. In addition, the embedded Web Server provides remote viewing and control capability with no extra software required, just a simple web browser. Users can monitor and control their application or download data logs using HTTP or FTP access.
SOME FEATURES:
- 15-inch TFT Active Matrix 32K Color XGA 1024 X 768 Pixel LC
- 10-button keypad for on-screen menus
- Three front panel LED indicators
- Resistive Analog Touchscreen
- Up to 6 RS-232/422/485 Communications Ports
(2 RS-232 and 2 RS-422/485 on board, 1 RS-232 and 1 RS422/485
on Optional Communications Card)
- 10 Base T/100 Base-TX Ethernet Port Supports Multiple Protocols Simultaneously
- Built-in Web Server and FTP Server/Client
Accessories :
G3CN CANopen Option Card
G3DN DeviceNet Option Card
G3PB PROFIBUS Option Card
G3RS RS232/RS485 Option Card
|
|
|
|
|
|
G3 SERIES: COMMUNICATION GATEWAY WITH HMI 2-IN-1
Red Lion's G3 operator interface panels give you complete HMI functionality for PLCs, motor drives and other communications-capable devices. With Ethernet as standard on all G3 models, you can network-enable any serial devices connected to the panel. In addition to the G3, Red Lion also offers Paradigm operator panels, plus message centers, slave displays and large digit displays in a variety of configurations.
"Legacy devices communicate with their own protocol," said Jesse Benefiel, Product Manager. The G3 HMI is the first to feature an integrated protocol converter that allows it to function as a center point of data gathering, converting disparate protocols while relaying all the data to a remote location. This makes the G3 an ideal tool to collect and move data, or control multiple devices including PLCs, PCs, drives, PID controllers and others, from anywhere in the world," added Benefiel.
SOME OF THE FEATURES AVAILABLE IN STANDARD ON G3'S:
- Web server enabled in few clicks
- Data logging on CF and FTP server/client function
- Multi com ports
- Protocol conversion ability (200 drivers included)
- Email/SMS messaging
- Security/Events/Data logging
- Pass-Through programming
...etc...
SOME OF CUSTOMER'S BENEFITS :
- Remote PLC reprogramming & Remote alarms = Remote Maintenance
- Reduction of down times
- Remote control & monitoring
- Development of raw protocol
...etc...
|
|
The Silver Series touchscreen operator interfaces have been one of our most popular product lines for many years. With thousands of units out in the field, the Silver Series products have proven to be a reliable graphic OIT.
Reliability is not the only feature that the Silver Series offers. Extensive graphics libraries, pop-up windows, animation and a simulation mode make the Silver Series powerful and easily configurable. The extensive set of communications drivers allows connection to most major brand PLCs and controllers on the market today.
Best of all, the list price of the Silver Series is much lower than that offered by other OIT manufacturers.
Considering the many software features, time-tested quality and low cost of these graphic OITs, the Silver Series is truly a great value at a competitive price.
|
|
True Analogue Touchscreen
Compatible with a Wide Range of PLC Protocols
Retentive Internal Data Storage
Real Time Trending
Trend Stored Data
Alarming and Alarm Storage
Alarm Frequency
Event Storage (History)
USB Programming
USB Memory Storage
USB Printer
Add I/O
Macro Programming
Multi-Language
Recipe Storage
Auto-Scaling Application to Migrate Programs from 10 to 4" Displays
On-Line Simulation
Off-Line Simulation
10-Level Password Protection
|
|
|
Omron provides high quality industrial rated HMI products. Broad range of screen sizes and functionality that allow the product to meet the needs of OEM's and /or end users.
|
|
|
Machines and systems must be safe and, most importantly, easy to operate. To meet these requirements, Lenze offers a graded and uniform range of products for your automation system - from text displays right up to high-resolution touch screens.
|
|
The introduction of Micro-Browser Technology for operator panels is a major innovation step in the HMI technology. It brings the Web Look and Feel from the PC / Windows environment world to the small display sizes that are typically used in industrial, designed HMI devices for automation. It opens up new possibilities, shifting paradigms and breaking conventional limits
Saia® Web Panel with Micro-Browser technology are touchscreen operator panels displaying web pages. The Saia® S-Web-Editor is an easy and convenient way of creating dynamic web pages for the Saia® PCD.Web-Server. No knowledge of HTML or Java-programming is required. Pages are edited by positioning and configuring graphical objects, which have been specially designed for Saia® PCD devices.
|
|
Pro-face presents the new touch terminal model "special well-lighted locations" : 1000cd/m2. Low-light reflexion and ultra-brightness model.
- 5.7" model
- Colour TFT - 640 x 480
- 65536 colours
- RS232/RS422/RS485 - USB - Ethernet
CF-Card - ultra High-brigthness: 1000cd/m2
- Power supply: 24VCC
A new solution for applications installed in Well-lighted locations.
|
|
One piece of software for all devices: HMI Designer creates a uniform integrated development environment for all listed Lenze Human Machine Interfaces.
The clear programming environment, containing a project manager, project editor and scripts editor, optimises the integration of Lenze drive controller configurations and facilitates project engineering and future operation.
|
|
|
|
