ODU MINI-FLAKAFIX:
- Card-to-Cable Connector
- Grid 1.27 x 2.54 mm
- Positions: 10/20/30/40/50
- Pin strip for SMT and solder wave
- Excellent Impedance values
- Outstanding contact properties:
(Contact resistance < 6 mOhm, mating force 0,18 N/Contact)
- Locking with plastic lever or metal clip
ODU FLAKAFIX:
- Card-to-Cable Connector
- Grid 2.54 x 2.54 mm
- 10-64 Positions
- Termination technologies:
Solder-In, SMT, Press-In, Pressure, Pin-in-Paste
- Headers straight and right-angle
- Low Profile version available
ODU MINI-CARD:
- Board-to-board connector
- Grid spacing 1.27 mm
- Pin and socket strips for solder-in and SMT connection
- 6 to 50 contact positions
- For PCB distances from 7 mm - 17 mm
- Stringable
- RoHs compliant
ODU CARD:
- Board-to-board connector
- Grid spacing 2.54 mm
- Pin and socket strips, straight and right-angle
- Pin and socket strips for solder-in connection
- 1 to 60 contact positions
- Standard and customized pin lengths
- 2 and 4 point contacts
- RoHs compliant
|
|
FEATURES
* Printed circuit board mounted Quick disconnect
* Tin/silver plated for solderability
* Fully insulated housing
* Multiple color-coding and keying options available
* Straight and right angle terminal
BENEFITS
* Avoids the need for unfastening ring type terminals
* Minimal contact resistance at high current
* Plastic housing provides safe connection for user.
* Enhances design flexibility
* Provides flexibility of parallel or perpendicular mounting to the PCB
|
|
PCB plug-in connectors
The universal plugging system
For conductors up to 2.5 mm², the MULTI CONNECTOR SYSTEM provides all prerequisites for a continuous system wiring.
Applications:
PCB plug-in connectors
Feed-through plug-in connectors,
"Floating" plug-in connection for various mounting methods
Plug-in connectors on modular terminals
Benefits:
Original WAGO CAGE CLAMP® connection allows for fast, shock-proof and maintenance-free terminal connection. Depending on type, equipped with pin or socket connector
Operation with standard screwdriver
100% protection against mismating using coding fingers
Metric or imperial pitch
|
|
Hypertac’s range of DIN41612 (IEC60603-2) PCB connectors are ruggedised to satisfy the demanding requirements of transportation applications. Based on the company’s proven Hyperboloid contact technology, these shock and vibration proof connectors eliminate fretting, and are designed for data, power and co-axial connections.
The connectors, designated the HDB, HDC, HDD, HDS and HDT series, are available in two- or three-row formats with a maximum of 192 positions. Designers can choose between two pin pitches – 2.54mm and 5.08mm. The HDT style offers mixed contact arrangements that combine signal, power and up to 12 co-axial contacts.
|
|
|
Available in 10,14,16,20,26,34,40,44,50,56,60,62,and 64 circuits insulator materials : glass filled polyester UL 94V -0 contact material : Phospor bronze Accepts PC board thinckness : 1.40-1.60mm
|
|
Connector, PCB, right angle reverse polarity SMA connector. These connectors are designed to meet FCC certification requirements and work with all Radiotronix modules. These connectors must use reverse polarity (RPSMA) 50 ohm antennas.
|
|
|
Molex is the expert when it comes to interconnect PCB assembly solutions. We offer clean sheet mechanical and electrical design, development and test support, including modeling and empirical testing. Our engineering teams work with you to ensure a design that meets your needs. Whether it is a small interconnect board or a complete module, we can offer global manufacturing, material sourcing, tooling and testing.
|
|
PCB Adapter, Receiver, TriPaddle, 64 Position, to PCB-Mounted 2x34 pin (BERG 65496-019) Connectors
PCB Adapter, Receiver, TriPaddle, 96 Position, to PCB-Mounted 1x96 Male DIN 41612 Connector
PCB Adapter, ITA, TriPaddle, 64 Position, to PCB-Mounted 2x34 pin (BERG 65496-019) Connectors
|
|
|
High Performance goes pluggable! The HP-Extension of the Powermate Range power connector system enables safe, fast and innovative interconnections! High Performance is to meet your requirements concerning applicabillity, reliability, safety and economic feasibility.
|
|
|

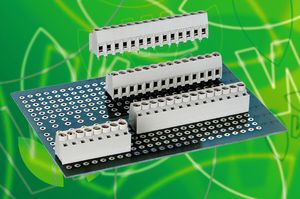

wiecon PC board terminals are a fixed component in innumerable innovative applications. Whether with screw or spring clamp connection, pluggable or in solder version - wiecon can be found wherever control systems are required. Unique marking, effortless wire connection and intelligent test functions guarantee service-friendly usability and reliable connections.
|
|
|
GCT specialise in custom connectors allowing you to meet specific application and design requirements and budgets. Our mechanical & electrical engineers have many years of experience assisting in design and development of custom built connectors that, we not only helped our customers addressing their design and application challenges, but also saving much of their money. Whether it's a modification of an existing part or a brand new design, we will assist you all the way.
|
|
|
|
