Description
Specifically designed for the cosmetic and Pharmaceutical industries
with a sealed product tank, polished to Ra = 0.2 Micron
Magnetic fill nozzle without mechanical wear parts in the product flow
Servo Driven Capper heads that can provide:
-Orientation of the cap
-Torque control
-Control of the number of turns or partial turns
-Interchangeable heads for press-on caps
-Quick change size parts
|
|
Intasept™ 2400 Single-Head Semi Automatic Aseptic filler for the 32mm gland format can fill:
- 5 litre bags at up to 4 bags per minute
- 10 litre bags at up to 3 bags per minute
Filler Description
- The Intasept™ 2400 Single-Head Semi-Automatic Aseptic range can fill bags from 2 to 30-litres in capacity.
- Bags are manually loaded into the filler. After filling, they are released to the rear of the machine for loading into boxes.
- The fill table can be adjusted to allow manual filling of 210 litre bags into drums (available as option).
- Two fillers can be installed as an integrated pair for twin-head operation.
- Intasept™ 2400 is available with 16mm or 32mm fill head. The filler is available in a qualified version for biomedical and pharmaceutical applications.
|
|
innova 10-20K
High rate filling and sealing machine for injected unit-dose strips, for aseptic environments.
Formats: from 0,25 to 5ml
Max production rate: 10.000 – 20.000 unit-doses /hour.
|
|
FILL-LOCK 15
Automatic filling and sealing machine for injected unit-dose strips, suitable for pharmaceutical and cosmetics.
Formats: from 0.25 to 10ml.
Max production rate: 4.500 unit-doses /hour.
|
|

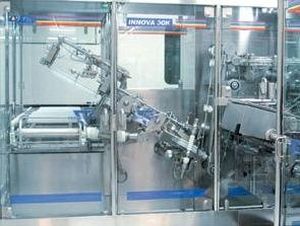

innova 30K
High rate filling and sealing machine for injected unit-dose strips, for aseptic environments.
Formats: from 0,25 to 2ml
Max production rate: 30.000 unit-doses /hour
|
|
|
|
|
|
The pharmaceutical industry demands the highest standards of quality as defined by design, materials, workmanship, GMP, accuracy, usability, security and reliability. Since these same qualities have been the guiding principles since All-Fill was founded in 1969, it is no coincidence that this important sector accounts for an increasingly significant proportion of All-Fill’s total production.
All-Fill is able to meet the widest range of customer requirements, from individual machines to complete turn-key lines, from fine fluffy sticky powders through to free-flowing granules, all with the option of fully integrated weight control systems. All-Fill support includes a full validation documentation package, with protocols and experienced personnel to assist with installation and operation qualifications.

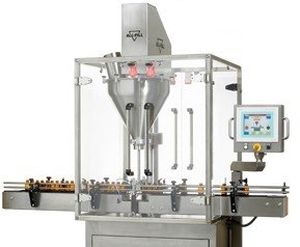

Supplied as standard with a lift mechanism for neck-entry dust-free filling of fine powders and vibration for settling of granular products. Conveyor bed and system frame GMP designed for ease of cleaning. The photograph on the left below shows a Series 100 in-line machine filling dry suspension antibiotics, 20g to 60g, into narrow-neck glass bottles at up to 30 per minute, with neck location for precise neck-entry lift. The photograph on the right below shows an integrated unscrambling filling and stoppering system in fully sealed glove-box enclosure for precise gravimetric filling of biological analysis samples into vials and small bottles.
|
|
|
|
|
|
Uhlmann presents a world first.The Integrated Bottle Center 200, referred to as IBC 200, offers pharmaceutical manufacturers a new dimension in efficiency, flexibility and ease of operation when packaging tablets or capsules in bottles.
We proudly present a new machine generation that has been developed strictly in compliance with pharmaceutical factors: an integrated bottling line that smoothly links all key functions. Take a look at the following pages and see what potential the Integrated Bottle Center 200 has to offer for your production
Innovative:
guided bottle transport using feed screws
Efficient:
no ramp-up phase after format changeover, no micro-stops
GMP-compliant:
easy-to-clean, bench-like design with optimum accessibility
Networked:
one central user interface for all functions of the IBC 200
Accurate:
100% counting accuracy thanks to innovative drive concept of the electronic tablet counting module
Safe:
for operator and product thanks to the completely enclosed system
Modular:
customized machine configurations
|
|
|
|
