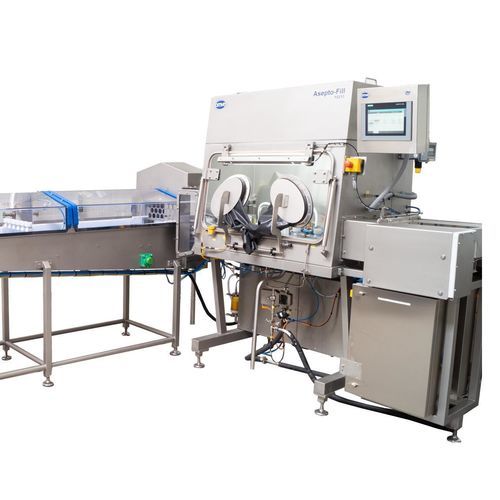

Automatic filling and capping machine FS215 Asepto-Fill®

for pharmaceutical productsvolumetricaseptic

Product overview
The OMVE FS215 Asepto-Fill® is an automated aseptic bottle filling system for precise volumetric dosing of pre-sterilized bottles within a controlled sterile environment. The unit executes an automated three-stage sequence—uncapping, volumetric filling, and re-capping—while maintaining a positive-pressure sterile isolation and validated nebulization for internal decontamination. Nominal throughput is 100-200 L/h depending on product and configuration. The system is designed for CIP/SIP cleaning cycles and single-operator use.

Unique features

• Integrated conveyor for automatic and continuous bottle feeding
• Aseptic isolation chamber with positive pressure
• Validated nebulization system for bottle and cabinet decontamination
• ULPA U17 HEPA filter compliant with EN1822
• Volumetric dosing control for accurate and repeatable fill volumes
• Automated three-stage process: uncapping, filling, re-capping
• CIP/SIP capability for cleaning and sterilization cycles
• Data logging system for monitoring and traceability of Critical Control Points
• Designed to operate with a single operator

Applications and benefits
The FS215 automates aseptic sampling and filling workflows used in pharmaceutical, biotechnology and diagnostics production and R&D. It improves process consistency, reduces manual handling, and ensures sterile integrity during sampling and filling operations. The machine supports validated cleaning/sterilization cycles and provides process data traceability to meet regulatory requirements.

Technical specifications

• Brand: OMVE
• Model: FS215 Asepto-Fill®
• Nominal capacity: 100-200 L/h (depending on product and configuration)
• Process sequence: automated uncapping, volumetric filling, re-capping
• Feeding: integrated conveyor for automatic bottle feeding
• Containment: aseptic isolation chamber with positive pressure
• Decontamination: validated nebulization system for bottles and internal cabinet
• Filtration: ULPA U17 HEPA filter (EN1822 compliant)
• Filling control: volumetric dosing control for precise fill volumes
• Cleaning/sterilization: CIP/SIP capable
• Data & traceability: data logging system for Critical Control Points monitoring and traceability
• Operator requirement: designed for single-operator operation
