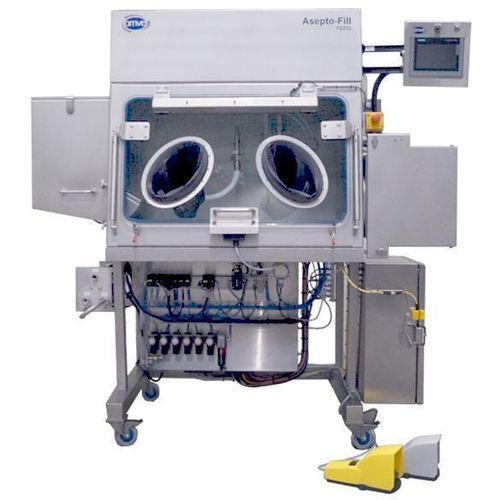

Semi-automatic filling and capping machine FS213 Asepto Fill®

for liquidsvolumetricaseptic

Product description
The OMVE FS213 Asepto Fill® is a semi-automatic isolator aseptic filler designed for laboratory and pilot-scale aseptic filling of nutraceuticals, functional beverages and pharmaceutical alternatives. The system combines SIP and automated chemical sterilization within an isolator envelope with uni-directional sterile downflow. Automated exterior bottle decontamination and a dedicated bottle transfer cabinet eliminate contamination risk during transfer into the filling chamber. Both cabinets are fully conditioned during production to reduce operational errors. Optional semi-automatic de-capping, filling and capping enables line capacities up to 100 L/hr for filling volumes typically between 100–500 mL.

Unique features

• Isolated filling chamber maintained at positive pressure with uni-directional downflow of sterile air
• Automated chemical decontamination via fogging (hydrogen peroxide or peracetic acid)
• SIP integration with smart monitoring and data logging of Critical Control Points for traceability and validation
• Integrated de-capping and capping units for semi-automatic operation
• Automated volumetric dosing for accurate and repeatable fills
• Compatible with a wide range of pre-sterilized containers (100–500 mL)
• PLC supervision and user-controlled operation for process security
• Sterility validated in accordance with ISO 11138

Downloads

• OMVE-FS213-Asepto-Fill® & FS214 Asepto-Fill® Semi-Automatic Aseptic Filling Machines (product brochure)
• Filling & Closing Range (product range brochure)

Technical specifications

• Brand: OMVE
• Model: FS213 Asepto Fill®
• Type: Semi-automatic isolator filler
• Application: Cold aseptic filling for nutraceuticals, functional beverages and laboratory-scale pharmaceutical alternatives
• Sterilization: SIP and automated chemical sterilization (H2O2 or peracetic acid fogging)
• Decontamination: Automated exterior bottle fogging
• Filling capacity: Up to 100 L/hr (semi-automatic configuration)
• Filling volume range: 100–500 mL (pre-sterilized containers)
• Chamber environment: Positive pressure isolator with uni-directional downflow
• Traceability & control: Smart monitoring of Critical Control Points, SIP cycle data logging, PLC supervision
• Accessories: Bottle transfer cabinet for handling different sizes and styles; both cabinets conditioned during production
• Compliance: Sterility validation in accordance with ISO 11138
