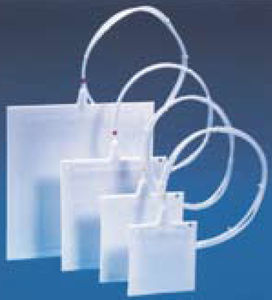

Flexible heating mat
Heating aluminium foils are used to warm and/or keep warmed small areas or industrial process parts ; cuttings out can be done to help perfect fitting to the part to heat ; optional adhesive backing can be added for easy and rapid fitting.
Applications :
. Industry : To warm surfaces and volumes (freeze industry, electronics, automotive, antennas, tables...).
. Household appliances : Heating elements for domestic equipments (refrigerators, freezers, plate-warmer, heating baskets...).
. Horticulture : plant-cutting, propagation, forcing.
Flexibility of 3A heating cables, cutting up and forming of aluminium allow elaboration of various forms of heating mats.
heat-glued wires on aluminium sheet :
Insulation : PVC
. Maximum maintenance temperature (power ON) : 65 °C
. Maximum exposure temperature (power OFF) : 105 °C
. Maximum load : 500 W /m2
. Supply voltage : up to 500 V
Options :
. Self-adhesive foil.
. Cold leads integrated without unnoticeable junctions.
heat-welded wires between 2 aluminium sheets :
Insulation : PVC
. Maximum maintenance temperature (power ON) : 65 °C
. Maximum exposure temperature (power OFF) : 105 °C
Insulation : TPE
. Maximum maintenance temperature (power ON) : 110 °C
. Maximum exposure temperature (power OFF) : 150 °C
. Supply voltage : up to 500 V
. Maximum load : 2000 W /m2
Options :
. Self-adhesive foil.
. Heat protector.
. Earthing.
|
|
Applications:
These can be fabricated for use in warming tables, cabinets heaters, cooling tables, heating plates for form carriers or even radiating heaters for household use.
|
|
| ... products without technical information |
| |
|
|
|
|
CPAC Microplate
The INHECO CPAC Microplate is a compact heated and cooled position, built into the deck or ALP of a liquid handling system. Compact footprint and overall height, most SBS listed disposable can be fitted. The system is also suited for the heating and cooling of tubes and other probe formats. The unit is ready to install, CE and UL certified. A thermal fuse provides extra protection from overheating.
Power supply, temperature setting and control of the CPAC Microplate is performed through an INHECO TEC Control unit, please refer to the seperate TEC Control data sheet. Various types of aluminum adapter plates to match the required disposable are available. Adapter plates and positioner can be easily taken down for cleaning, or changed to another configuration within minutes.
The CPAC Microplate is mostly used on robotic platforms and systems in Lab Automation, primarily:
Beckman: Biomek FX, NX
Protedyne: BioCube
Caliper: Sciclone
The following variants are available:
Product Article Dimensions W x D x H (mm) Weight Temperature Range
CPAC Microplate 7000079 89x128x102mm 1,0kg +4ºC to +70ºC
CPAC Microplate HT 7000095 89x128x105mm 1,0kg +4ºC to +90ºC
CPAC Microplate 2-TEC 7000068 89x128x112
|
|
| ... products without technical information |
| |
· Definition : 200 °C heating plate for all applications.
· Construction : heating plate in rectified duraluminium, covered with PTFE
(Polytetrafluoroethylene, Teflon). Exterior housing in stainless steel.
· Insulation : thermal separator in stainless steel.
· Heating : heating components distributed throughout the heating surface.
· Electricity : Single-phase 230V, 50Hz.
· Regulation : PID temperature controller. Digital setting of temperature.
· Safety : built-in alarm and fixed over-heating limiter.
· Documentation : certification CE and operating instructions in English.
|
|
|
|
|
|
The INHECO Measurement Plate (IMP) is a compact and precise measurement tool in SBS format for verifying the temperature and / or shaking performance of INHECO's heating, cooling, incubation and shaking devices used in Lab Automation applications.
The cordless design allows a flexible use of the IMP, even measurements in closed systems, e.g. incubators are possible. The IMP can be handled by all common gripper systems which gives the opportunity to automate the whole verification / validation process.
Data Storage
The measurement data are stored on an internal EEPROM and can be transferred via USB or built-in IrDA interface to an external PC for evaluation and analysis. To enlarge the data storage capability, the IMP can be equipped with an additional μSD memory card. The measurement profile can be easily pre-adjusted for each run, by connecting the IMP via interface to the INHECO IMP software. Parameters like "measurement duration", "scan interval forsensors", etc.can be set and adjusted individually.
|
|
|
|
|
|
The Variomag Teleshake is one of the most compact heated shaking positions for a wide range of standard SBS plates and tubes. The Teleshake can be placed on the deck of liquid handling systems with the lowest possible consumption of space. It combines excellent control of temperature and fluid mixing to guarantee an state-of-the-art quality of chemical reactions. Shaking curves are linear and orbital.
The Variomag Teleshake comes together with a precise temperature and shaker control with integrated power supply. Software and verification tools are available to form a complete thermal solution for all kind of incubation applications. The unit is a plug-and-play high performance heating device with CE and UL certification.
It is mainly used on robotic platforms and systems in LabAutomation, primarily:
Beckman: Biomek 2000, 3000, FX, NX
Caliper: Sciclone, Zephyr
Hamilton: Star
Perkin Elmer: Janus, Multiprobe II
Protedyne: BioCube
Tecan: Freedom, Freedom EVO, Genesis, TEMO
Xiril: 75, 100, 150 Series
|
|
|
|
|
|
The Variomag Teleshake is one of the most compact heated shaking positions for a wide range of standard SBS plates and tubes. The Teleshake can be placed on the deck of liquid handling systems with the lowest possible consumption of space. It combines excellent control of temperature and fluid mixing to guarantee an state-of-the-art quality of chemical reactions. Shaking curves are linear and orbital.
The Variomag Teleshake comes together with a precise temperature and shaker control with integrated power supply. Software and verification tools are available to form a complete thermal solution for all kind of incubation applications. The unit is a plug-and-play high performance heating device with CE and UL certification.
It is mainly used on robotic platforms and systems in LabAutomation, primarily:
Beckman: Biomek 2000, 3000, FX, NX
Caliper: Sciclone, Zephyr
Hamilton: Star
Perkin Elmer: Janus, Multiprobe II
Protedyne: BioCube
Tecan: Freedom, Freedom EVO, Genesis, TEMO
Xiril: 75, 100, 150 Series
|
|
|
|
