Faster Production - spindles operating at constant speeds from 25,000rpm to 90,000rpm up to 1.4HP, maintaining constant high speed under variable load with no gears, vanes, or brushes.
Over 40 spindles - easily mounted, maintenance free, requiring no lubrication, provide a finer finish and faster feed rates.
Patented low vibration, super quiet, oil-free, direct drive spindles for faster production and greater durability. Integrated CAT, BT, HSK, and DIN toolholders available for increased accuracy. |
|
High-Speed Jig Grinder (Air System) :
- Suitable for internal grinding jig borer, jig milling machine and lathes.
- Can be used for the high-speed rotating portions of various kinds of special purpose machines. |
|
SMS Series :
-40,000 min-1 Max.output 60W
-Up to 4mm shank tooling can be used
-Ultra-Precision, Angular bearings to maximize rigidity
Bantam Series :
-BANTAM150 Max.15,000min-1 Max. Output 132W
-BANTAM250 Max.26,000min-1 Max. Output 105W
HTS series :
- Negligible spindle expansion
- Very High Feed Rates are possible
- Spindle Accuracy is within 1 µm |
|
MS Series Motors
Features
In spite of the small body diameter, high output power is achieved.
The outer housing is made of stainless steel(SUS416) with a high-accuracy,ground finish(0/-0.01mm)
No heat is generated for long continuous use due to air driven operation.
By mounting a silencer on the back-air tubing, the quiet operation of air turbine is remarkably improved. |
|
Constant high speed and torque under load, make this series ideal for robotic finishing or milling metals, or cutting plastics, ceramics, composites or wood.The HD Series incorporates heavy-duty bearings within a ridgid stainless steel housing which may be fixture mounted easily.
Units generate up to 1.4 HP with governed constant high speed and no gears or vanes to lubricate or repair. These reliable motors have fewer moving parts and need fewer repairs. Cleaner cutting action, more IPM's. A light and compact solution with low vibration and weight. Oil free and maintenance free operation. |
|
Robot deburring solutions
Intelligent solutions to save time and costs
Have a look at our Videos !
As insider, you know that being at the cutting edge of automation is crucial in special machine construction. When installing pneumatic spindles and build-in motors by MANNESMANN DEMAG Drucklufttechnik KG , you can be sure that state-of-the-art technology, maximum reliability and serious top-rate quality will bring the key advantages to your automation
process.

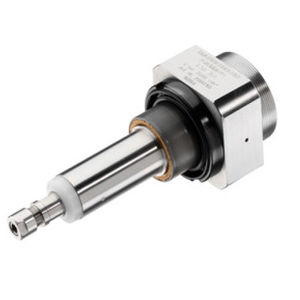

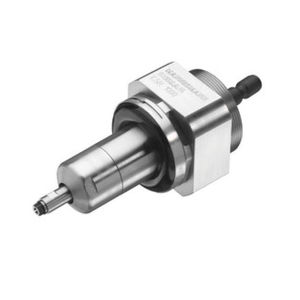

Robot tools for deburring
Our product range offers tailor made solutions for fettling and deburring of different materials. The cutting-edge programm offers problem solving solutions like
- High revolution speed deburring and grinding spindles for robots
- brushing motors for robots
- filing tools for robots
- countersinks for robots
- angle -countersinks for robots working in difficult to access areas
- angle grinders and angle brushing motors for robots
- grinding spindles with compliance for robots and CNC machines
The revolution speed range varies from 100.000 to 120 rpm.
Call us now!
Besides a wide standard product range we offer innovative customized solutions with different revolution speeds, turning directions and power ranges upon request. |
|
|
|
