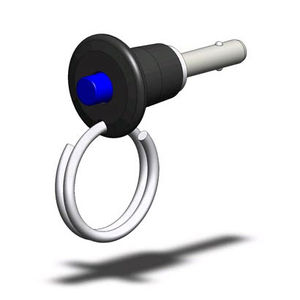

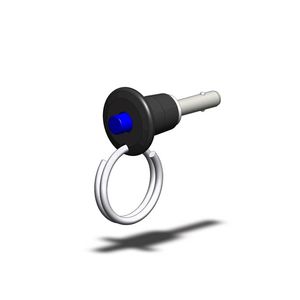

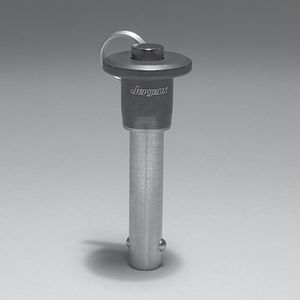

Button Handle (Metric)
Kwik-LokTM Pins are manufactured in a wide range of sizes to meet any application. We offer short lead times for special sizes. Available in 5 handle styles, inch or metric, and in carbon steel and stainless steel. Button Handle configuration is ideal for applications that have limited space.
Handle is black anodized, machined aluminum.
Button is blue anodized aluminum.
Material: Carbon Steel or Stainless Steel
Handle Finish: Black anodized
Includes a ring for easy attachment of option lanyard.
|
|

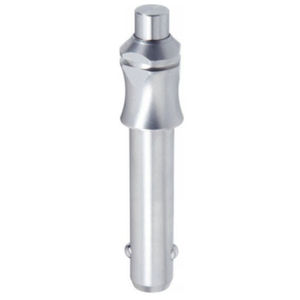

Heavy Duty Button Handle (Metric)
Kwik-LokTM Pins are manufactured in a wide range of sizes to meet any application. We offer short lead times for special sizes or features. Available in various handle styles, inch or metric sizes, and in carbon steel and stainless steel. Button Handle configuration provides a firm, even grip for smooth comfortable operation.
Heavy Duty solid handle provides additional impact resistance.
Material: Stainless Steel provides additional corrosion resistance
Handle Finish: Stainless Steel
Meets or exceeds NASM 23460 specifications
Includes a ring for easy attachment of option lanyard.
2D, 3D, 3D solid model drawings available for download.
|
|

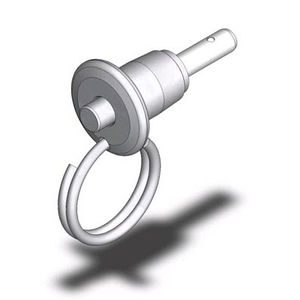

Ring Handle (Metric)
Kwik-LokTM Pins are manufactured in a wide range of sizes to meet any application. We offer short lead times for special sizes. Available in 5 handle styles, inch or metric, and in carbon steel and stainless steel. The Ring Handle configuration is designed for applications which require a small clearance area around the pin.
Handle is machined aluminum.
Button is blue anodized aluminum.
Material: Carbon Steel or Stainless Steel
Includes ring for easy attachment of option lanyard.
2D, 3D, and 3D solid model drawings available for download. (1 inch grip length)
|
|

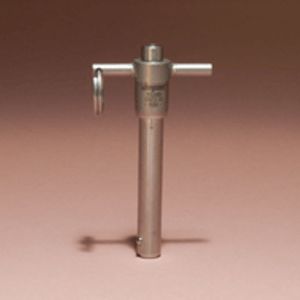

Double Acting T-Handle (Metric)
Double Acting Pins are activated by push or pull motion
All stainless steel construction provides additional corrosion resistance
Ideal for quick insertion and removal
Four ball options available upon request
Meets or exceeds NASM 23460 specifications
Meets or exceeds design specifications MS17988, MS17989, MS 17990
Drive Out feature available upon request
|
|
Precision alignment pin with a ground shank. This popular single-acting type is positive locking until released by pushing the button, which moves the centre spindle forward to allow the locking balls to retract into a radial groove. This type has the widest range of types and sizes. Available in steel or stainless steel.
|
|
|
|
|
|
This product family covers the following article groups:
- EH 2235. Lifting Pins (Steel / Stainless Steel 1.4305)
- EH 2235. Locating Bushes for lifting pins

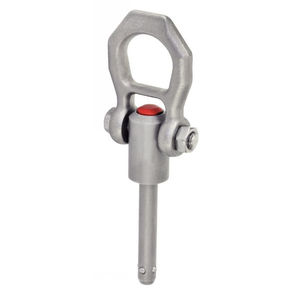

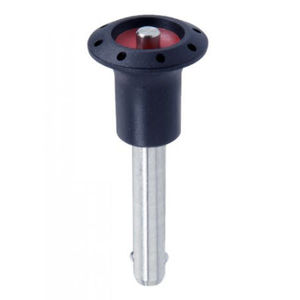

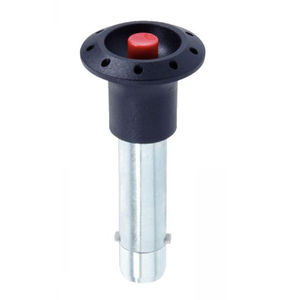

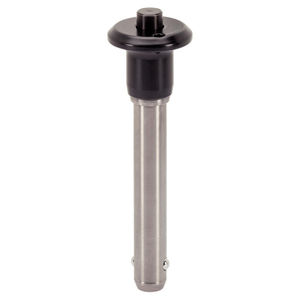

Ball Lock Pins
- EH 2237. / 2238. simple finish (Stainless Steel 1.4305 / 1.4542)
- EH 2237. / 2238. with elastic grip (Stainless Steel 1.4305 / 1.4542)
- EH 2237. / 2238. with plastic grip (Stainless Steel 1.4305 / 1.4542)
- EH 2236. Clamping Pins (Stainless Steel 1.4305)
- EH 2240. Socket Pins (Stainless Steel 1.4305)
- EH 2240. Retaining Cables
- EH 2240. Locating Bushes for ball lock pins (Stainless Steel 1.4305)
The Ball Lock Pins by Halder for Connecting, Attaching, Positioning, Fixing, Holding, Securing, Lifting, Bolting, Interlocking, Adjusting …
With a wide product range and many years' experience in manufacturing including made to order, Halder offers the right solution for many applications in virtually every sector of industry:
- Mechanical engineering, tool-making and automotive
- Prefabrication and tank construction
- Fixtures and workshop fittings
- Industrial handling
- Hoists, platforms, racks and scaffolding
- Sport and rehab devices and equipment
- Medial applications
- Aviation…

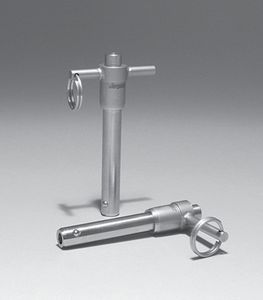

In addition to the metric version we have also the product line “Flight-Pins”. This Ball Lock Pins in inch dimensions are according to aviation standard NASM (MS 17984 – MS 17990)
single acting
- EH 4210. with Button Handle (MS17984)
- EH 4211. with T-Handle (MS17985)
- EH 4212. with L-Handle (MS17986)
- EH 4213. with Ring (MS17987)
double acting
- EH 4214. with T-Handle (MS17988)
- EH 4215. with L-Handle (MS17989)
- EH 4216. with Ring (MS17990)
|
|
|
|
|
|
Material:
- Bolt stainless steel 1.4542.
- Mushroom knob and push button Stainless steel 1.4305.
- Balls Stainless steel 1.4125.
- Compression spring Stainless steel.
Surface finish:
- Bolt, hardened min. 40 HRC and passivated.
- Passivated mushroom knob and push button.
- Balls hardened HRC 58+4 and passivated.
- Passivated compression spring
Note:
Ball locking bolts are used for fast and easy fixing and joining of parts and workpieces. The two balls can be disengaged by depressing the push button, so that the parts to be joined can be pegged. When the push button is released the balls lock the connection safely and permanently. If required, the ball locking bolts can be provided with a holding rope.
The bolt made of high-strength, hardened stainless steel is suitable for extreme loads and provides a very high level of wear protection. Thanks to the high corrosion and acid resistance, they are mainly used in the foodstuff industry, in the chemical and petrochemical industry and as constructional elements in the aerospace industry.
Shearing force double-edged (F) = S · Tau aB max.
Accessory:
Key Ring 03199-15/19/23
Restraining Cable with eye 03199-....
|
|
Kwik-LokTM Pins are manufactured in a wide range of sizes to meet any application. We offer short lead times for special sizes. Available in 5 handle styles, inch or metric, and in carbon steel and stainless steel. Button Handle configuration is ideal for applications that have limited space.
Handle is black anodized, machined aluminum.
Button is blue anodized aluminum.
Material: Carbon Steel or Stainless Steel
Handle Finish: Black anodized
Includes a ring for easy attachment of option lanyard.
2D, 3D, and 3D solid model drawings available for download. Click here to select and download solid models/drawings
Note: For best results downloading files, press your right mouse button and select 'Save Target As' or 'Save Link As'
|
|
Jergens offers a wide range standard pins made to order in various sizes and configurations.
Jergens is also capable of making special pins in large and small quantities to meet your unique design requirements.

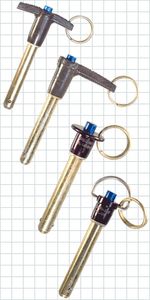

A wide range of Mil-Spec pins are available from MS 17984 - MS 17990, MIL-P-45952/1
|
|

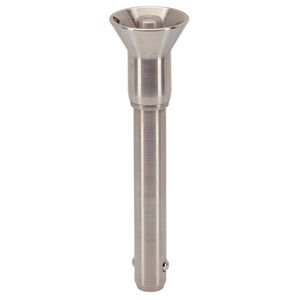

Recessed Button Handle (Metric)
Kwik-LokTM Pins are manufactured in a wide range of sizes to meet any application.We offer short lead times for special sizes. Available in 5 handle styles, inch or metric, and in stainless steel.
The Recessed Button Handle design helps prevent accidental actuation of the button.
Handle is stainless steel.
Button is stainless steel.
Material: Stainless Steel
Includes ring for easy attachment of option lanyard.
|
|
Ball type pins
The ball type pins are used for all applications requiring the hand to be quickly removed after insertion or shifting.
The ball type pins are fitted and removed quickly, without tools and using one hand only.
Numerous dimensions are available in metric or American units.

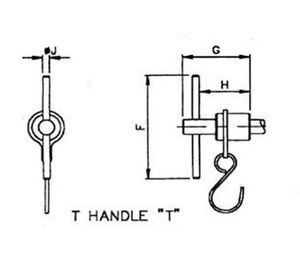

5 types of head are available: T or L shapes, knob, protected knob or ring.
|
|

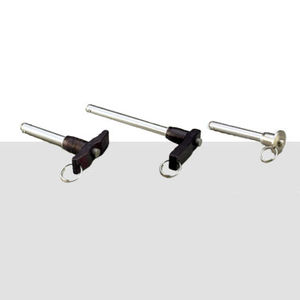

Quick Release Pins - Metric
WDS250
Black cast aluminium T-handle
Blue anodised aluminium buttonStainless Steel Body
(SAE AMS 5643)
Includes hole and ring for easy attachment of optional chain or lanyard.
Other styles available
Carbon steel available
Quick Release Pins - Imperial
WDS250
Black cast aluminium T-handle
Blue anodised aluminium button Stainless Steel Body
(SAE AM5 5643)
Includes hole and ring for easy attachment of optional chain or lanyard.
Other styles available
Carbon steel available
|
|
Button Handle (Metric)
Kwik-LokTM Pins are manufactured in a wide range of sizes to meet any application. We offer short lead times for special sizes. Available in 5 handle styles, inch or metric, and in carbon steel and stainless steel. Button Handle configuration is ideal for applications that have limited space.
Handle is black anodized, machined aluminum.
Button is blue anodized aluminum.
Material: Carbon Steel or Stainless Steel
Handle Finish: Black anodized
Includes a ring for easy attachment of option lanyard.
|
|
Heavy Duty Button Handle (Metric)
Kwik-LokTM Pins are manufactured in a wide range of sizes to meet any application. We offer short lead times for special sizes or features. Available in various handle styles, inch or metric sizes, and in carbon steel and stainless steel. Button Handle configuration provides a firm, even grip for smooth comfortable operation.
Heavy Duty solid handle provides additional impact resistance.
Material: Stainless Steel provides additional corrosion resistance
Handle Finish: Stainless Steel
Meets or exceeds NASM 23460 specifications
Includes a ring for easy attachment of option lanyard.
2D, 3D, 3D solid model drawings available for download.
|
|
Ring Handle (Metric)
Kwik-LokTM Pins are manufactured in a wide range of sizes to meet any application. We offer short lead times for special sizes. Available in 5 handle styles, inch or metric, and in carbon steel and stainless steel. The Ring Handle configuration is designed for applications which require a small clearance area around the pin.
Handle is machined aluminum.
Button is blue anodized aluminum.
Material: Carbon Steel or Stainless Steel
Includes ring for easy attachment of option lanyard.
2D, 3D, and 3D solid model drawings available for download. (1 inch grip length)
|
|
Double Acting T-Handle (Metric)
Double Acting Pins are activated by push or pull motion
All stainless steel construction provides additional corrosion resistance
Ideal for quick insertion and removal
Four ball options available upon request
Meets or exceeds NASM 23460 specifications
Meets or exceeds design specifications MS17988, MS17989, MS 17990
Drive Out feature available upon request
|
|
Precision alignment pin with a ground shank. This popular single-acting type is positive locking until released by pushing the button, which moves the centre spindle forward to allow the locking balls to retract into a radial groove. This type has the widest range of types and sizes. Available in steel or stainless steel.
|
|
|
|
|
|
This product family covers the following article groups:
- EH 2235. Lifting Pins (Steel / Stainless Steel 1.4305)
- EH 2235. Locating Bushes for lifting pins
Ball Lock Pins
- EH 2237. / 2238. simple finish (Stainless Steel 1.4305 / 1.4542)
- EH 2237. / 2238. with elastic grip (Stainless Steel 1.4305 / 1.4542)
- EH 2237. / 2238. with plastic grip (Stainless Steel 1.4305 / 1.4542)
- EH 2236. Clamping Pins (Stainless Steel 1.4305)
- EH 2240. Socket Pins (Stainless Steel 1.4305)
- EH 2240. Retaining Cables
- EH 2240. Locating Bushes for ball lock pins (Stainless Steel 1.4305)
The Ball Lock Pins by Halder for Connecting, Attaching, Positioning, Fixing, Holding, Securing, Lifting, Bolting, Interlocking, Adjusting …
With a wide product range and many years' experience in manufacturing including made to order, Halder offers the right solution for many applications in virtually every sector of industry:
- Mechanical engineering, tool-making and automotive
- Prefabrication and tank construction
- Fixtures and workshop fittings
- Industrial handling
- Hoists, platforms, racks and scaffolding
- Sport and rehab devices and equipment
- Medial applications
- Aviation…
In addition to the metric version we have also the product line “Flight-Pins”. This Ball Lock Pins in inch dimensions are according to aviation standard NASM (MS 17984 – MS 17990)
single acting
- EH 4210. with Button Handle (MS17984)
- EH 4211. with T-Handle (MS17985)
- EH 4212. with L-Handle (MS17986)
- EH 4213. with Ring (MS17987)
double acting
- EH 4214. with T-Handle (MS17988)
- EH 4215. with L-Handle (MS17989)
- EH 4216. with Ring (MS17990)
|
|
|
|
|
|
Material:
- Bolt stainless steel 1.4542.
- Mushroom knob and push button Stainless steel 1.4305.
- Balls Stainless steel 1.4125.
- Compression spring Stainless steel.
Surface finish:
- Bolt, hardened min. 40 HRC and passivated.
- Passivated mushroom knob and push button.
- Balls hardened HRC 58+4 and passivated.
- Passivated compression spring
Note:
Ball locking bolts are used for fast and easy fixing and joining of parts and workpieces. The two balls can be disengaged by depressing the push button, so that the parts to be joined can be pegged. When the push button is released the balls lock the connection safely and permanently. If required, the ball locking bolts can be provided with a holding rope.
The bolt made of high-strength, hardened stainless steel is suitable for extreme loads and provides a very high level of wear protection. Thanks to the high corrosion and acid resistance, they are mainly used in the foodstuff industry, in the chemical and petrochemical industry and as constructional elements in the aerospace industry.
Shearing force double-edged (F) = S · Tau aB max.
Accessory:
Key Ring 03199-15/19/23
Restraining Cable with eye 03199-....
|
|
Kwik-LokTM Pins are manufactured in a wide range of sizes to meet any application. We offer short lead times for special sizes. Available in 5 handle styles, inch or metric, and in carbon steel and stainless steel. Button Handle configuration is ideal for applications that have limited space.
Handle is black anodized, machined aluminum.
Button is blue anodized aluminum.
Material: Carbon Steel or Stainless Steel
Handle Finish: Black anodized
Includes a ring for easy attachment of option lanyard.
2D, 3D, and 3D solid model drawings available for download. Click here to select and download solid models/drawings
Note: For best results downloading files, press your right mouse button and select 'Save Target As' or 'Save Link As'
|
|
Jergens offers a wide range standard pins made to order in various sizes and configurations.
Jergens is also capable of making special pins in large and small quantities to meet your unique design requirements.
A wide range of Mil-Spec pins are available from MS 17984 - MS 17990, MIL-P-45952/1
|
|
Recessed Button Handle (Metric)
Kwik-LokTM Pins are manufactured in a wide range of sizes to meet any application.We offer short lead times for special sizes. Available in 5 handle styles, inch or metric, and in stainless steel.
The Recessed Button Handle design helps prevent accidental actuation of the button.
Handle is stainless steel.
Button is stainless steel.
Material: Stainless Steel
Includes ring for easy attachment of option lanyard.
|
|
Ball type pins
The ball type pins are used for all applications requiring the hand to be quickly removed after insertion or shifting.
The ball type pins are fitted and removed quickly, without tools and using one hand only.
Numerous dimensions are available in metric or American units.
5 types of head are available: T or L shapes, knob, protected knob or ring.
|
|
Quick Release Pins - Metric
WDS250
Black cast aluminium T-handle
Blue anodised aluminium buttonStainless Steel Body
(SAE AMS 5643)
Includes hole and ring for easy attachment of optional chain or lanyard.
Other styles available
Carbon steel available
Quick Release Pins - Imperial
WDS250
Black cast aluminium T-handle
Blue anodised aluminium button Stainless Steel Body
(SAE AM5 5643)
Includes hole and ring for easy attachment of optional chain or lanyard.
Other styles available
Carbon steel available
|
|
|
|
