The radial piston pumps consist of radially arranged, valve controlled pump cylinders. Higher delivery flows can be created by stacking of up to 6 radials on a common shaft. The pump is usually driven by an electric motor, which is connected with the pump by means of a bell housing and a coupling.
The closed pump housing permits "in tank" installation (hydraulic power pack) as well as the common external pump/ motor installation (pump with motor). The possibility of a radial piston pump with several pressure outlets (several equal or differing delivery flows) is particularly innovative.
Type RG utilizes slide bearings and is intended for extreme application conditions to increase the service life.
Complete hydraulic control systems can be created by directly mounting
various connection blocks and valve banks to the cover plate of the
hydraulic power pack.
|
|
The Moog RKP pump, is a radial piston pump that has served the industrial market for over two decades. This product is a proven design with high reliability and a large selection of control options. It is well-respected in the industry for its rapid response times, high volumetric efficiencies, low noise levels, compact size and robust design.
Available in 7 pump sizes between 19 cc and 140 cc per revolution, the RKP pump has maximum speed ranges of 1,800 to 2,900 rpm. High pressure versions and multiple pump arrangements are available.
Also available are other hydraulic products such as servovalves, servo-proportional valves, cartridge valves, directional valves,lintegrated hydraulic manifold systems, electronics and accessories.
Our pumps are known for long service life and when you need maintenance or repairs, ask for Moog Authentic Repair Services.
|
|
|
High volumetric efficiency. Self-priming and venting. Low pulsation. Low noise level. Long life. Specially suitable for demanding applications with continuous pressures up to 1000 bar. Combination with low pressure gear pumps possible.
|
|
Type PR4-Mini:
- Sizes 0.4 to 2.0
- Radial piston pump with 3 pistons
- Very compact build, hence installation-friendly dimensions
- 5 sizes

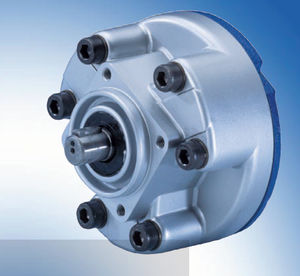

Type PR4:
- Sizes 1.6 to 20.0
- Radial piston pump with 3, 5 or 10 pistons
- Self-aspirating, valve-controlled
- Long bearing life due to hydro-dynamically lubricated plain bearings
- Several pressure ports with various cylinder combinations possible
- Optional combination with fixed and variable displacement vane and axial piston pumps
-14 sizes, favourable gradation for optimum matching to the application at hand
|
|
|
|
