EPIC® H-A 3

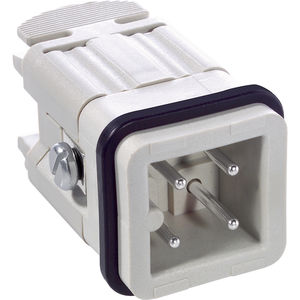

H-A Inserts with screw termination up to 2.5 mm² wire cross section; H-A 3 are used wherever space is at a minimum. Screw termination with straight cable entrance from the rear
Application range
Machine and apparatus construction
Control technology
Technical Data
Rated voltage in V
IEC: 400 V UL: 600 V CSA: 600 V
Rated impulse Voltage
4 kV
Rated current in A
IEC: 23 A UL: 10 A CSA: 10 A
Contact resistance
1.5 - 4 mOhm
Contacts
Copper alloy, hard silver plated
Number of contacts
3 + PE
Termination methods
Screw termination: 0.5 - 2.5 mm² (2.5 mm² with conductor end sleeves depends on the crimping profile)
Cycle of mechanical operation
100
Range of temperature
-40°C - +100°C, temporary up to +125°C
VDE tested
VDE-REG.-No. 437
Pollution degree
3
|
|
|
