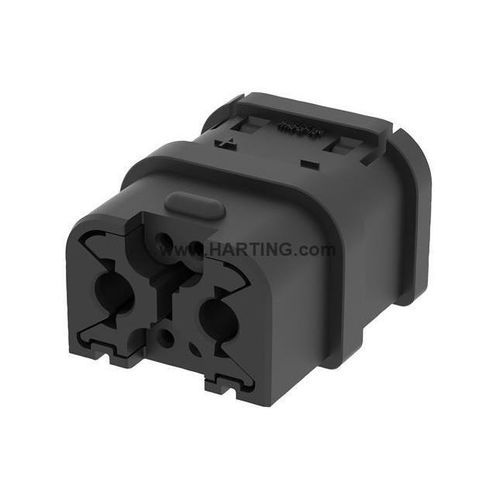

Combined connector Han MPC30_B_BS_2/4_F

dataelectrical power supplyrectangular

Overview
Connector set for Han MPC rectangular housings combining power and signal contacts for industrial applications. Designed for crimp termination; provides IP40 degree of protection in the mated condition.

Identification
Category: Connector sets
Series: Han MPC
Features: DroneCAN protocol

Version / Termination
Termination method: Crimp termination

• Please order crimp contacts separately.
• Must not be coupled or decoupled under electrical load.
• Processing and assembly must only be carried out by trained personnel.
• Basic insulation provided between power and signal contacts.
• Connector must not be powered in the unmated condition.

Material & Compliance
RoHS: compliant
ELV status: compliant
China RoHS: e
REACH Annex XVII substances: Not contained
REACH ANNEX XIV substances: Not contained
REACH SVHC substances: Not contained
California Proposition 65 substances: Not contained
Fire protection on railway vehicles: EN 45545-2 (2020-08) + A1 (2023-10)
Requirement set with Hazard Levels: R22 (HL 1-2); R23 (HL 1-3)

Commercial data
Packaging size: 10
Net weight: 7.04 g
Country of origin: India
European customs tariff number: 85389099
eCl@ss: 27440113 Rectangular connectors (set)

Technical specifications

• Conductor cross-section (power): 0.37 ... 4 mm²
• Conductor cross-section (signal): AWG 26 ... AWG 23
• Rated current (signal): 1 A
• Rated voltage (signal): 5 V
• Rated impulse voltage (signal): 0.5 kV
• Pollution degree (signal): 3
• Rated current (power): 30 A (general)
• Short-term current capability: max. 180 A for 10 s (Han-Yellock® 4 mm²)
• Rated voltage (power): 120 V DC
• Rated impulse voltage (power): 2.5 kV
• Pollution degree (power): 3
• Limiting temperature: -40 ... +90 °C
• Mating cycles: ≥ 500
• Degree of protection (IEC 60529): IP40 (mated condition)
