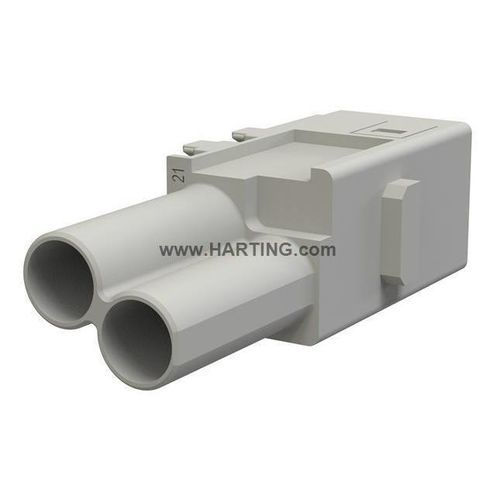

Data connector module Han-Mod_M_CC_2_F_C.2_PIT

electrical power supplywire-to-wirefemale

Product name
Han-Mod_M_CC_2_F_C.2_PIT

Key features

• Han® Domino CC Cube module (Domino module, Large Tab)
• Push-In termination (tool-free)
• Female contacts — 2 positions
• Conductor cross-section: 1.5 ... 6 mm²
• Rated current: 40 A; Rated voltage: 500 V
• Insert material: Polycarbonate (PC); Colour: RAL 7032 (pebble grey)

Description / Details
Compact modular insert for industrial connectors, designed for power and signal applications in enclosures and equipment. Image for illustration only — please refer to the technical data for precise specifications.

Classification / Module information
Category: Modules
Series: Han-Modular®
Type of module: Han® Domino CC Cube
Size of the module: Domino module
Description of the module: Large Tab

Version

• Termination method: Push-In
• Gender: Female
• Number of contacts: 2

Electrical / Mechanical

• Conductor cross-section: 1.5 ... 6 mm²
• Wire outer diameter: ≤6.3 mm
• Rated current: 40 A
• Rated voltage: 500 V
• Rated impulse voltage: 6 kV
• Pollution degree: 3
• Insulation resistance: >10^10 Ω
• Stripping length: 12 mm
• Temperature range: -40 ... +125 °C
• Mating cycles: ≥ 500

Material & Compliance

• Material (insert): Polycarbonate (PC); Colour (insert): RAL 7032 (pebble grey)
• Material flammability class acc. to UL 94: V-0
• RoHS / ELV: compliant; China RoHS: e
• REACH Annex XVII / ANNEX XIV / SVHC substances: Not contained
• California Proposition 65: Not contained
• Fire protection on railway vehicles: EN 45545-2 (R22, R23 — HL1–3)

Commercial / Packaging

• Packaging size: 2
• Net weight: 13.2 g
• Country of origin: Romania
• GTIN: 5713141113397
• Tariff code (EU): 85366990

Technical specifications

• Series: Han-Modular® — Han® Domino CC Cube (Domino module, Large Tab)
• Termination: Push-In; Gender: Female; Contacts: 2
• Conductor cross-section: 1.5 ... 6 mm²; Wire outer diameter: ≤6.3 mm
• Electrical ratings: 40 A / 500 V; Rated impulse voltage: 6 kV
• Operating temperature: -40 ... +125 °C; Mating cycles ≥ 500
• Material: Polycarbonate (PC), RAL 7032; UL94: V-0
