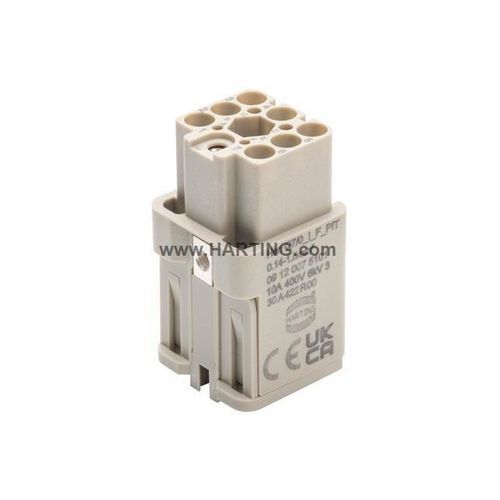

Electrical power supply connector module Han Q7/0_I_F_PIT_0.14-1.5mains power supplyrectangularfemale
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply, mains power supply
- Shape
- rectangular
- Connection type
- female, push-in
- Electrical characteristics
- voltage, current
- Material
- polycarbonate, copper, silver
- Primary current
10 A
- Voltage
400 V
- Operating temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)
Description
Product overview
Identification
Version & Mechanical data
Electrical characteristics
Environmental & mechanical characteristics
Material & compliance
Commercial data
- Category: Inserts (rectangular connector insert)
- Termination method: Push-In
- Gender: Female
- Material (insert): Polycarbonate (PC)
- Colour (insert): RAL 7032 (pebble grey)
- Rated current: 10 A
- Size: 3 A
- Number of contacts: 7
- Conductor cross-section: 0.14 ... 1.5 mm² (with wire end ferrule), 0.5 ... 1.5 mm² (without wire end ferrule)
- Contacts: Copper alloy, silver plated
Identification
- Category: Inserts
- Series: Han® Q
- Identification: 7/0
- Article No.: 09 12 007 5101
- GTIN: 5713140447912
Version & Mechanical data
- Termination method: Push-In
- Gender: Female
- Size: 3 A
- Number of contacts: 7
- PE contact: Yes
- Mating cycles: ≥ 500
Electrical characteristics
- Rated current: 10 A
- Rated voltage: 400 V
- Rated impulse voltage: 6 kV
- Insulation resistance: >10^10 Ω
- Pollution degree: 3
Environmental & mechanical characteristics
- Conductor cross-section: 0.14 ... 1.5 mm² (with wire end ferrule); 0.5 ... 1.5 mm² (without wire end ferrule)
- Limiting temperature: -40 ... +125 °C
- Mating cycles: ≥ 500
Material & compliance
- Material (insert): Polycarbonate (PC)
- Colour (insert): RAL 7032 (pebble grey)
- Material (contacts): Copper alloy
- Surface (contacts): Silver plated
- Material flammability class (UL 94): V-0
- RoHS: compliant
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII / ANNEX XIV / SVHC: Not contained
- California Proposition 65 substances: Not contained
- Fire protection on railway vehicles: EN 45545-2 (2020-08) + A1 (2023-10), requirement sets: R22 (HL 1-3), R23 (HL 1-3)
Commercial data
- Packaging size: 10
- Net weight: 20 g
- Country of origin: Romania
- European customs tariff number: 85389099
